GB Setting of the end positions

4.5. Setting of the end positions with setting switch/switch

Note:
Settings with a wired switch are only possible in automatic setting mode.
When connecting the setting switch for radio motors, consider the following:
Caution! Risk of injury through an electric shock!
Connection only when de-energised!
Warning!
The 5 wires in the setting switch cable must be connected to the motor wiring cable
according to their colours.
UP = grey
DOWN = black
N = blue
L1 = brown
PE = yellow-green
Caution: Always connect L1 (= brown) to the permanent voltage supply 230 V even if
the motor is only connected for adjustment purposes with a switch or a setting
switch.

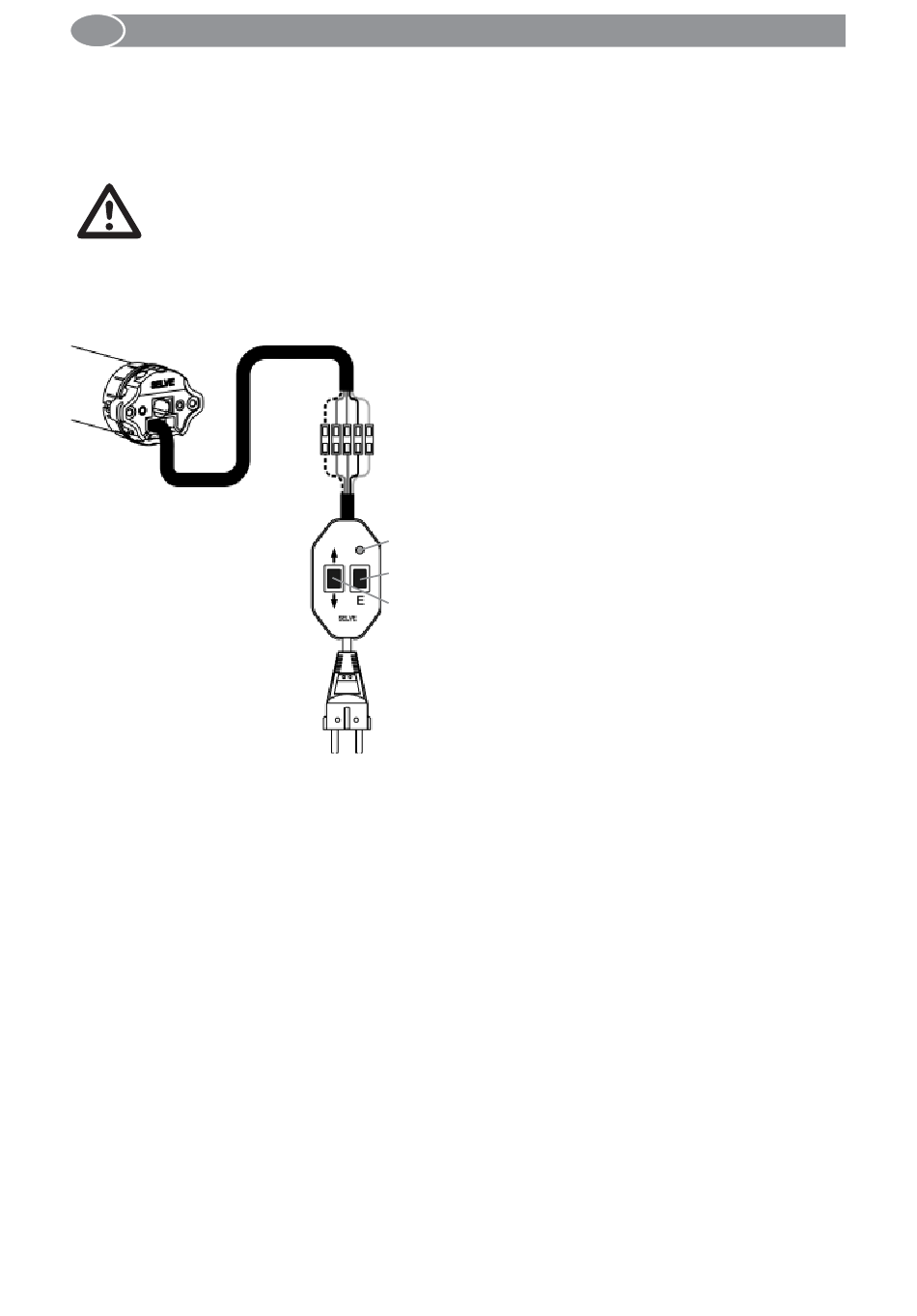

SELVE setting switch (item no. 290109)
LED indicates connection in correct phase sequence
Pushbutton E is the setting pushbutton
Pushbutton for moving the motor up and down
46
