7 Operation
NOTICE
• Consult the documentation for the welding components.

7.1 Switching on the system

1
1 Power-on lamp
Fig. 12 Switching on the system

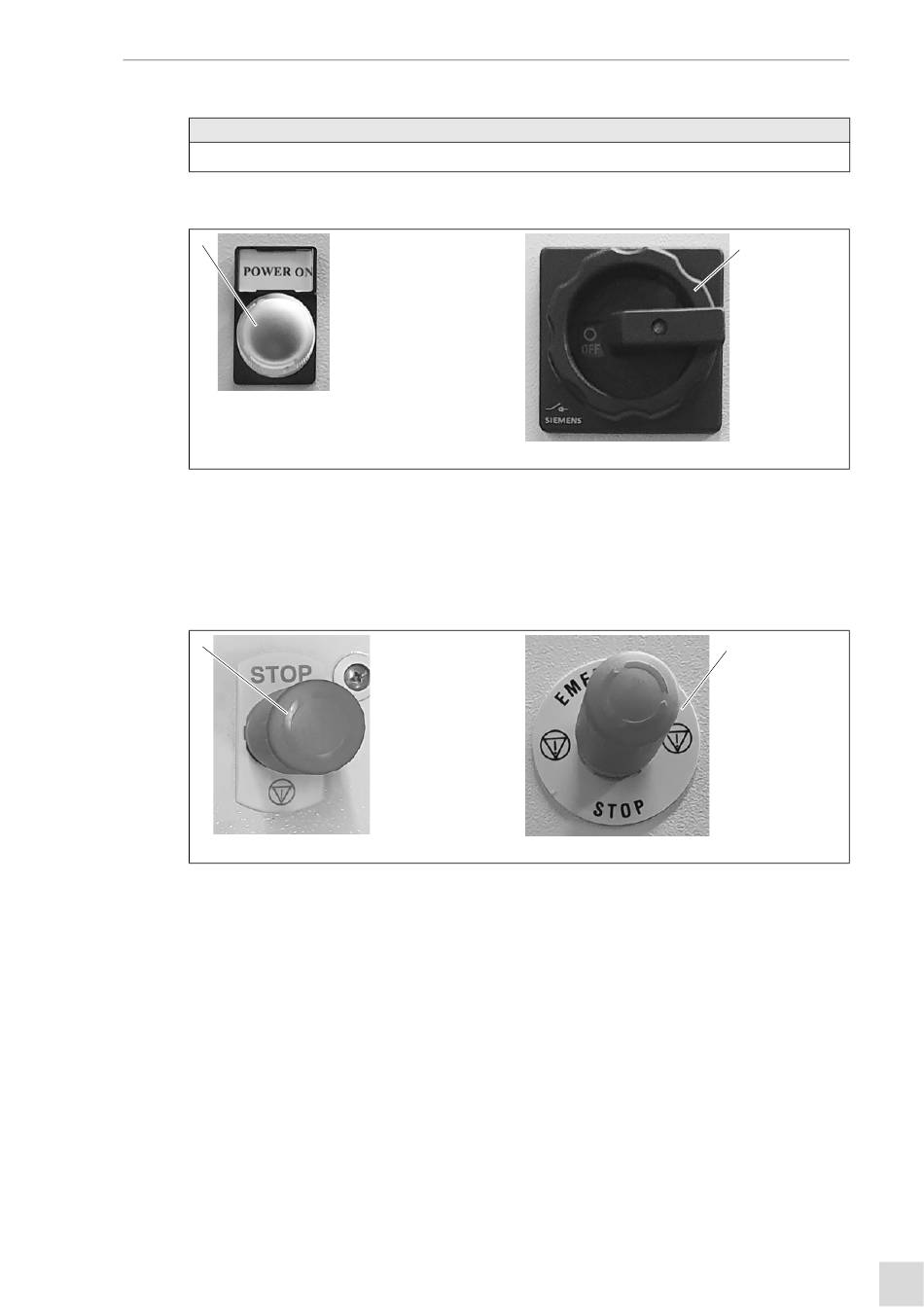

The power-on lamp (1) and main switch (2) are located on the left side of the control box.
The AutoGuide system is switched on via the main switch (2) and is displayed by the power-on lamp (1).
The power-on lamp (1) illuminates when the AutoGuide is switched on.
7.2 Emergency off button
1
1
Emergency off button on the operating panel
Fig. 13 Emergency off button
There is one emergency off button on the control box (2) and one on the operating panel (1).
When pressed, an emergency off signal is sent to the higher-level control.
The response time of the higher-level control is defined by the Setter/Operator.
The buttons remained locked until they are unlocked by turning the button in the direction of the arrow.
MON.0016.0 • 2021-02-05
2 Main switch
2
Emergency off button on the control box
