AutoGuide Plus
Travel test switch
Back
Tab. 14 Setup
The maximum correction speed for both axes must be adjusted to the current search tasks. Experiment to determine the speed
values.
If the speed is too low, the axes may not be able to correct large changes in position.
If the speed is too high, axis movements may occur around the correct position.
7.3.8 Report and message screen

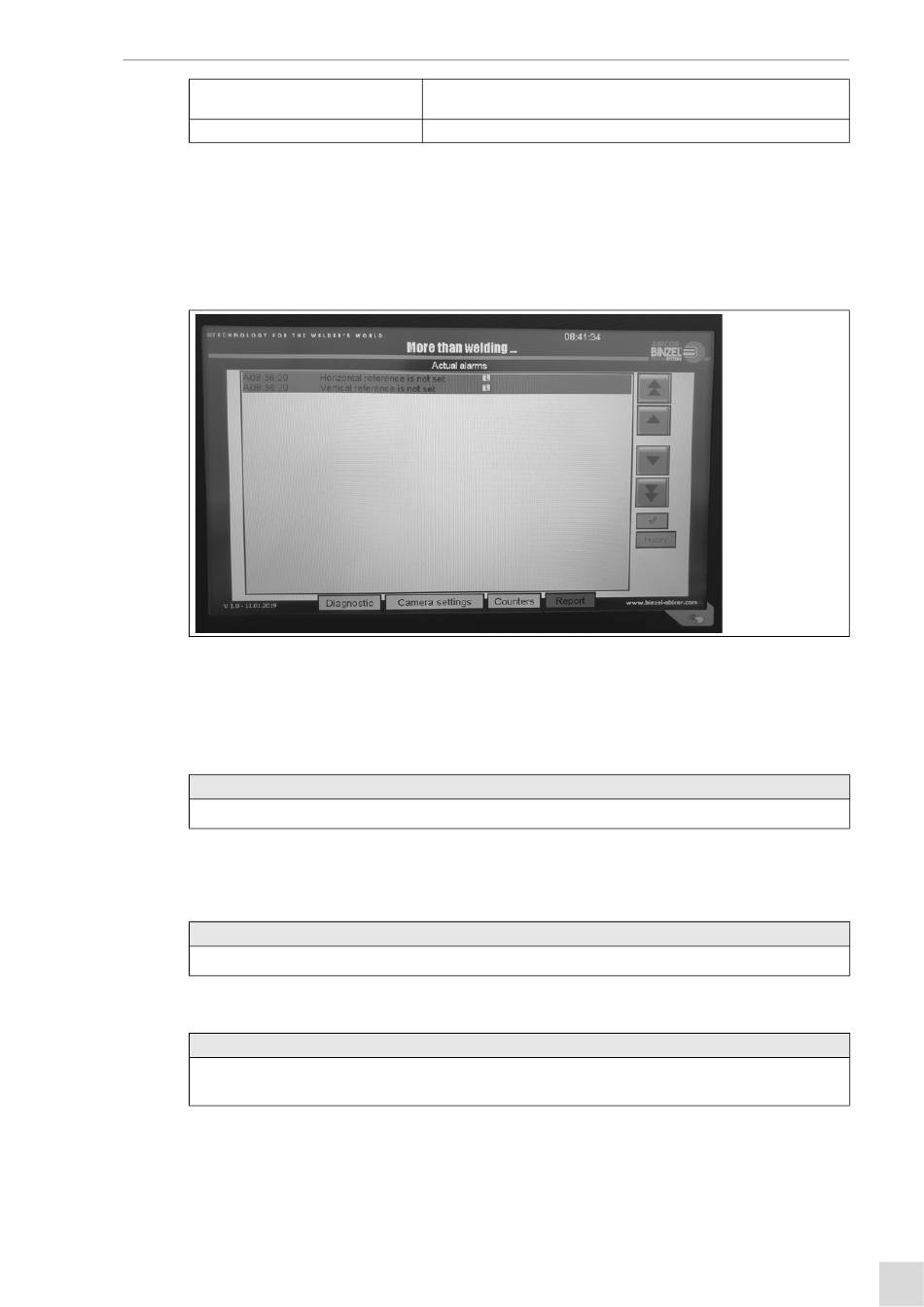

Fig. 23 Report and message screen
Displays all current error and warning messages.
Press the "History" button to show a list of confirmed error messages.
7.4 Establish power connection
NOTICE
• Establish an electrical connection by plugging the power plug into a socket.
 14.4 Circuit diagrams on page EN-27
8 Commissioning
NOTICE
• Only qualified personnel are permitted to perform work on the device or system.
9 Decommissioning
NOTICE
• When decommissioning the system, ensure that the procedures for switching off the welding components are
observed.
1 Stop the welding process.
2 Switch off the higher-level control.
MON.0016.0 • 2021-02-05
Tests the travel of the motors with a back and forth movement of 80 mm until
the button is pressed again.
Return to the diagnosis screen.
8 Commissioning
