14 Appendix
14.2 Fuse assignment
 Fig. 28 Circuit diagrams on page EN-27
14.3 Interface assignment

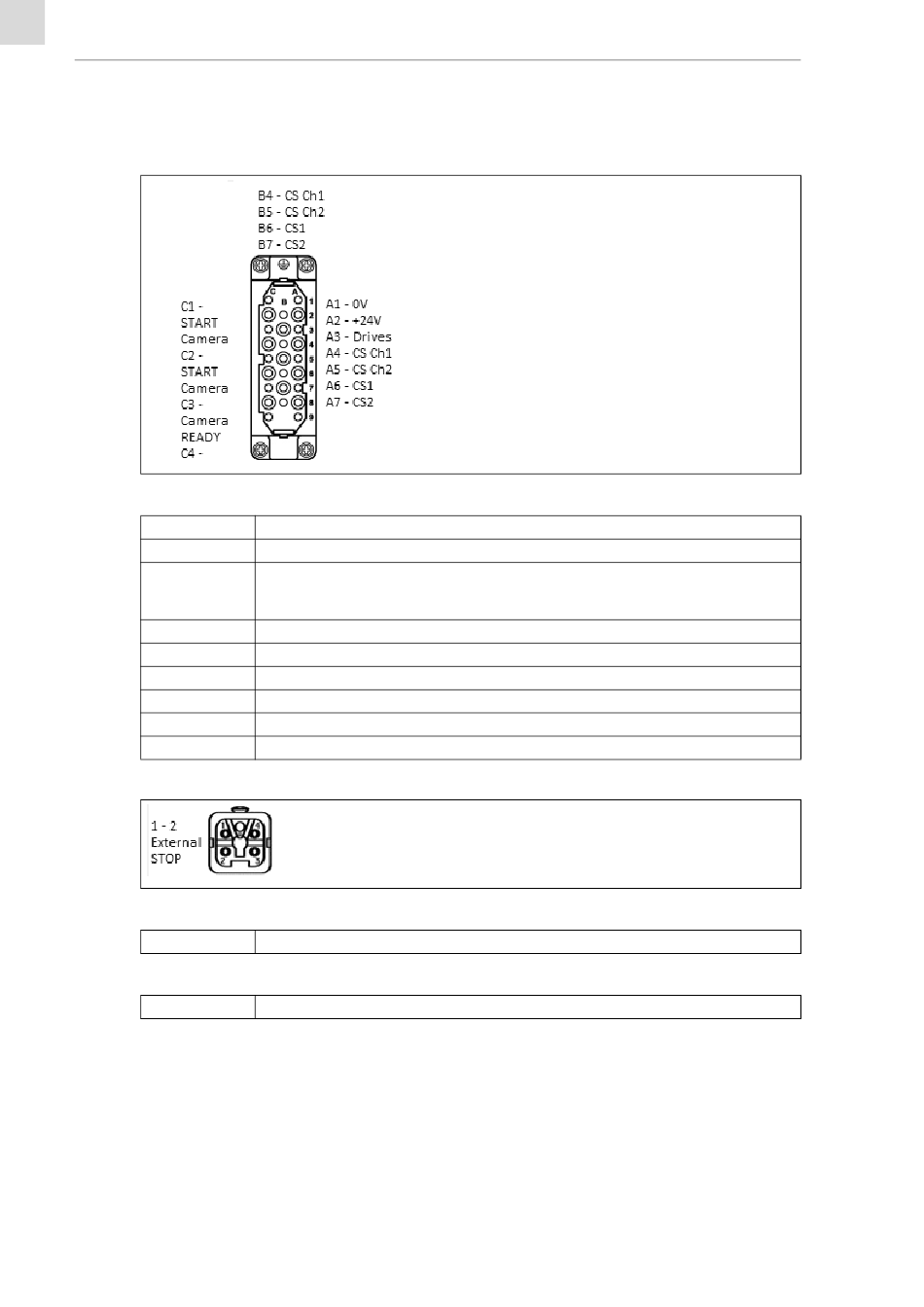

Fig. 26 KX1 plug
A1
A2
A3
A4 and B4
A5 and B5
A6 and B6
A7 and B7
C1 and C2
C3 and C4
Tab. 16 Pin assignment for KX1 plug
Fig. 27 KX2 plug
1 and 2
Tab. 17 Pin assignment for KX2 plug
RJ45 Ethernet
Tab. 18 Integrated RJ45 socket
EN - 26
Minus 0 V DC
+24 V DC (power supply +24 V DC)
Start signal
This can also be set by an external control system. There must be a contact from the A2+ switch to
the relay R1.
Emergency off. First channel of the emergency off circuit.
Emergency off. Second channel of the emergency off circuit.
Contact for emergency off circuit 1 from the emergency off button at the control box.
Contact for emergency off circuit 2 from the emergency off button at the operating panel.
Signal start for tracking. Contact from external control at relay KR2 to R1.
No contact from relay KR3 to R1. Signal to external control that the camera is in tracking mode
Stop BC contact for tracking. Can be used as an external stop.
To set the seam tracking system (TH6) with the THxdView software
