7 Operation
7.3.6 Screen diagnosis

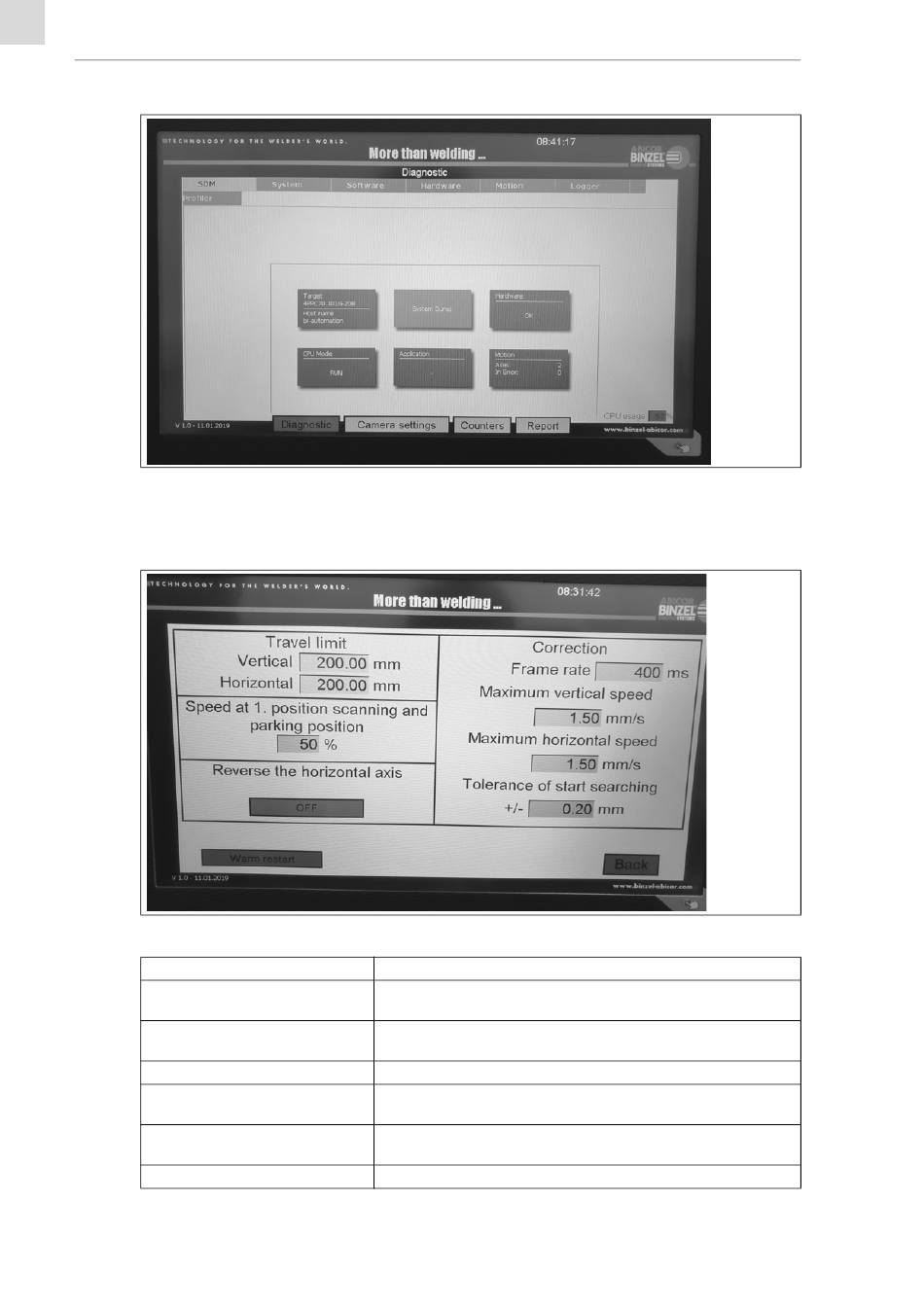

Fig. 21 Diagnosis

7.3.7 Screen setup

Press the "Diagnostic" button and the Binzel logo.
Fig. 22
Setup
Travel limit
Speed at 1. position scanning and
parking position
Reverse the horizontal axis
Correction
Maximum vertical speed
Maximum horizontal speed
Tolerance of start searching
Tab. 14 Setup
EN - 20
Vertical/horizontal [mm]
[%]
Speed at which the axis moves from the home position to start tracking.
If the horizontal axis is rotated 180° after delivery of the system, the axis must
be reversed.
Frame rate [ms]: capture of images during automatic correction.
[mm/s]
Adjusting the axis to the current search process.
[mm/s]
Adjusting the axis to the current search process.
+/− xx [mm]
AutoGuide Plus
MON.0016.0 • 2021-02-05
