6 Commissioning
6.1.4 Mounting for MIG/MAG and TIG universal torch position
6
5
4
1 Hose guides
2 Cylinder head screws M6 × 14 (4 pieces)
3 Protection plate

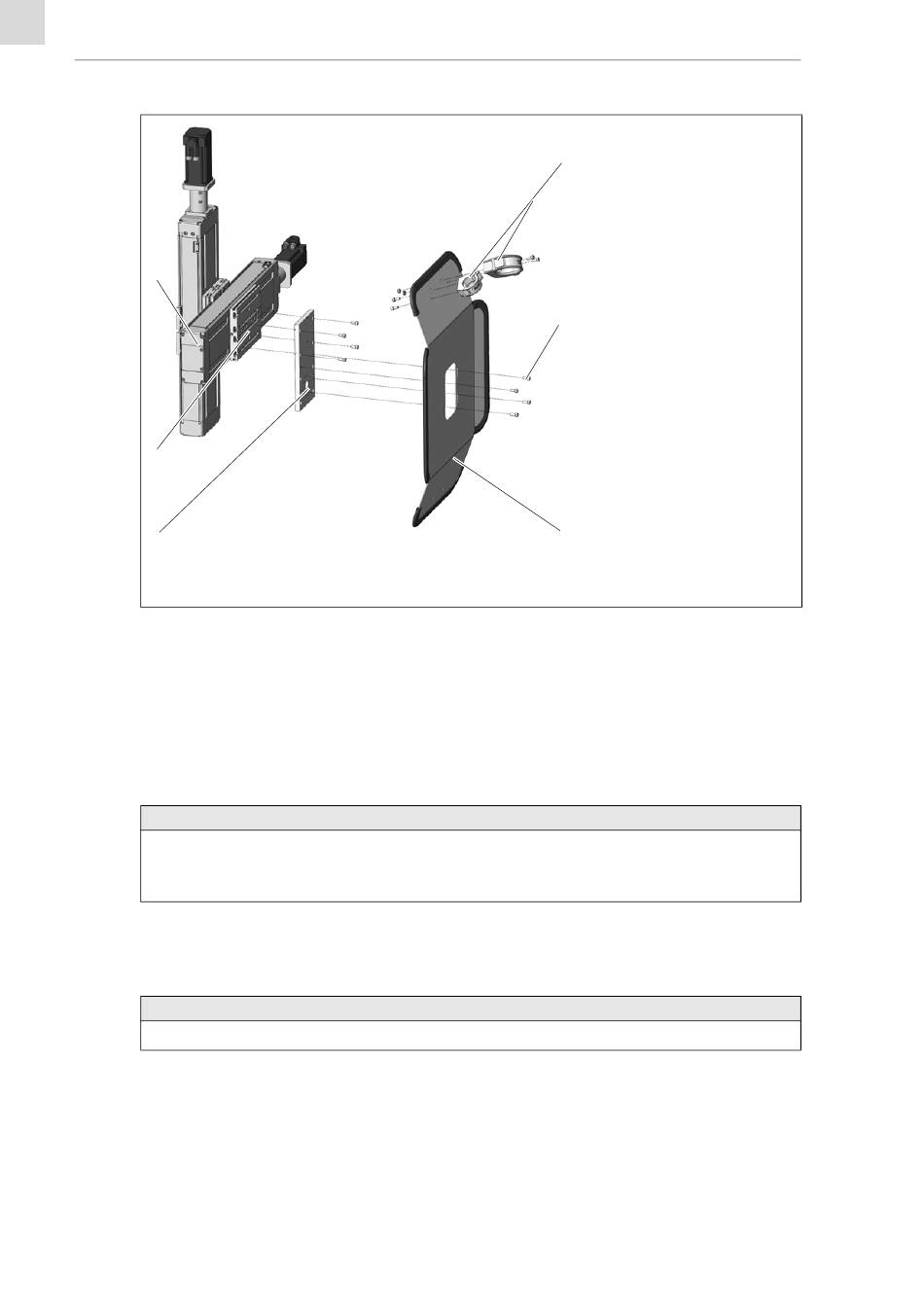

Fig. 11 Mounting for universal torch position
1 Mount the adapter plate (4) on the grooved plate (5) of the front traverse carriage (6) so it is centered using the provided
sliding blocks and the cylinder head screws (2). Tightening torque 7 ± 0.5 Nm.
2 Tighten the protection plate (3) using sliding blocks and cylinder head screws (2) to the traverse carriage's grooved
plate (6). Tightening torque 7 ± 0.5 Nm.
3 Manually tighten the provided hose guides (1) as needed in the upper holes of the protection plate (3).
6.1.5 Mounting the torch heads load class 100 kg
NOTICE
• Individual adapter plates must be used to mount submerged arch welding heads load class 100 kg.
 If you have questions, please visit the following website:
www.binzel-abicor.com/DE/deu/unternehmen/kontakt/kontaktformular/
6.2 Setup
6.2.1 Establishing the electrical connection
NOTICE
• Only qualified personnel are permitted to perform work on the device or system.
 Tab. 7 Electrical system on page EN-7
EN - 14
1
2
3
4 Adapter plate
5 Grooved plate
6 Front traverse carriage
MON.0016.0 • 2021-02-05
AutoGuide Plus
