MX809B operation

5.4.4.2 Long design assembly

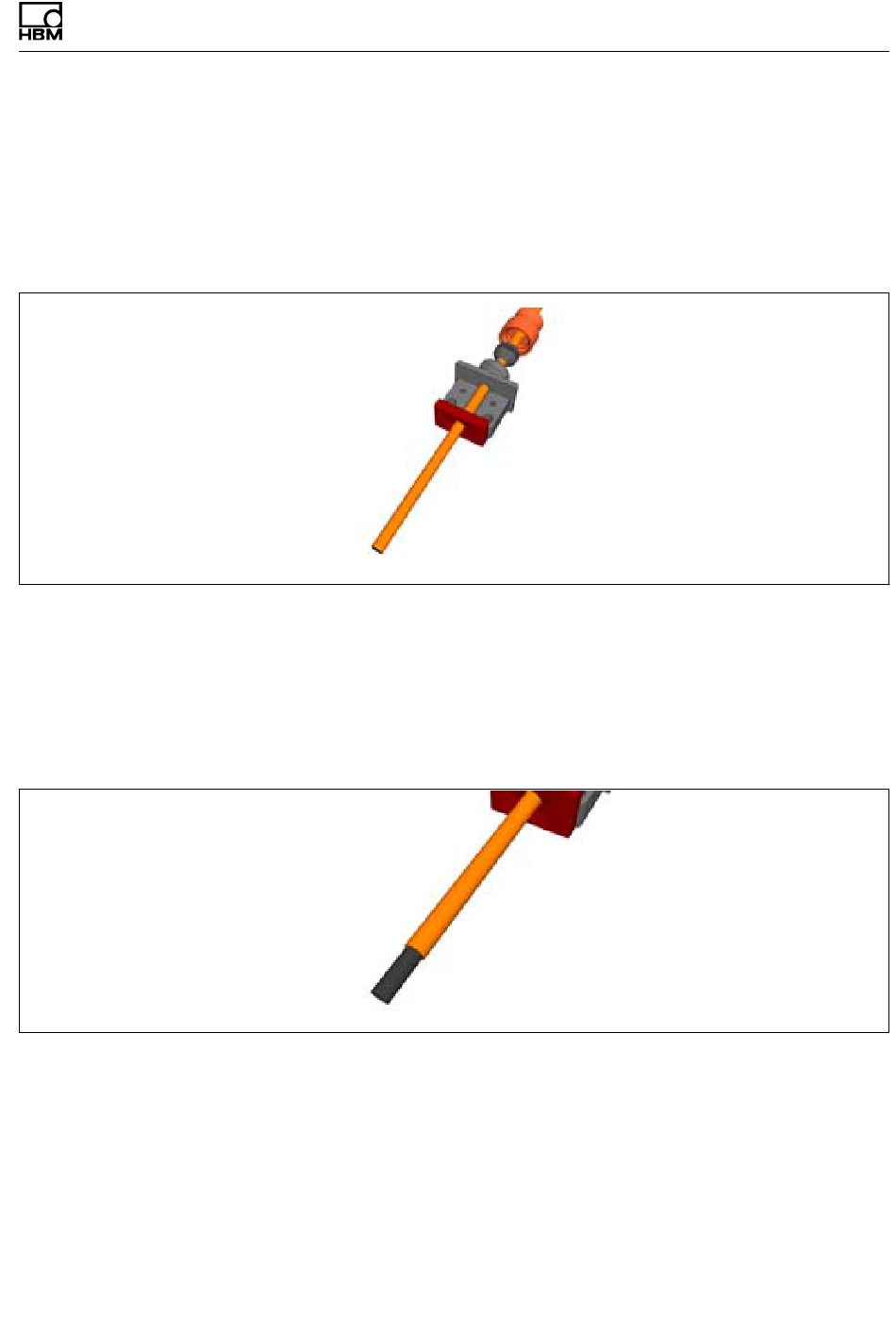

First thread the kink protection, the cable bushing, strain
relief 2 and finally the spacing plate for long thermo cou­
plings, in the correct order onto the thermo lead.
The lengths for cutting back the cable sheath and
stripping the wires must be as recommended by the
thermo coupling manufacturer!
You must first cut back the outer, orange cable sheath as
shown in the drawing. Do not make the cut too deep.
