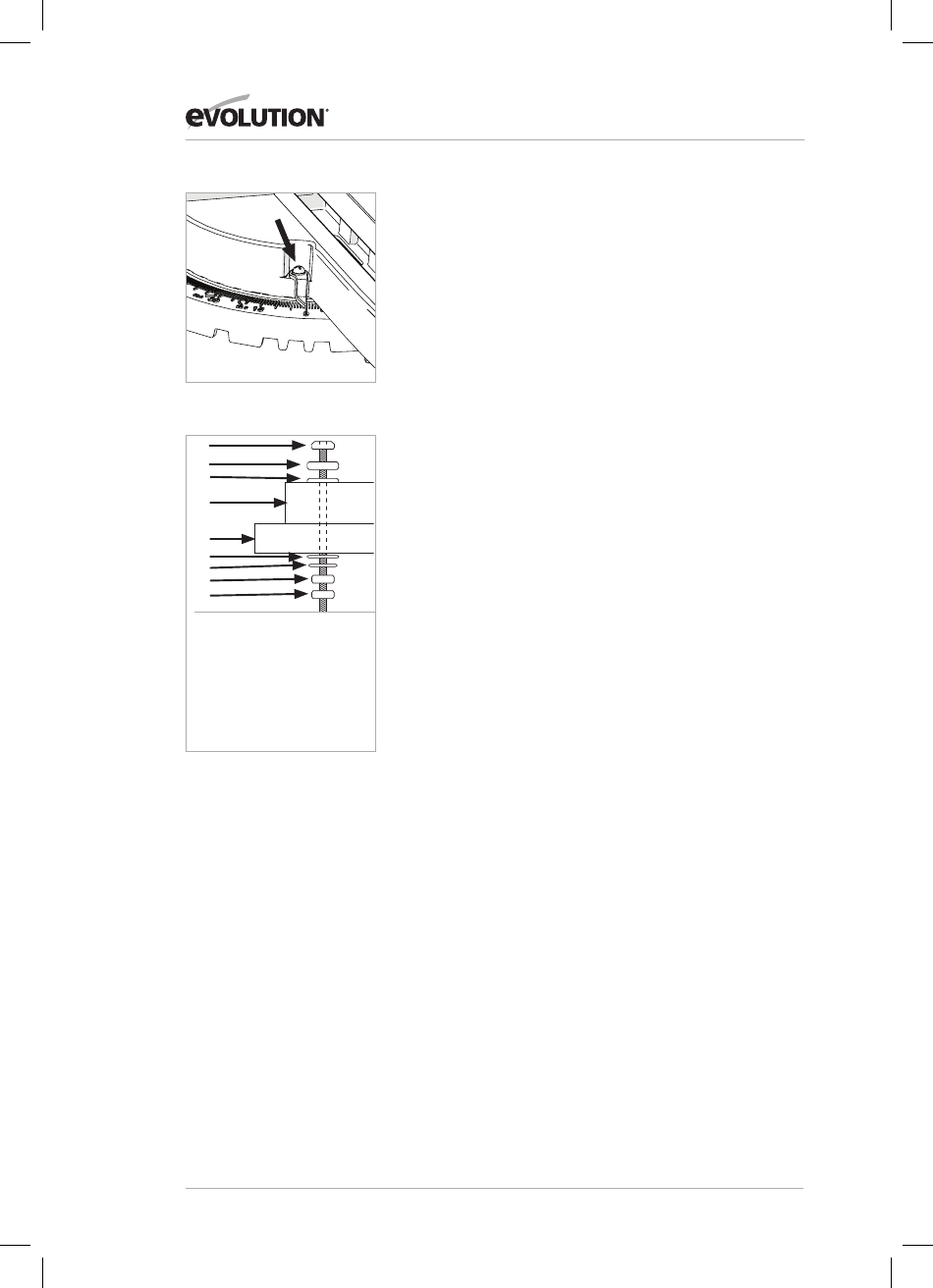

Fig. 31
1
2
3
4
5
6
7
8
9
1) Hex headed bolt
2) Spring washer
3) Flat washer
4) Mitre saw base
5) Workbench
6) Flat washer
7) Spring washer
8) Hex nut
9) Lock nut
Fig. 32
Mitre Angle Pointer Adjustment
Note: There are dual mitre angle scales cast into the front of
the machines base. A small pointer attached to the rotary table
indicates the angle selected. If necessary, the pointer can be
repositioned by loosening its fastening screw using a #2 Phillips
screwdriver. Adjust as necessary, and then securely tighten the
fixing screw. (Fig. 31)
LED BLADE GUIDE LINE
This machine is fitted with a LED light in the upper guard which
is illuminated when the motor trigger is pressed. This casts a
shadow of the blade onto the workpiece. This provides the user
with a clear cut line and extra illumination for your work area.
No adjustment needed.

PERMANENTLY MOUNTING THE MITRE SAW

To reduce the risk of injury from unexpected saw movement,
place the saw in the desired location either on a workbench
or other suitable machine stand. The base of the saw has four
mounting holes through which suitable bolts (not supplied)
can be placed to secure the mitre saw. If the saw is to be used
in one location, permanently fasten it to the workbench using
appropriate fastenings (not supplied). Use locking washers and
nuts on the underside of the workbench. (Fig. 32)
• To avoid injury from flying debris, position the saw so that
other people or bystanders cannot stand too close (or
behind) it.
• Locate the saw on a firm, level surface where there is
plenty of room for handling and properly supporting the
work-piece.
• Support the saw so the machine table is level and the saw
does not rock.
• Bolt or clamp the saw securely to its support stand or
workbench.
Note: This machine can be attached to the Evolution Mitre Saw
Stand. This will provide a safe secure, and extremely portable
workshop stand which is capable of handling long pieces of
material. Operator efficiency and safety may thus be enhanced,
as well as operator fatigue reduced.
22
