15.1

Diagnostics help

15.2 Heating/cooling quantity meas-
urement
238
Diagnostics and measured values
In the "Diagnostics and measured values" menu
1. "Diagnostics help".
Functions for diagnosing and maintaining electronics and interfaces can be found under
the "Diagnostics help" menu.
ƒ
Overview of hydraulic data
ƒ
Overview of electrical data
ƒ
Overview of the analogue inputs AI1 ... AI4
ƒ
SSM/SBM forced control (see also "Communication stations: settings and function"
section [} 213])
ƒ
Device information (e.g. version of hardware and software, pump type, pump
name, serial number)
ƒ
Contact data of WILO SE
Heat/cooling quantity measuring
Heat/cooling quantity On/Off
Current: switched on
Sensor feed temperature
Current: analogue input (AI3)
Sensor return temperature
Current: analogue input (AI4)
Display of heating quantity
Current: 0.00 MWh

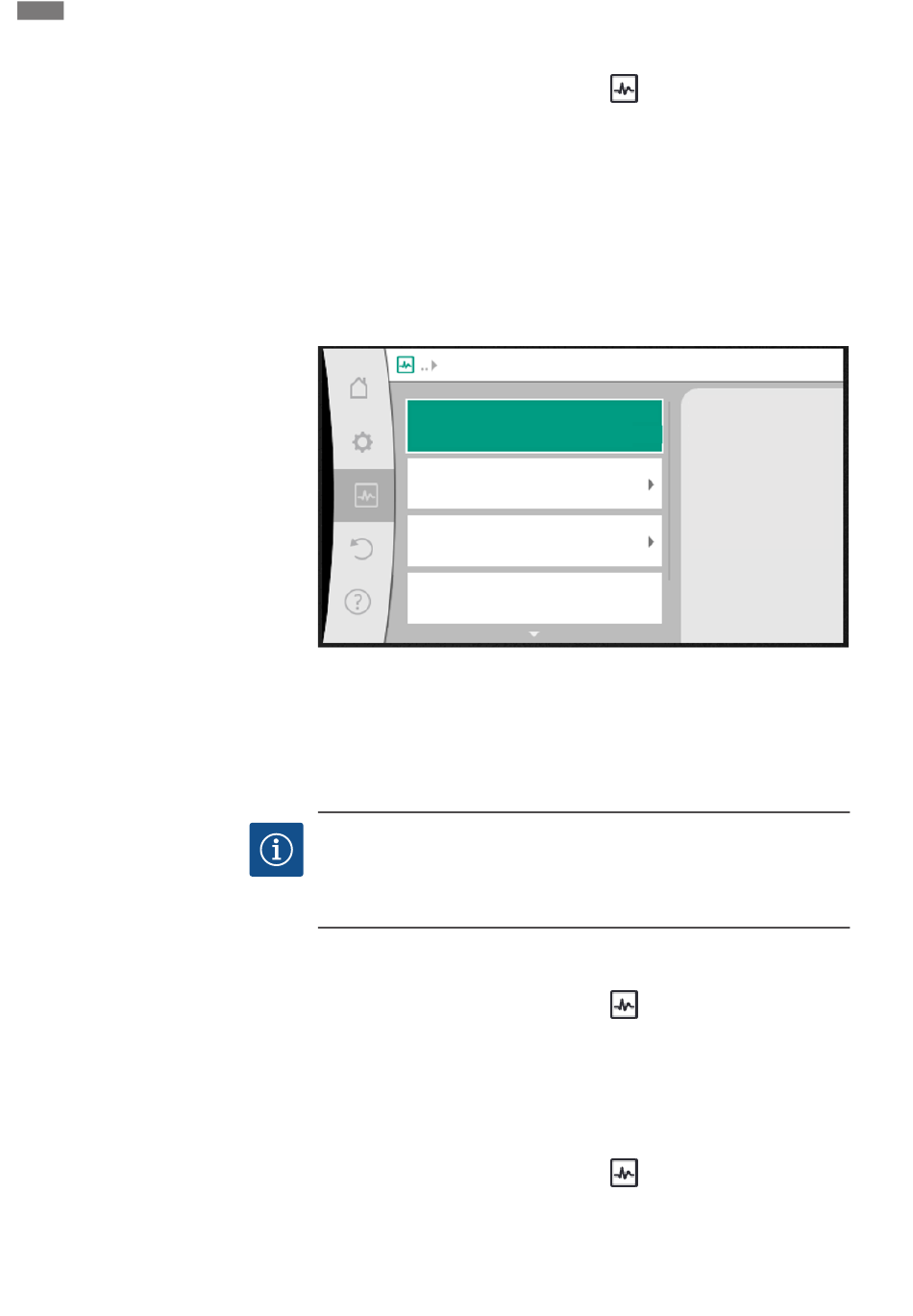

Fig. 91: Heating/cooling quantity measurement
The heating or cooling quantity is recorded by the pump's volume flow detection and
checking the temperature in the feed and return.
For detecting the temperature, two temperature sensors must be connected to the
pump via the analogue inputs. They must be installed in the flow and return.
The heating and cooling quantity is identified separately based on the application.
NOTICE
With Stratos GIGA2.0, the differential pressure sensor is configured to AI1 at the
factory for determining the volume flow.
With Stratos GIGA2.0 ... R1, a differential pressure sensor must be mounted and con-
figured.
Activating heating/cooling quantity measurement
In the "Diagnostics and measured values" menu
1.

"Heating/cooling quantity measurement"

2. Select "Heating/cooling quantity On/Off".
Then configure the sensor source and sensor position in the "Sensor feed temperature"
and "Sensor return temperature" menu items.
Configuring the sensor source in the feed
In the "Diagnostics and measured values" menu
1. "Heating/cooling quantity measurement"
2. "Sensor feed temperature"
3. Select "Select sensor source".
, select
Switch heating
/cooling quantity
measurement
on or off.
, select
, select
