4.4 Downtube battery pack

• Battery pack size
Down tube battery pack, Lithium-Ion, max. 423 Wh.

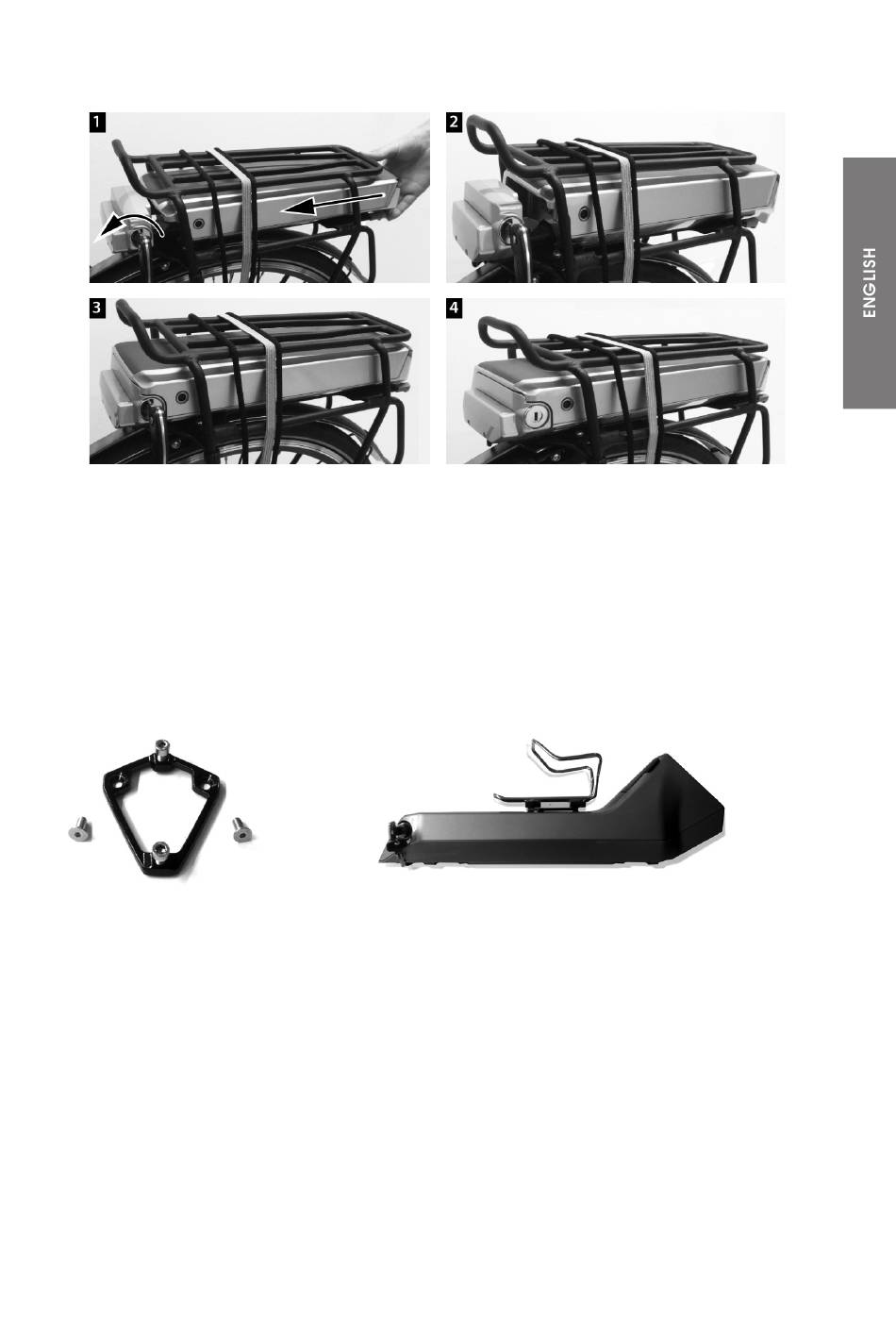

• Bottle cage holder
A bottle cage can be mounted on the downtube battery pack by installing the 'bottle cage holder'.
This adapter can be mounted by 2 bolts. Subsequently, the bottle cage can be mounted on the
adapter. Only use the 4 bolts that are delivered with the holder to prevent damage to the battery cells
inside.
• Removing the battery pack
Put the key in the lock, twist the key clockwise until the lock springs out (step 1,2, see next page).
When the lock springs out, the lever of the battery pack will be released. Now take the key from the
lock and pull the lever of the battery pack so that it slides upwards -parallel to the down tube- until
it releases from the rail (step 3). When the battery pack is not on the bike, always use the
protective cover on the contacts on the frame to protect the electrical system from water (step 5).
Be sure to fasten the cord of the protective cover in a safe way to the frame.
EN-22
