uICk start

1.5 Downtube battery pack

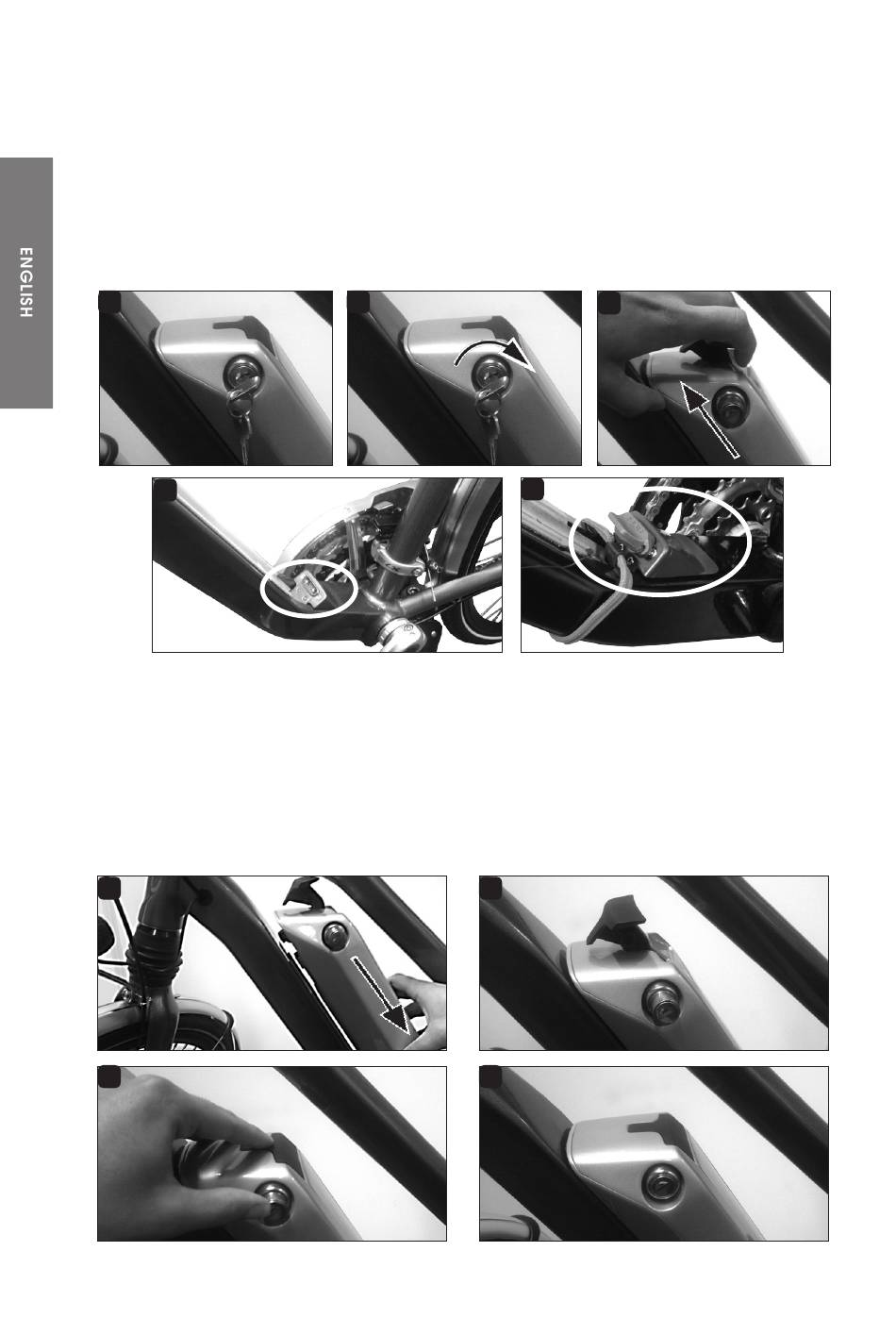

• Removing the battery pack
Insert the key in the lock, twist the key clockwise until the lock springs out (1,2). When the lock
springs out, the lever of the battery pack will be released. Now take the key from the lock and pull
the lever of the battery pack so that it slides upwards - parallel to the down tube - until it releases
from the rail (3). When the battery pack is not on the bike, always use the protective cover on the
contacts on the frame to protect the electrical system from water (5).
1
4
• Placing the battery pack
Position the battery over the downtube (with some space between the seat tube and the lower end
of the battery pack, 1). Now, slide the battery pack down onto the rail (2). Use the lever to lower
the battery pack carefully during the last phase of sliding, so that the connectors engage (3).
Be sure that the connector at the bottom of the battery pack and the connector on the docking
engage properly. When the battery pack is fully in place, push the lock in until it clicks (4).
Do not ride the bike with the lock open.
1
3
EN-9
- d b
owntube attery
2
p
aCk
3
5
Contacts at the bottom side of the down tube.
2
4
