6.

CONTROL SYSTEM FUNCTIONS

6.1

MOTOR MANAGEMENT

The RSK24 2000/2500 has separate outputs for motor
control. When Motor 1 (single-wing version) only is
connected, the control system will automatically control this
motor.
On the opening stroke, Motor 2 has a fi xed delay of 3 seconds.
When the operator approaches the closing and opening
stops, the wing travel speed is reduced to 45% of the
maximum speed.
6.2

CONTROL DEVICES

START button - controls the operator; starts and stops the
automation depending on the current operating mode.
STOP button - stops the wings. This control device has
priority in all operating modes and functions. It stops the
operator in its current position. To restart the movement
you must use the START control.
Closing photocells - these photocells are only enabled on
the closing stroke. When triggered they will stop the movement
for 1 second and then start to reopen the gate. These
photocells will prevent closing as long as they are covered.
Safety edge operating on opening stroke - this is a safety
input which is enabled during the opening stroke. The safety
edge will trigger if it touches an obstruction during the
opening stroke. The wings will reverse for a short distance
and then stop. To complete the movement which has been
interrupted in this way, you must press START. This will
complete the movement in the safe mode, i.e. at slow speed
with the warning light permanently lit.
NOTE: To enable the opening stroke safety edge, program
the parameter H.
Opening safety photocells - these photocells detect
obstacles on the opening and closing strokes; they will
trigger on detecting an obstruction and stop the wings.
The movement will only restart when the photocells are
uncovered. After a pause of 1 second, the movement will
restart in the original direction.

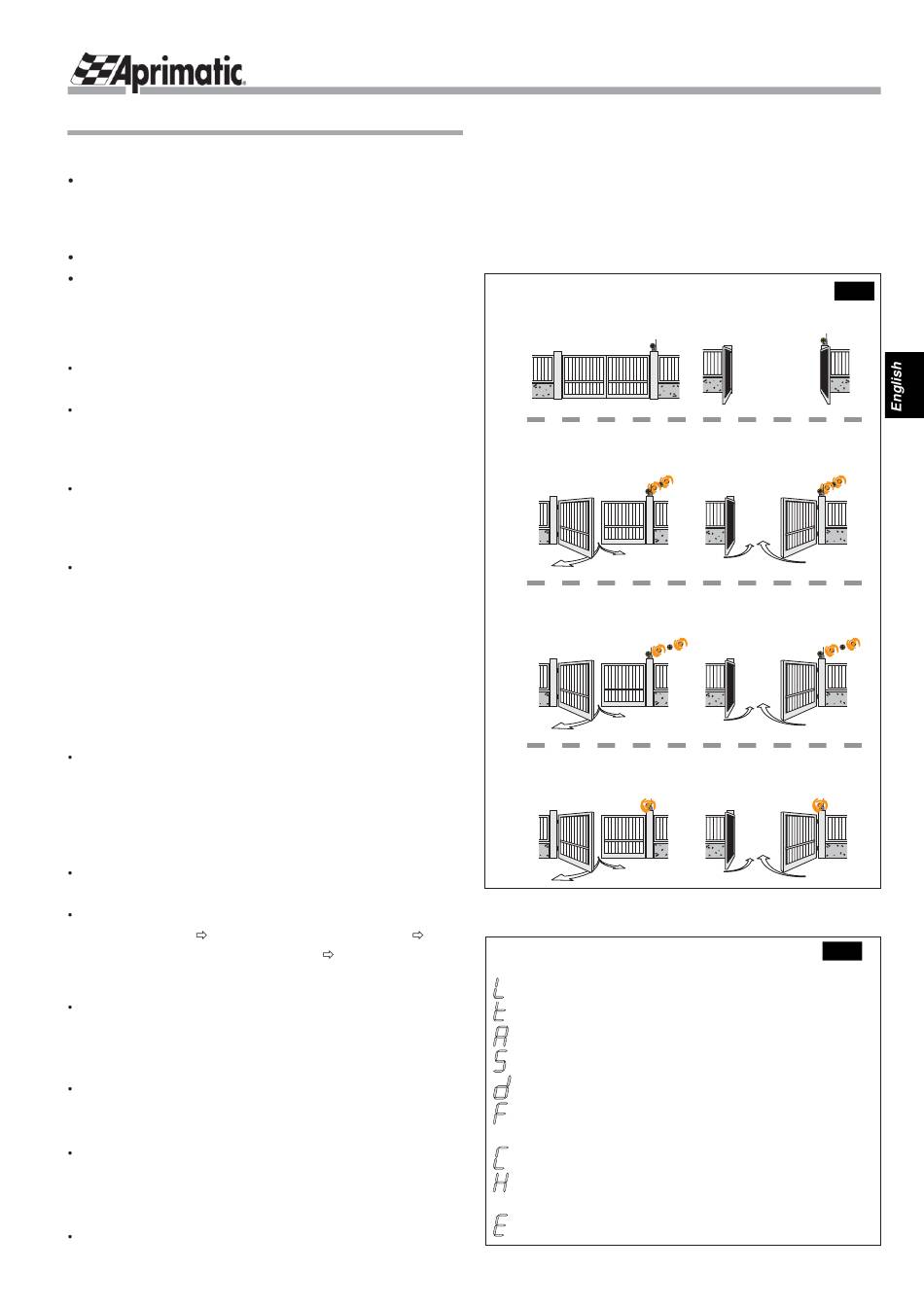

Flashing light - this indicates the current status of the
operator (Fig.7).
Warning light - this signals the current status of the
operator: light off gate closed; light on, fi xed
opened or opening; light on, fl ashing
6.3 PROGRAMMED FUNCTIONS (see sect. 4.1)
Prefl ashing - when this function is enabled, the fl ashing light
will light up for 3 seconds before opening or closing starts.
IMPORTANT: If you are not using the fl ashing light, disable
the prefl ashing function.
Pedestrian start - this function enables opening of a
single wing only from a pushbutton or a remote control
(button 2).
Short inversion at the end of movement - at the end
of the wing closing stroke, the motors are reversed for a
short time in order to take the load off the wings and thereby
facilitate release.
Pause time photocell - with this parameter set to Yes,
RSK24-2000/2500
gate
gate closing.
- 23 -
FLASHING LIGHT OPERATION
OFF = gate closed or open and paused
ON flashing = preflashing (where selected) or gate
moving (opening or closing)
ON slow flashing = gate moving in black-out mode
(battery powered)
ON fixed = gate moving in emergency mode
(after obstacle detection)
PROGRAMMABLE PARAMETERS
Operating mode
Pause time
Wing closing delay
Wing travel speed
Approach time
Preflashing / Reverse stroke / Trhust at end of
movement
Short inversion at end of movement
Pause time photocell / Opening safety with
photocell / with safety edge / Pedestrian start
Thrust force
CONTROL UNIT
Fig.7
Tab. 3
