3.2

PROGRAMMING REMOTE CONTROLS

To program the remote controls so that they are recognised by the system,
follow the procedure in sect. 3.2A or 32B depending on the type of receiver
installed. At the end of programming, button 1 will give the START command
and button 2 will give the PEDESTRIAN START command (Fig.3).

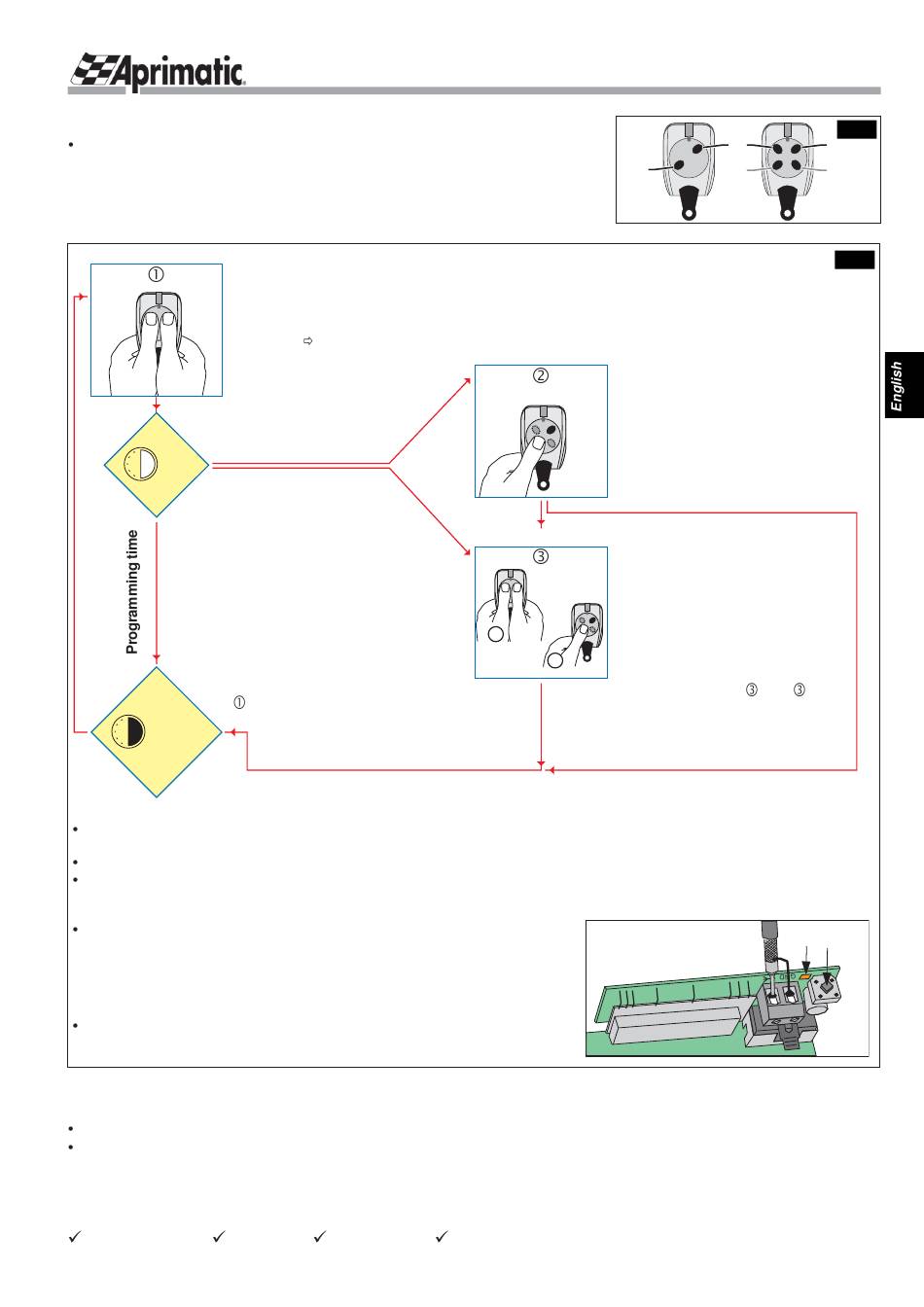

3.2A FOR PL-ECO PLUG-IN TWIN-CHANNEL RECEIVER (Fig.4)
Enabling self-teach
1 Press all the buttons on the first remote
control to be memorised if the receiver
memory is empty; alternatively, press all the
buttons on a remote control already
memorised.
enabled for 30 seconds.
- Operation confirmed by: the LED
will light up permanently and then
switch off at the end of programming
time.
30 s
During the programming time you can memorise
the first remote control and then any other remote
controls.
At the end of 30 seconds the self-teach mode
finishes.
- Operation confirmed by: the LED switches
off.
If you wish to memorise other remote controls
at this point you must enable the self-teach
once again. To do this, use one of the remote
controls already memorised and repeat the
step
END
IMPORTANT NOTE:
When you connect up the power supply, the receiver LED will fl ash for 7 seconds (10 times) and then switch off. You
can only program the remote control recognition when the LED is off.
If you do not perform programming, after a pause of 30 seconds the LED will switch off and the teach procedure is fi nished.
To leave the programming mode, press the RESET on the receiver. All the data saved to memory and confi rmed
will be saved. CAUTION. If you press RESET and at the same time press a button of a remote control already in the
memory, this action will delete the remote control from the memory.
To completely DELETE the PL-ECO memory:
- Switch off the power supply to the receiver for at least 30 seconds. - Power
up the receiver and at the same time press and hold down RESET until
the LED switches off (10 seconds). - After a few seconds the LED will start
to fl ash and then switch off. The remote controls have now all be deleted
from the memory. YOU can now reprogram the memory.
To DELETE a single remote control from the PL-ECO memory:
- With the receiver powered up, press RESET and at the same time any
button on the remote control to be deleted from the memory.

3.2B FOR UNICO MEMORY SYSTEM RECEIVER

CAUTION! If you are using the UNICO Memory System receiver you must fi rst remove the PL-ECO receiver.
Plug the UNICO receiver into the connector CN1 (see the layout drawing in Fig.1).
Perform the remote control teach procedure following the instructions supplied with the UNICO receiver.
3.3

FUNCTIONAL TESTS AND ADJUSTMENTS

Perform the functional tests after you have connected up the actuators to the electronic unit and after you have completed
the self-teach procedure. Implement the safety precautions. You can now adjust the following parameters (see sect. 4.1):
wing travel speed; thrust force;
RSK24-2000/2500
The self-teach mode is
above.
approach time;
Memorising the first remote control
2 Press any button on the remote control.
- Operation confirmed by: the LED switches
off and then on again, fixed.
Memorising other remote controls
3-A Press all the buttons on the remote
control to be memorised.
- Operation confirmed by: the LED switches
off and then on again, fixed.
3-B Press any button on the remote control.
A
- Operation confirmed by: the LED switches
off and then on again, fixed.
B
Memorise each remote control one after the
other by repeating steps A and B within
the programming time.
PL-ECO RECEIVER
short inversion at end of movement.
- 19 -
CONTROL UNIT
2 1 2
1 3 4
LED RESET
Fig.3
Fig.4
