Start-up / trial run

10. Carrying out trial run

We recommend first carrying out a trial run without
material and drill bits to test all functions for proper
working order. If all functions are working properly, fit
the required tool.
Depending on connection, use the foot or manually
operated switch for function testing.
Start a trial run without material. Afterwards, you should
carry out a test with material.
Check work for correct results. You can start production if
all settings are correct.

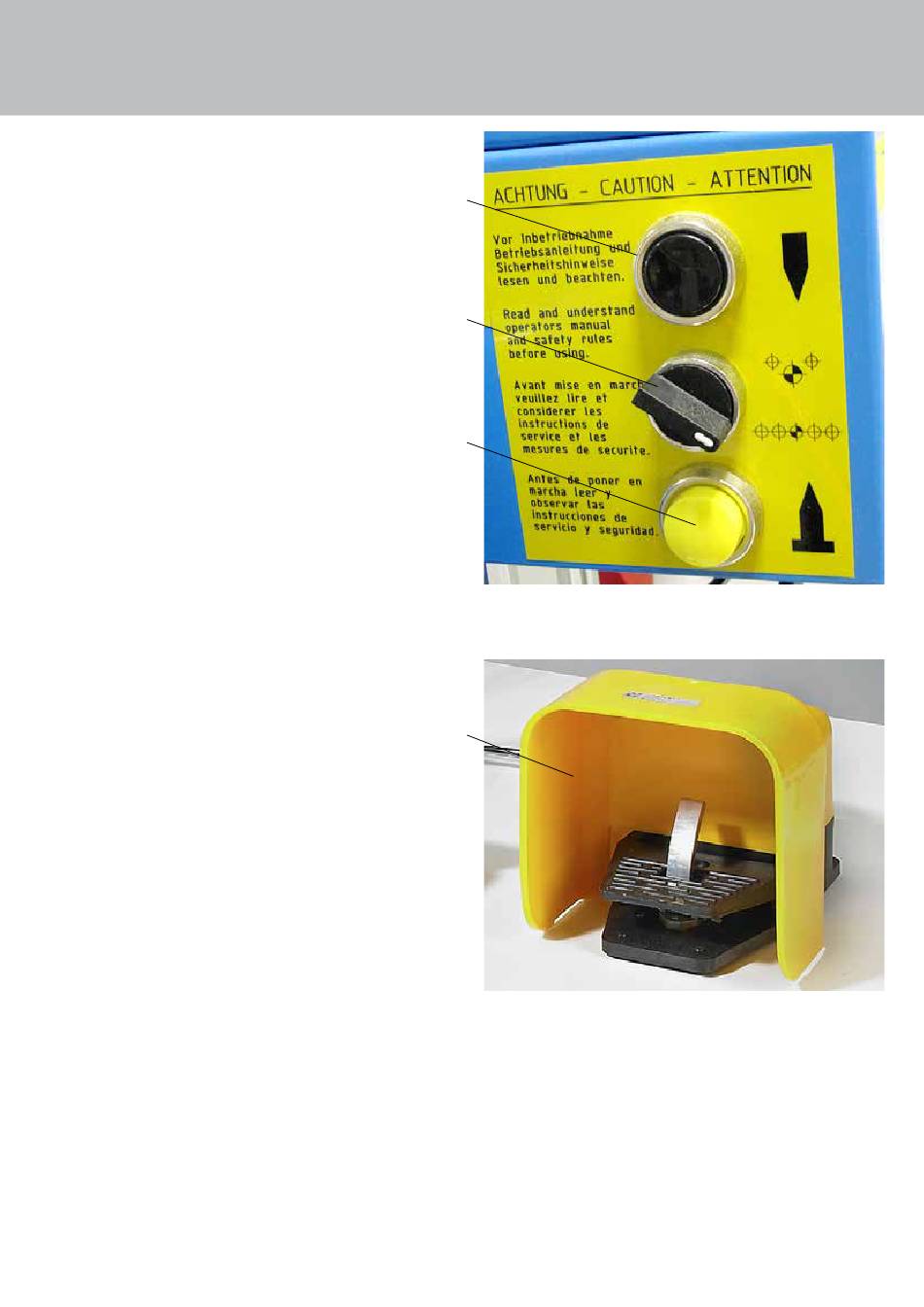

Pushbutton:

1 = pushbutton

Pressing hand-operated pushbutton
a work operation.
You must keep the pushbutton pressed until the work
operation has been completed or the process will
immediately stop.
2 = rotary switch
Setting for drilling with insertion, rotary switch points
upwards.
Setting for drilling a hole line only, rotary switch pints
downwards (see photo).
3 = pushbutton
For manually releasing the hold-down clamp.
4 = foot pedal
Foot pedal is used for initiating a work operation and
4
must stay pressed down until the the work operation had
been completed or the process will immediately stop.
Pushbutton is not operational when
1
using the foot pedal.

Information on trial run

Once you have made and checked all settings, carry out a
trial run.

Preliminary conditions

• All of the necessary activation processes must have
been carried out.
• The compressed air must be turned on.
• The machine must be set up for the relevant
product.
• Make sure the machine is running smoothly and
and not erratically.
• The operator must always be informed about
current work procedure.
