Connecting to compressed-air supply

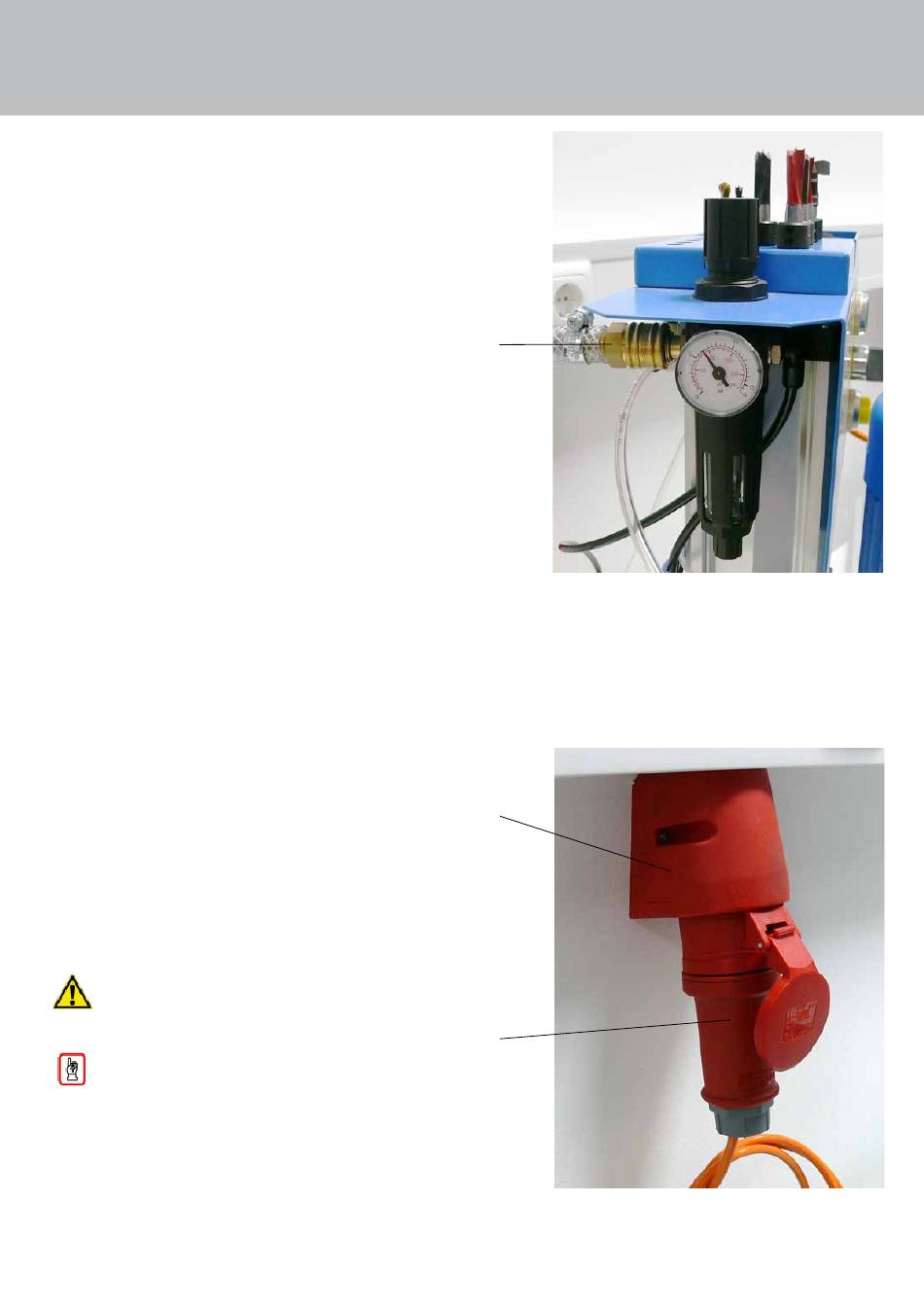

To connect the machine to the compressed-air supply
system, push the air supply line onto the air filter using
using quick-release connector
Recommended air pressure 6 - 7 bar, 100 PSI.
Connection to power supply
Connect to the power supply using a 16-ampere plug.
Before you do, get a qualified electrician to make sure
the socket is in proper working order.
Now connect plug to socket
2
The machine is rated for a supply voltage of
400 volts.
Use an appropriate plug in conformity with DIN VDE or
IEC-Norm. An upstream fuse must be provided in the
mains power supply system.
Caution!
Check motor turning direction.
The drilling spindles must turn
clockwise.
Note!
If the motor or spindles turn(s) anti-clockwise,
you must reverse the phases in the
plug.
.
