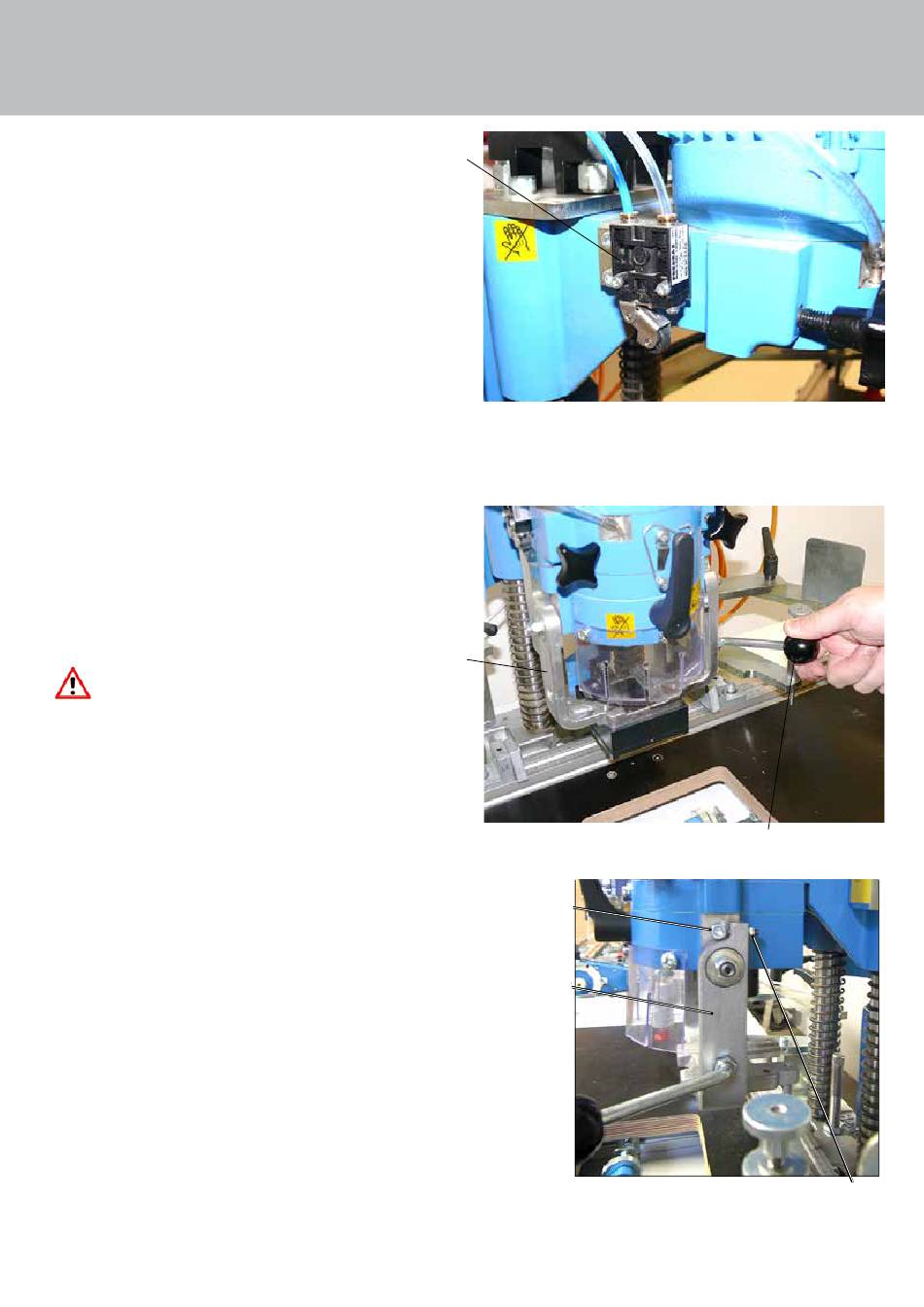

Checking switch for proper working order

The 6-spindle interchangeable drilling unit is used for drilling
holes and for inserting a hinge / connector.
The drilling unit's drive system must be switched off for
inserting the hinge / connector.
Using the hand lever
, turn press-in frame
3
into the inserting position. Operate switch
and turn motor off using the switch. Check for proper wor-
king order. Adjust the switch if necessary.
Switch
must always be checked for proper working order
1
after changing the drilling unit or after the machine has been
out of service for a prolonged period.
Danger!
Malfunctioning can result in serious injuries
and disrupt production!

Inserting position for press-in frame

The press-in frame can be re-positioned if necessary.
Adjust press-in frame for exact positioning using setscrew
The setscrew presses against stop screw
Swing down press-in frame and check position in insertion.
If necessary, repeat the setting process until the correct
position is attained.
1
2
with the lever
1
2
.
5
.
6
6
2
4
5
141
