PROPELLER SHAFT HOUSING AND PROPELLER
SHAFT

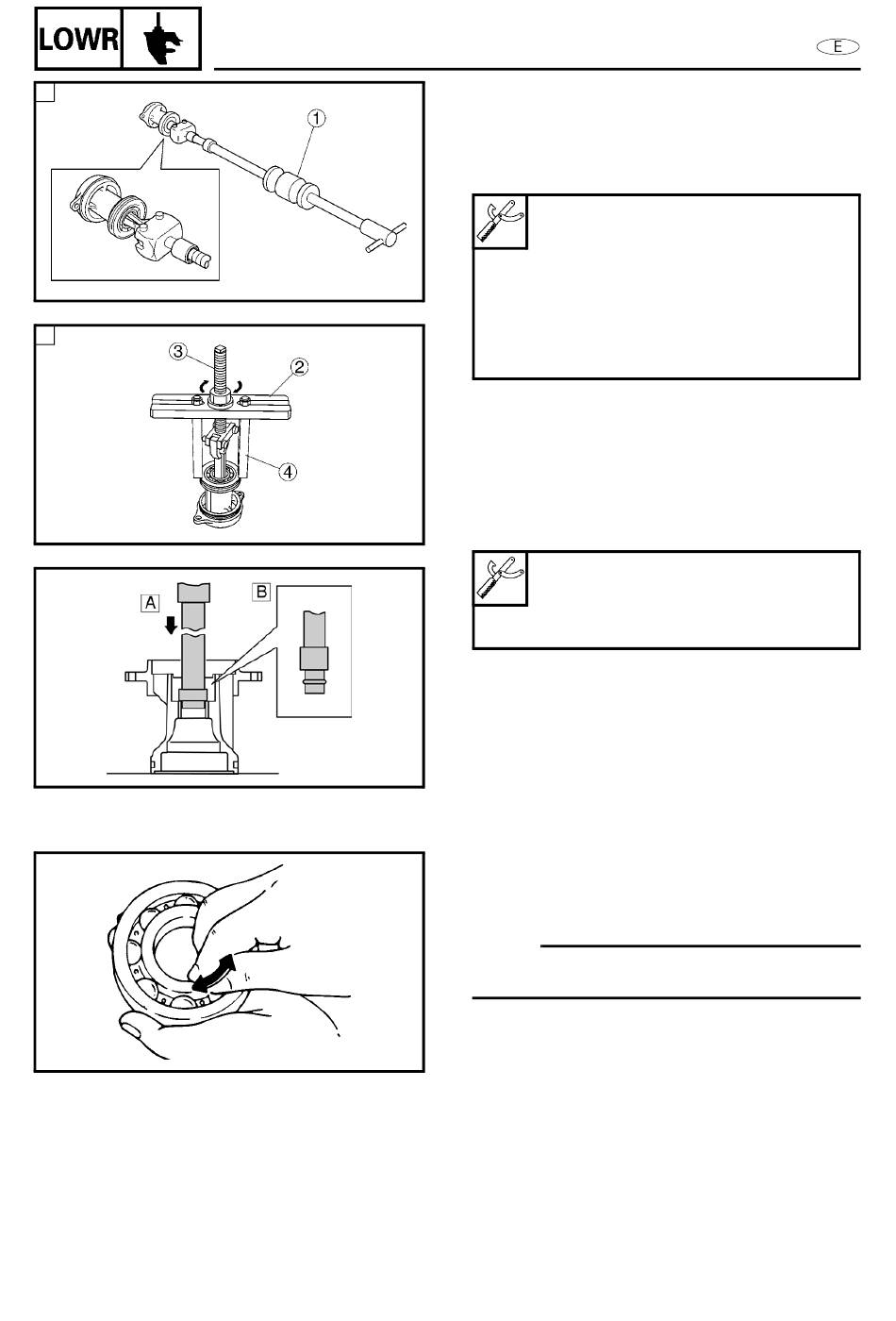

DISASSEMBLING THE PROPELLER
SHAFT HOUSING ASSEMBLY
1. Remove:
Ball bearing


Slide hammer handle 1:
YB-06096
Stopper guide plate 2:
90890-06501
Bearing puller 3:
90890-06535
Stopper guide stand 4:
90890-06538
A
For USA and Canada
B
Except for USA and Canada
2. Remove:
Solid bushing


Drive rod:
YB-06229/90890-06652
Attachment:
YB-06298/90890-06649
A
For USA and Canada
B
Except for USA and Canada

CHECKING THE REVERSE GEAR

Check:
Teeth


Wear/damage
CHECKING THE BALL BEARING
Check:
Ball bearing


Pitting/rumbling
NOTE:
Rotate the bearing and check if it turns
smoothly.
6-14
Replace.

Replace.
