Elektroseilwinde / Electric Wire Rope Winch / Treuil électrique >BETA II<

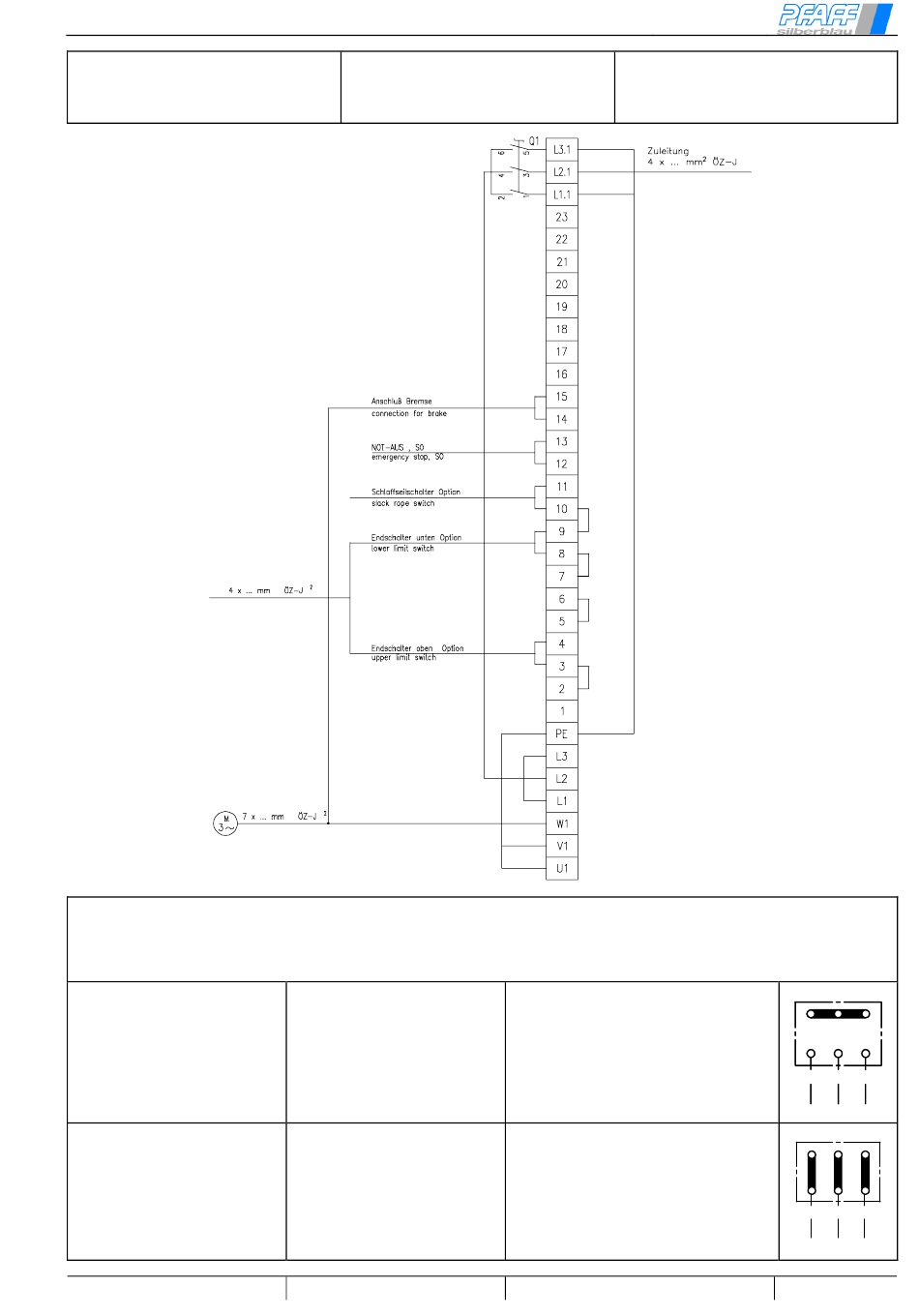

Klemmenplan für Elektroseil-
winden mit 1 Geschwindigkeit
und Drehstrom
Anschluss an Drehstromnetz / Connection to three-phase network / Branchement au réseau triphasé
Der im Motorklemmkasten befindliche Anschlussplan ist zu beachten.
The connecting plan integrated in the motor terminal box has to be observed.
Observer le plan intégré dans le coffret des bornes de branchement du moteur.
Stern - Schaltung
f=50 Hz:
Motorleistung
bis
3
Spannung:
380 ÷ 420 V
f=60 Hz:
Motorleistung
bis
3,3
Spannung:
440 ÷ 460 V
Dreieck - Schaltung
f=50 Hz:
Motorleistung > 3 kW
Spannung:
380 ÷ 420 V
f=60 Hz:
Motorleistung > 3,3 kW
Spannung:
440 ÷ 460 V
Bildliche Darstellung unverbindlich!
Wiring diagram for el. wire
rope winches with 1 wire rope
speed for three-phase AC
Star - connection
f=50 Hz:
kW
driving power <3 kW
voltage: 380 ÷ 420V
f=60 Hz:
kW
driving power <3,3 kW
voltage: 440 ÷ 460V
Delta - connection
f=50 Hz:
driving power >3 kW
voltage: 380 ÷ 420V
f=60 Hz:
driving power >3,3kW
voltage: 440 ÷ 460V
Graphic representation not binding!
4.1.401
Plan des bornes de branche-
ment pour treuil électrique avec
1 vitesse et courant triphasé
branchement en étoile
f = 50 Hz:
puissance motrice allant jusqu'à 3 kW
tension: 380 ÷ 420 V
f = 60 Hz:
puissance motrice allant jusqu'à 3,3 kW
tension:440 ÷ 460 V
branchement triangulaire
f = 50 Hz:
puissance motrice à partir de 3 kW
tension: 380 ÷ 420 V
f = 60 Hz:
puissance motrice à partir de 3,3 kW
tension: 440 ÷ 460 V
Représentation graphique sans engagement!
W2
U2
V2
U1
V1
W1
L1
L2
L3
W2
U2
V2
U1
V1
W1
L1
L2
L3
Seite / page 72
