Electric wire rope winch >BETA II<
English

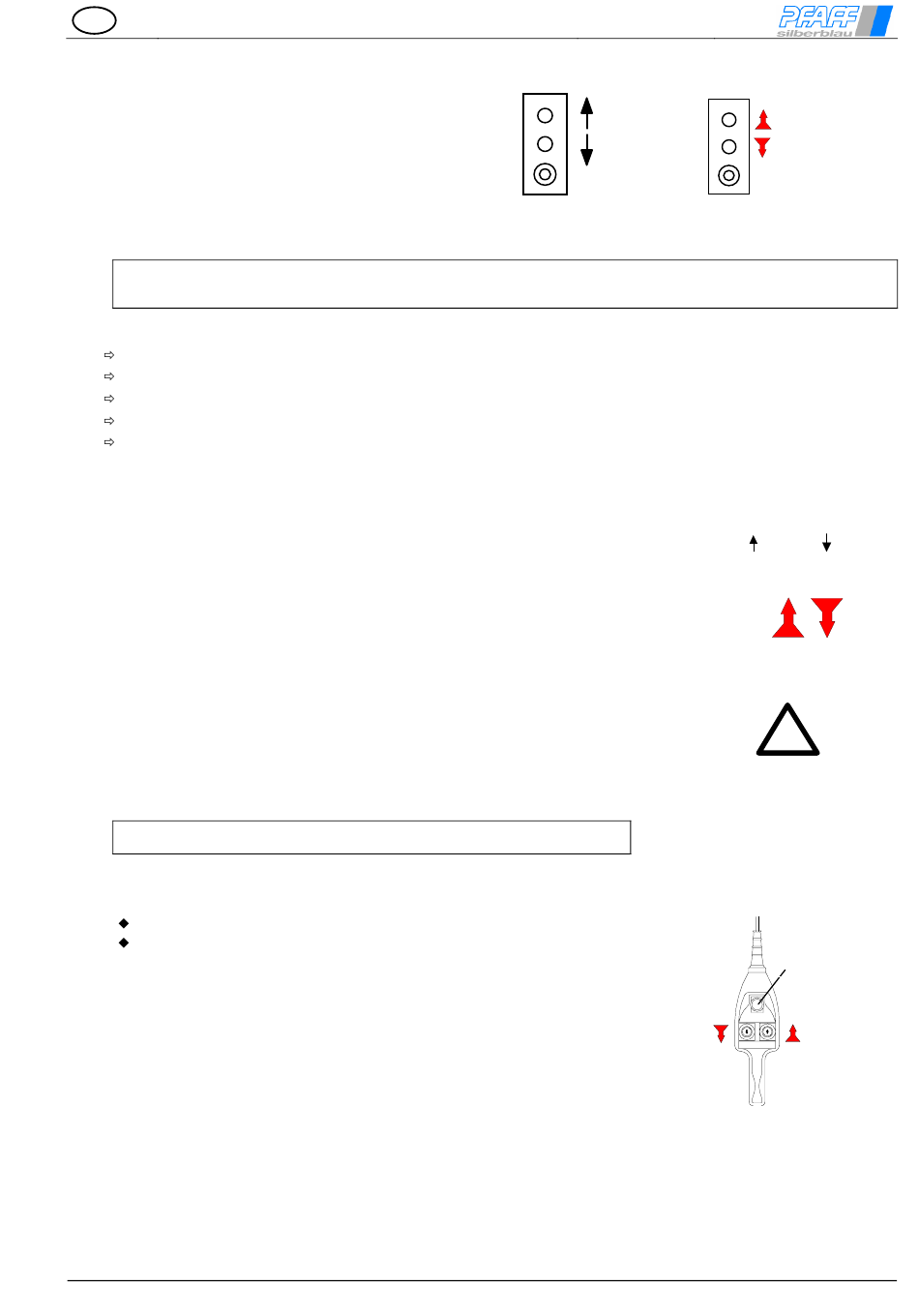

4.9. Operating Elements:
The operating elements (operating places) have to be
installed in such a way that the entire load distance
can be overlooked from the operator's position.
Push buttons have to be located in reasonable
position.
Protective measures:
Connection, protective measures and safety precautions have to be effected according to local,
national and international regulations.
Before taking into operation, check:
correct polarity, turning direction, placement of order devices
protective conductor system
insulation resistance
overload protection adjustment (if existing)
function
5.
Operation
Before taking into operation please turn on the main switch.
The required direction is to be initiated by pressing the respective push-button Up
For el. wire rope winches with 2 rope speeds the push-buttons Up-Down are step push-buttons.
1st step (half pressed) slow speed
2nd step (completely pressed) quick speed
During operation, the operator always has to observe the load, the room below and above the load
and the load carrying device.
For safety instructions see 1.3 page 22
In case of occurring faults, immediately stop operation and eliminate the fault.
Always pay attention to correct turning direction of the rope drum.
Never coil up the rope incorrectly.
When overload protection is effective, reduce the load.
In case of danger operate the Emergency-Stop switch.
5.1. Direct control
Direct control up to max. 980 kg
max. driving power 2,2 kW
Main switch (see page 29) and motor protection provided on site
(see page 31)
design changes under reserve
04.01.401
lifting
lowering
emergency-stop
lowering
page 31
lifting
lowering
emergency-stop
- Down .
!
Emergency
stop
lifting
