Electric wire rope winch >BETA II<
English
4.3. Electric controls can be delivered as:
Electric control
direct control
max. motor power 2,2 kW
electric control with mounted-in re-
versing contactor, thermal motor pro-
tection, main switch and integrated
operating elements
electric control with mounted-in re-
versing contactor, thermal motor pro-
tection, main switch, main contactor
and external operating elements
electric control with mounted-in re-
versing contactor, thermal motor pro-
tection, main switch, main con-
tactor and electronic overload
protection*
electric control with mounted-in re-
versing contactor, thermal motor pro-
tection, main switch, main contactor
and radio-controlled operating ele-
ments
electric control with mounted-in re-
versing contactor, thermal motor pro-
tection, main switch, main contactor,
electronic overload protection* and
radio-controlled operating ele-
ments
*
Wire rope winches with a load of 1000 kg and more have to be equipped with an overload
protection.
Pfaff-silberblau contactor control are designed for:
Winches with 1 wire rope speed and AC connection
f=50 Hz: 380÷420 V
f=60 Hz: 440÷460 V (wire rope speed increased by factor 1,20)
Type of protection IP54
Operating voltage 42V; 50/60Hz
Attention
When connecting the winch to a three-phase network U=440÷460V,
the bridge of the transformer has to be switched from A÷B to B÷C!
Winches with 2 wire rope speeds and AC connection
f=50Hz: 380-420 V ±5%
Type of protection IP54
Operating voltage 42V-50Hz
Winches with 1 wire rope speed for single-phase AC
f=50 Hz: 220÷240V single-phase AC
Type of protection IP54
Operating voltage 24V-50Hz
For supply of the control current circuit, a transformer with galvanic separation must be used
(provided in Pfaff-silberblau controls).
Exception: direct control acc. to EN 60204 T32 § 9.1, § 9.2.5.10.
In any case, an easily accessible emergency stop push-button (switch) has to be provided. (provided
in Pfaff-silberblau controls, different designs)
design changes under reserve
1 wire rope speed
and AC connection
<980kg
L4.1.401-1760
Standard
up to
L4.1.401-1700(3)
1000 kg
Option
L4.1.401-1720(3)
L4.1.401-1740(3)
Standard
from
L4.1.401-1723(3)
1000 kg
Option
L4.1.401-1743(3)
04.01.401
2 wire rope speeds
1 wire rope speed
and AC connection
and single-phase AC
Circuit diagram no.
L4.1.401-1860
L4.1.401-1960
L4.1.401-1800(3)
L4.1.401-1900(3)
L4.1.401-1820(3)
L4.1.401-1920(3)
L4.1.401-1840(3)
L4.1.401-1940(3)
L4.1.401-1823(3)
L4.1.401-1923(3)
L 4.1.401-1843(3)
L4.1.401-1943(3)

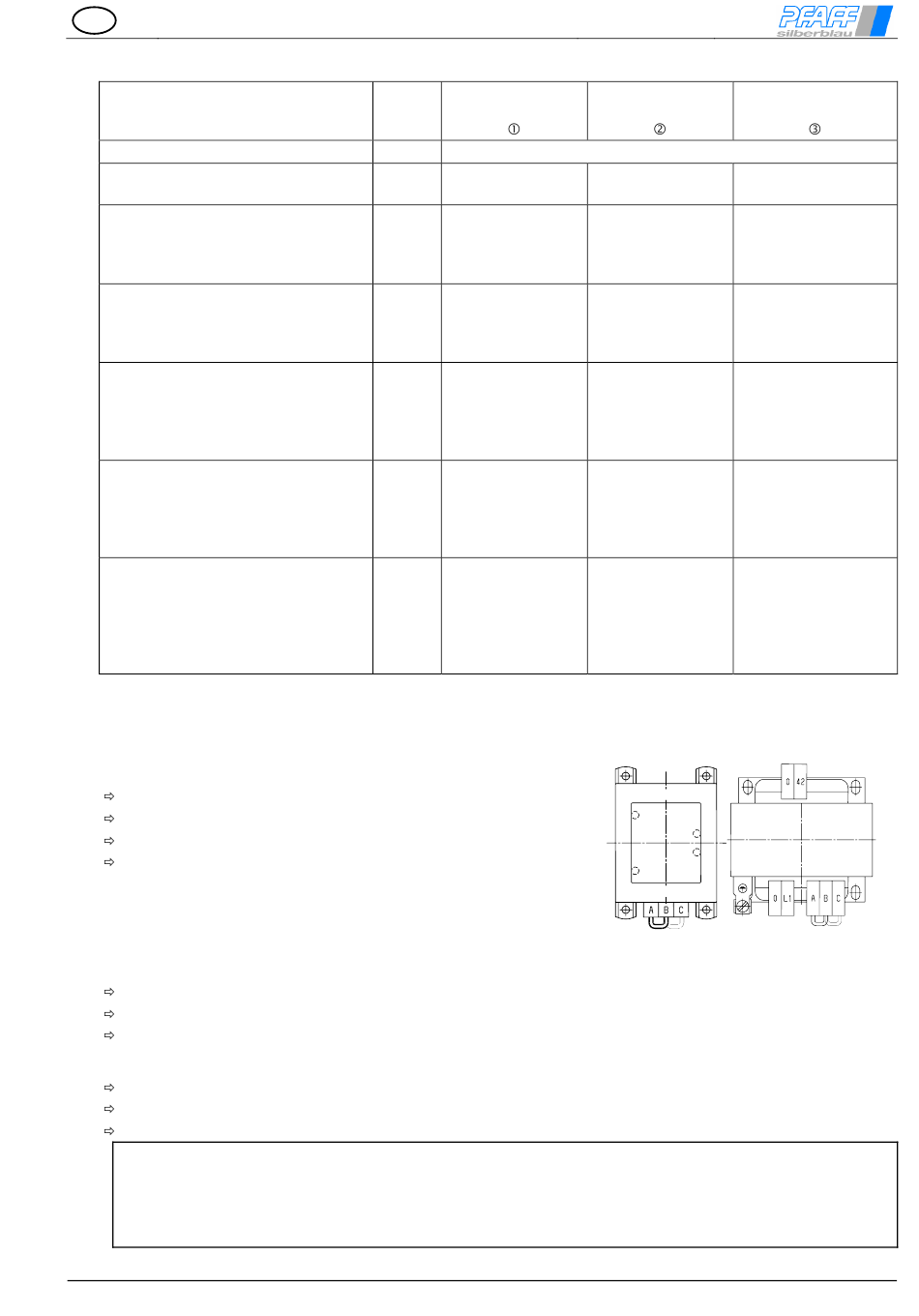

Transformator
transformer
380-420V 440-460V
380-420V 440-460V
page 28
