Electric wire rope winch >BETA II<
English

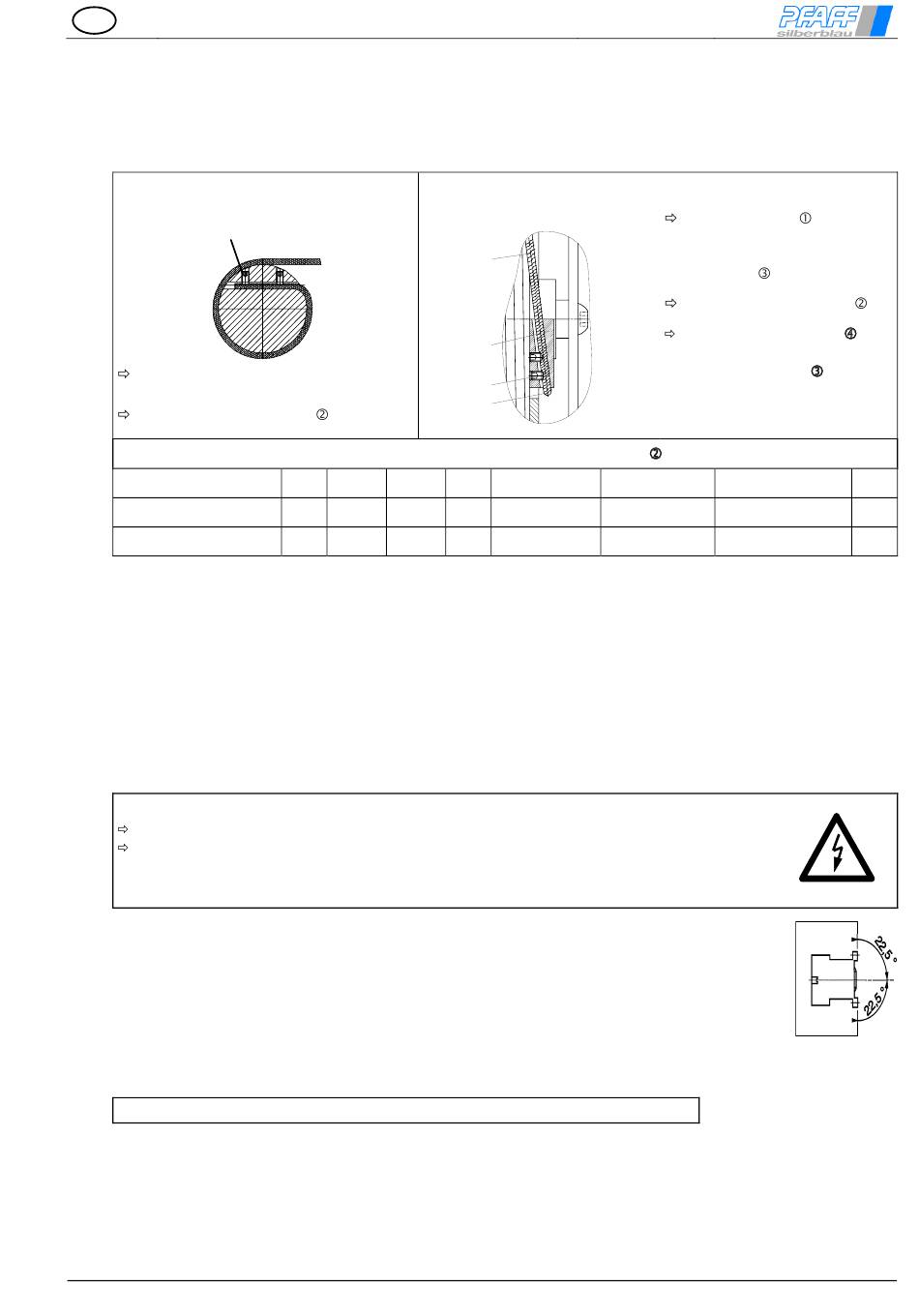

3.6. Wire rope attachment -
ATTENTION:
In standard design, the winch has two wire rope attachments. The rope may optionally be fixed on left or
right drum flange. The rope attachment is effectuated with 2 or 3 clamping screws.
Pay attentions to correct polarity of the actuating motor.
Size M 0 and special design
(several ropes)
2
Insert the rope in consideration of
winding direction
Tighten clamping screws
rope Ø
clamping screws
Tightening torque [Nm]
The technical data concerning minimum tensile strength respective wire rope type are to be
according to name plate respective information's in operating manual.
When the load is unguided, in special when hanging on a single rope, the right rope must be
chosen in accordance with the rope twisting behaviour.
In accordance to the rope diameter respective rope length, you must choose a special non-twisting
or non-rotating rope.
Calculate the rope length in such a way that at least 3 full turns of rope remain on the drum in
lowest load position.
Observe max. rope length.
4.

Electric Installation

Works on the electric installation may only be effected:
with cleared power supply
by trained and qualified electricians
Observe the regulations and standards of electric engineering.
In Germany, VDE regulations do apply.
4.1. Mounting indication for contactor control
The contactor control must only be mounted with vertical standing contactor.
Max. sloping position 22,5°.
For controlling the winch, an electric control is required
The respective standard electric control fitted to the electric wire rope winch is delivered with
the winch.
Observe the instructions mentioned below as well as the technical regulations of the respective country if
the electric control is provided on site. e.g. EN 60204 T1 and T32,
The manufacturer of the electric control takes the responsibility.
4.2. Indication EMV
The electric wire rope winch with control is designed for industry.
The winch has to be switched at max. 5 times/minute to accomplish the standards for electromagnetic
emissions EN DIN 50081-2).
EMV proceedings (filter) have to be carried out if the winch has to be switched more than 5 times/minute or
by using other electronic switching circuits (on site or delivered as option).
design changes under reserve
Standard (one rope)
.
Tightening torque for clamping screws
4
4; 5; 6 7; 8; 9
10
M 5
M 6
M 8
M 10
4,8
8,5
20
40
04.01.401
Size 1 – 5
1
3
2
4
11; 12; 13; 14 15; 16; 17; 18 19; 20; 21; 22; 23
M 12
M 16
70
170
Insert the rope
in consid-
eration of rope winding direc-
tion into the wire rope attach-
ment bore
Tighten clamping screw
The end of the rope
to look out from the wire
rope attachment
M 20
340
page 27
has
24
M 24
590
