Electric wire rope winch >BETA II<
English
Before taking into operation, please carefully read this operating instruction.
Observe the safety instruction!
File documentation!
1.
Prevention of accidents
1.1. Destined use
The electric wire rope winch >BETA< is a power operated winch fixed to a console for
lifting and lowering of loads.
Not suitable for use in explosive danger area.
Not suitable for use in corrosive atmosphere.
Alterations to the winch or fitting of accessories are only allowed with our written approval.
Pay attention to the technical data and functional description!
1.2. Regulations for the prevention of accidents
Observe any rules which are valid for the respective country.
Presently valid in Germany:
BGV D8 winches- lifting and pulling devices
BGV D6 crane
BGR 500 chapter 2.8 Suspension devices in hoist operation
EN 13155 Non-fixed load lifting attachments (German version)
DIN 15020 page 1 and page 2
EN 60204 T1 Electrical equipment of machines
EN 60204 T32 Electrical equipment of machines-hoists (VDE 0100 T726)
EC directive 98/37/EC
FEM 9.661, ISO 4308/1, ISO 4301/1
FEM 9.775, FEM 9.511
1)
in the respective version
1.3. Safety instructions
Operation, installation and maintenance work should only be executed by:
Competent, qualified persons
(definition of experts acc. to IEC 364)
Qualified persons for reasons of their training, experience and instruction are persons who do their necessary activities
without danger and who can avoid this danger due to their knowledge of directives, regulations for the prevention of
accidents and standards. These persons are responsible for the security of the installation.
Moving of people by the winch or staying in danger zone is forbidden.
Moving of loads over people is strictly forbidden.
Never touch moving parts.
Defects must be repaired immediately by competent trained personnel.
1.3.1. The load
must not be left suspended without supervision,
must not be allowed to swing
must not fall into the wire rope
must not be operated in areas which cannot be overlooked. It must be possible to overlook the entire lifting
area.
1.3.2. The rope
should only be used for lifting, lowering or pulling of various loads and must not be used for
any other purpose
when filled to its capacity the drum flanges must project not less than 1.5-times the diameter
of the rope
examine and service regularly acc. to DIN 15020 page 2
in lowest position at least 3 full turns of rope should remain on the drum when loaded

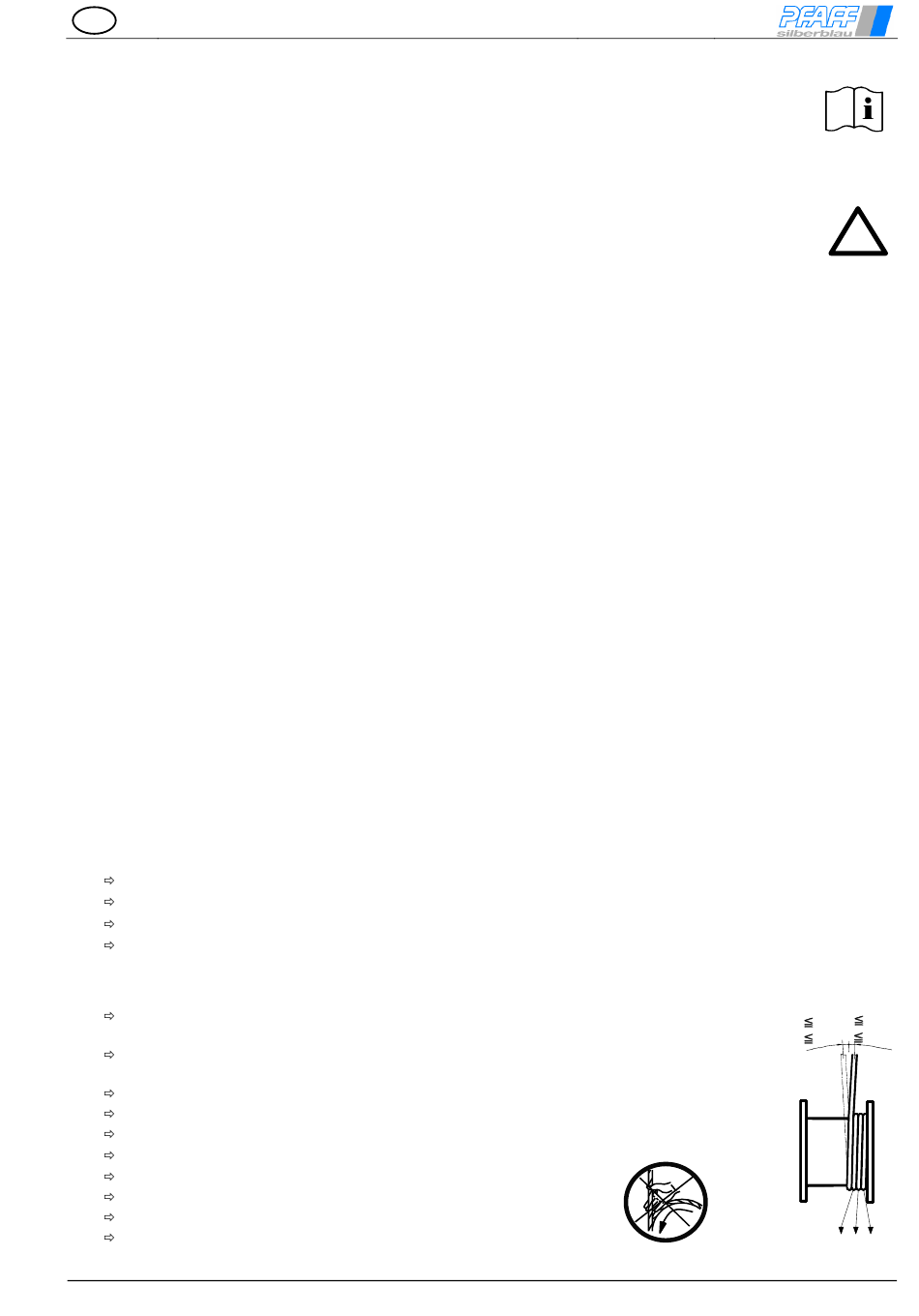

fleet angle (see picture)
for standard wire rope ≤3°,
for special rope ≤1,5°
do not touch the rope inlet
only handle with safety gloves
slowly position the slack rope to the load
design changes under reserve
04.01.401
)
1
page 22
!
3°
3°
1,5°
1,5°
3. 2. 1.
