Invacare®EC-Track™

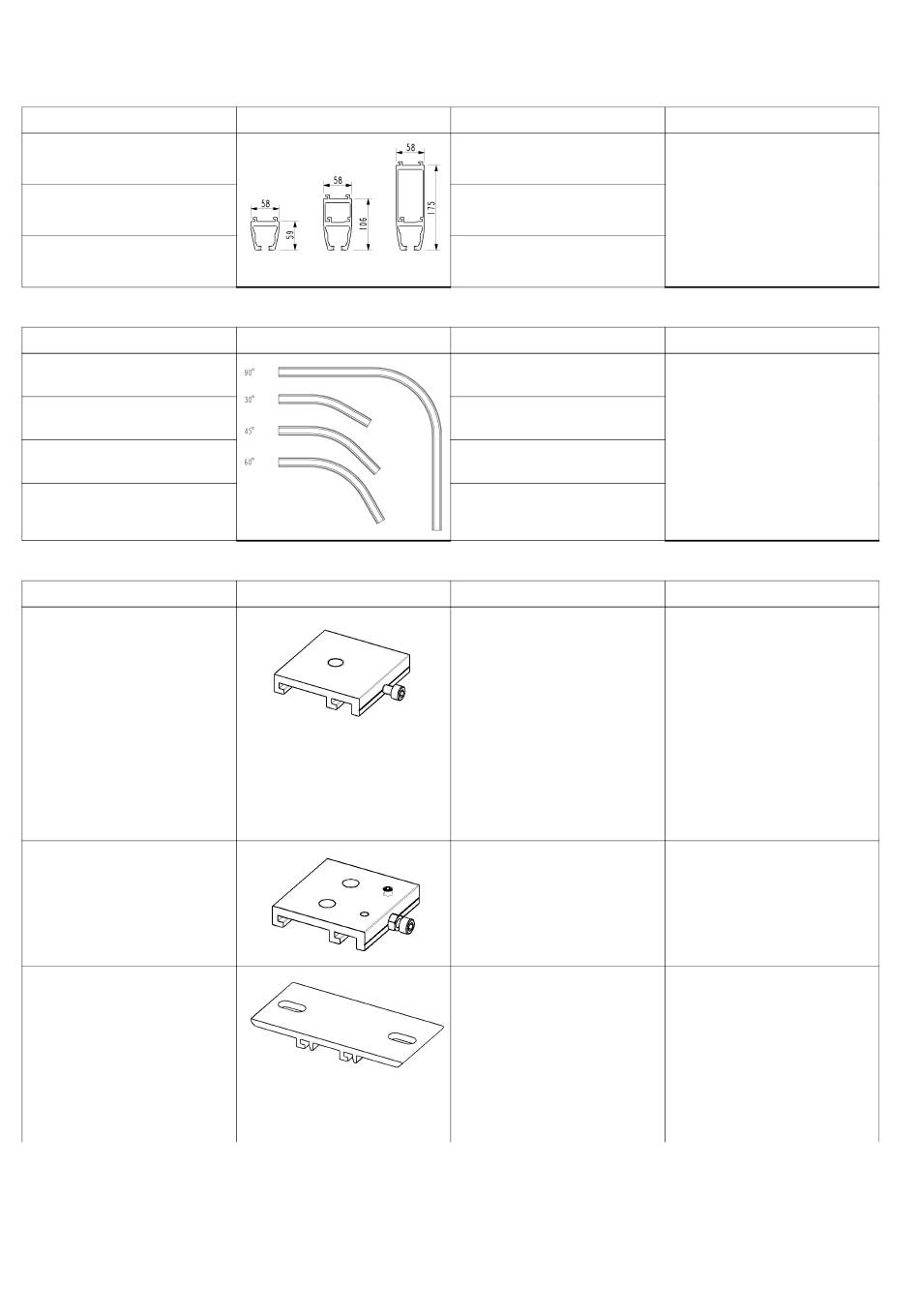

2.4 Rails, Brackets & Accessories
Rail profiles S, M, L
Type
Rail profile S
Rail profile M
Rail profile L
Curves 30°, 45°, 60°, 90°
Type
Curve 30°
Curve 45°
Curve 60°
Curve 90°
Ceiling brackets
Type
Ceiling bracket, Quick
Ceiling bracket, Quick, Traverse
Ceiling bracket, Standard
8
Description
Max. length = 7.8 m
Max. span without support: 2 m
Max. length = 7.8 m
Max. span without support: 4 m
Max. length = 7.8 m
Max. span without support: 8 m
Description
Rail profile S with curve 30° and 2
x 200 mm straight rail
Rail profile S with curve 45° and 2
x 200 mm straight rail
Rail profile S with curve 60° and 2
x 200 mm straight rail
Rail profile S with curve 90° and 2
x 600 mm straight rail
Description
Ceiling brackets with hidden
fixing parts. To be used for
ceiling installation of single-rail
and traverse systems.
Sizes (WxDxH):
•
30x68x14 mm
(for curves)
•
70x68x14 mm
(for ordinary ceiling
supension)
•
120x68x14 mm
(for rail coupling)
Brackets for traverse system and
side hung wall installation
The bracket is mounted
beneath the traverse trolley,
at the underhung and partly
between-hung traverse assembly.
Ceiling brackets with visible fixing
parts
To be used for ceiling installation
of single-rail and traverse systems.
Sizes (WxDxH):
•
30x146x14 mm (for curves)
•
70x146x14 mm (for ordinary
ceiling supension)
Info
color: white
Info
All curves have a radius of 400
mm.
All curves are supplied as right
or left curves. Characteristics
for right and left, see chapter3.5
Curves, page 18
Info
Installation: See chapter 3.2
Ceiling Mounting System, page 13.
1586749-B
