7. MANAGER
7.6 DEVICES

7.6.2 UDAT

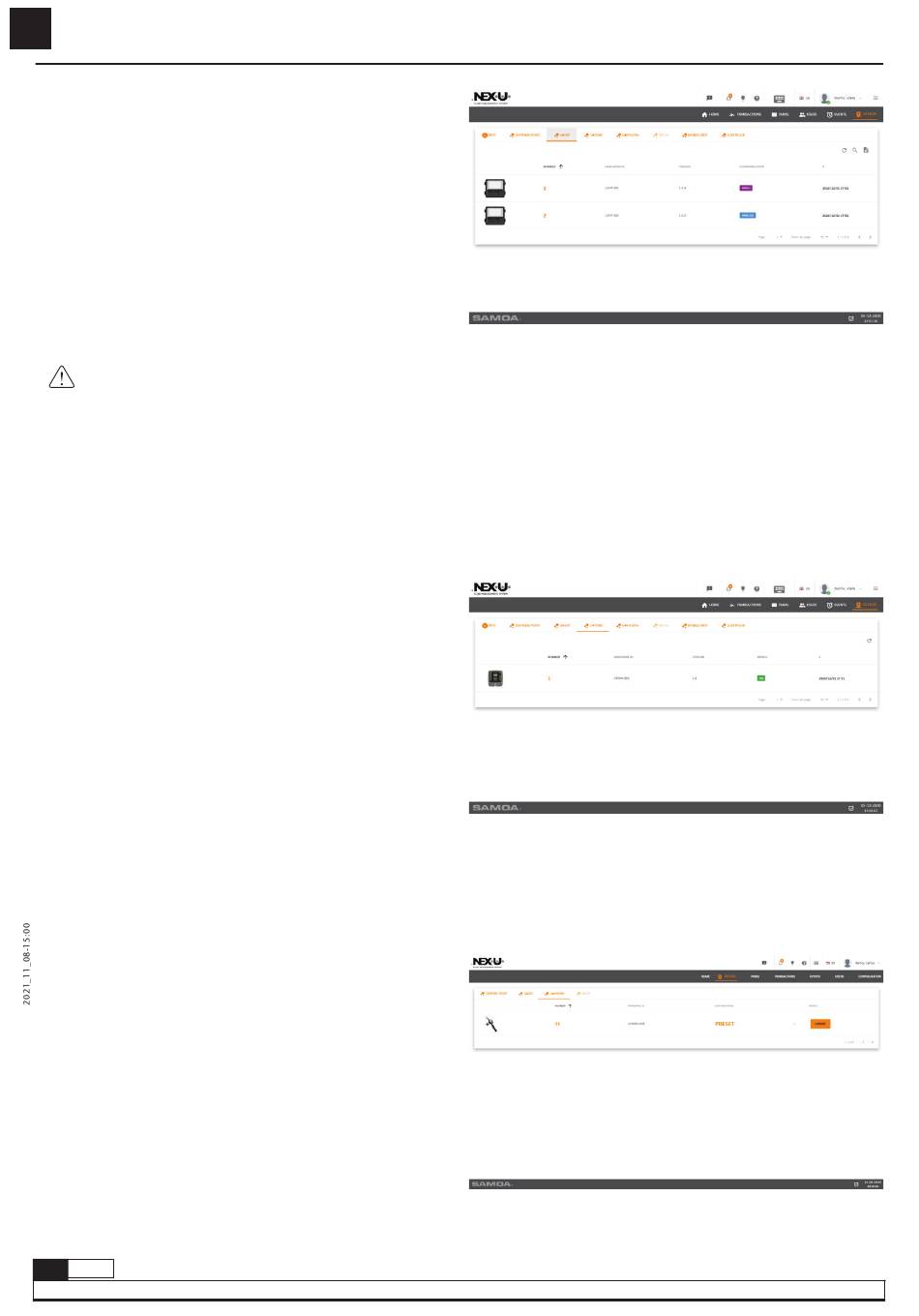

This screen shows a complete situation of the connected UDats. Also in
this window you can change some of the parameters.
• First column: There is a little picture of the device.
• Second column: The address is shown. It represents the number of
the local parameter.
• Third column: It shows the description of the device. This
description is the one that was set in the configuration menu.
• Fourth column: It shows the loaded device firmware version.
• Fifth column: It shows the way the device is connected. It can be
either wired or Wi-Fi (Wireless) linked.
WARNING: If Wireless is shown, it could not mean that the
device is wireless connected. It means that it the device is
communicating to the UNet through a device that is wireless
connected.
• Sixth column: A date/time is shown as well. This indicates the last
moment in which right communication was held between the UNet
and the device. If date/time is old (more than a few minutes), it
means that there is something wrong with the communication.

7.6.3 UTANK

This screen shows a complete situation of the connected UTanks. Also in
this window you can change some of the parameters.
• First column: There is a little picture of the device.
• Second column: The address is shown. It represents the number of
the local parameter.
• Third column: It shows the description of the device. This
description is the one that was set in the configuration menu.
• Fourth column: It shows the loaded device firmware version.
• Fifth column: It shows the status of the device. In the above
screenshot you can see that all of them are OK (fully operational). If
BYPASS is shown, it means that the solenoid valves connected to that
device are open
• Sixth column: A date/time is shown as well. This indicates the last
moment in which right communication was held between the UNet
and the device. If date/time is old (more than a few minutes), it
means that there is something wrong with the communication.

7.6.4 UVISION+

This screen shows a complete situation of the connected UTanks. Also in
this window you can change some of the parameters.
• First column: There is a little picture of the device.
• Second column: The address is shown. It represents the number of
the local parameter.
• Third column: It shows the description of the device. This
description is the one that was set in the configuration menu.
• Fourth column: It shows the dispense mode for the UVision+ (you
can choose between NORMAL and PRESET)
• Fifth column: It shows the update button.
