6. SOFTWARE CONFIGURATION
6.2.2 DEVICES

6.2.2.1 UTANK

If there are UTanks in the system, this is the first item you have to create.
The parameters are very simple.
Description: You can make a brief description of the UTank (i.e.: North
Tank Room)

6.2.2.2 TANK

First of all I have to say that this is not a device of the system. In this menu
you have to define the parameters of the tank that contains each product
already defined in the previous tab.
• Description: You can make a brief description of the Tank. Please
be aware that we are talking about the product contained in the
tank but the tank itself.
• Local Address: It gives a number to the tank just for guidance.
• Select Product: You have to choose the product that is contained
in the tank. The products will be the ones already defined in the
previous tab.
• Choose a colour: You can associate a colour to the product
contained in the tank.
• UTank: It sets if the tank is controlled by a UTank or not.
• If the tank is not controlled by an UTank (Select NO) you have to set
the current level of the product.
If the tank is controlled by an UTank (Select YES) you have to set the
UTank and channel in which the tank probe is connected. A drop-down
menu will appear and it will show several options like UTANK 00X/Y in
which X represents the address of UTank and Y represents the channel of
probe in the UTank.

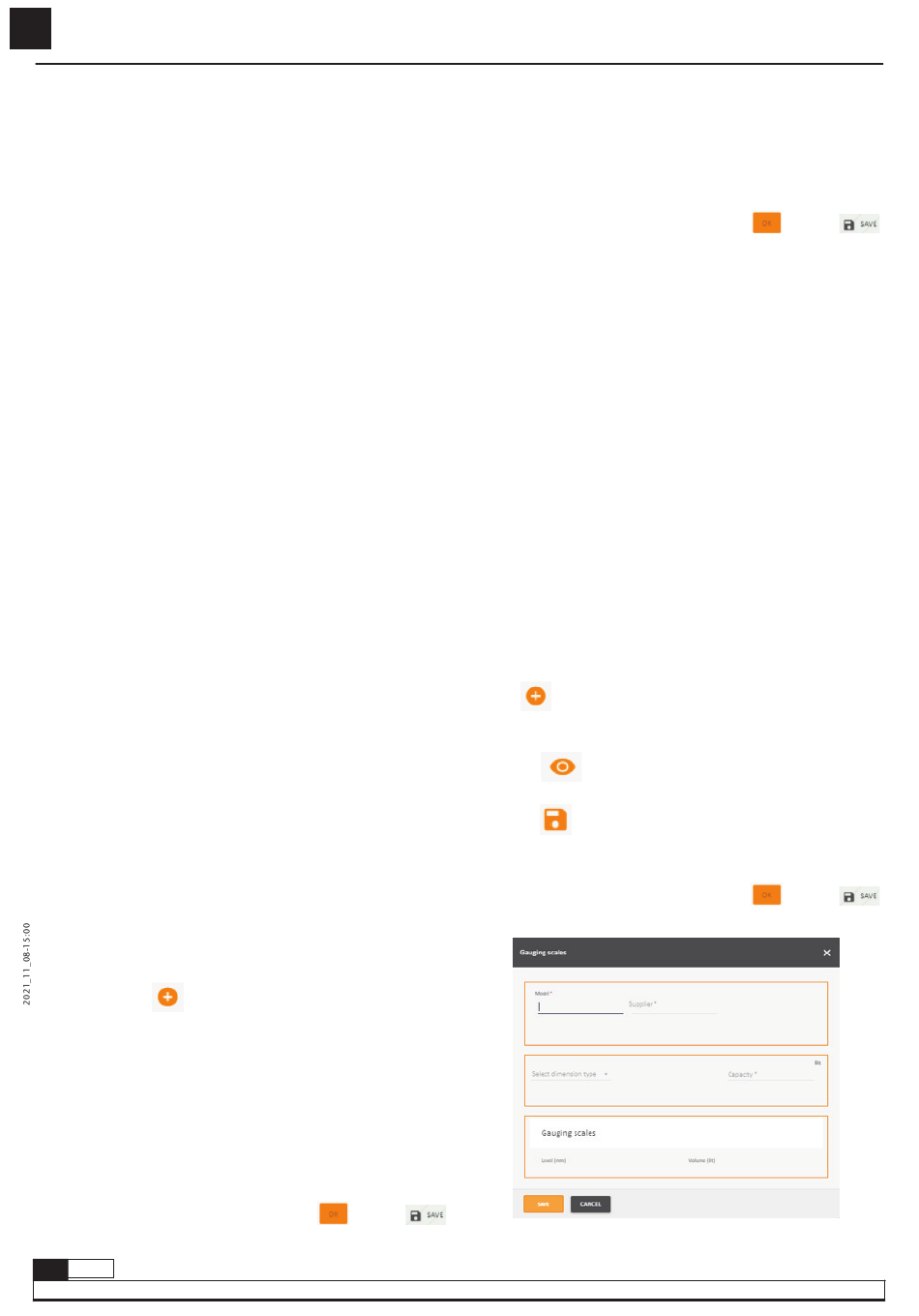

In that window you have to fulfil the following data:
• Model: Insert a name for that model of tank
• Supplier: Insert the supplier of the tank (this is a compulsory data)
• Select Dimension Type: If this option is chosen, another window
appears. This window shows the three possible predefined models:
parallelepiped, horizontal cylinder and vertical cylinder. In each
option, the main parameters are requested.
• Capacity: Once you have inserted the dimension type, the capacity
will appear automatically.
• Gauging Scales: Once you have inserted the dimension type, the
gauging scale will appear automatically.
• Select Management Type: You can choose either the tank is used
for fresh product or waste product.
Apart from the icon you will see another two icons

6.2.2.3 UDAT

• Description: You can make a brief description of the keypad (i.e.:
Quick Service Keypad)
• Local Address: The system sets a local address automatically. You
can rename it just in case you need it.
Once you have set all the parameters, please press
30
838 861 R. 11/21
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
Communication Type: You can set if the UTank communication is either
wired or wireless. With this Utrack version, only wired is enabled.
Once you have set all the parameters, please press
If you need to make a continuous measuring of the liquid level that in the
tank, you will have to choose VOLUMETRIC PROBE and you will have to
set the pressure probe setting for the probe that is inserted in this tank.
As default, the Samoa standard probes are set to 400 mBar.
If you only need to make a digital measurement (contact signal) you will have
to choose LEVEL SWITCH then you will have to set the warning messages.
Then you have to activate the warning messages for both cases.
• Activate Level Warning: You have to set a warning level in which
the system will show a warning in the system with the text you can
insert in the Warning level message option.
• Activate Stop Level: You have to set a Stop level in which the
system will show a warning in the system with the text you can
insert in the Stop level message option. In this case, once this level
is reached, the system will not allow delivering the product. This
level has to be set so that the pump does not suck air.
• Select Tank: You can choose the shape of the tank. If you click, you
will see a drop-down menu. In that menu you will find several
predefined tanks.
In any case, if the installed tank is not in the list, you can define the tanks
with the
If you press
change the parameters of the tank that has already been selected.
If you press
*.cuv table where the height and volume relationship is defined. This file
has to be created and exported by the UTrack.
Once you have set all the parameters, please press
and then .
button. If you press it a pop up window will appear.
a pop up window appears and you will be able to
a pop up window appears and the system asks for a
and then .
and then .
