4. SETTING PROCEDURE AND DEFINITION OF THE PARAMETERS

4.5.6 LOCAL PARAMETERS SETUP ON UVISION

This unit can be paired with a UMeter+, UValve or UCount unit.

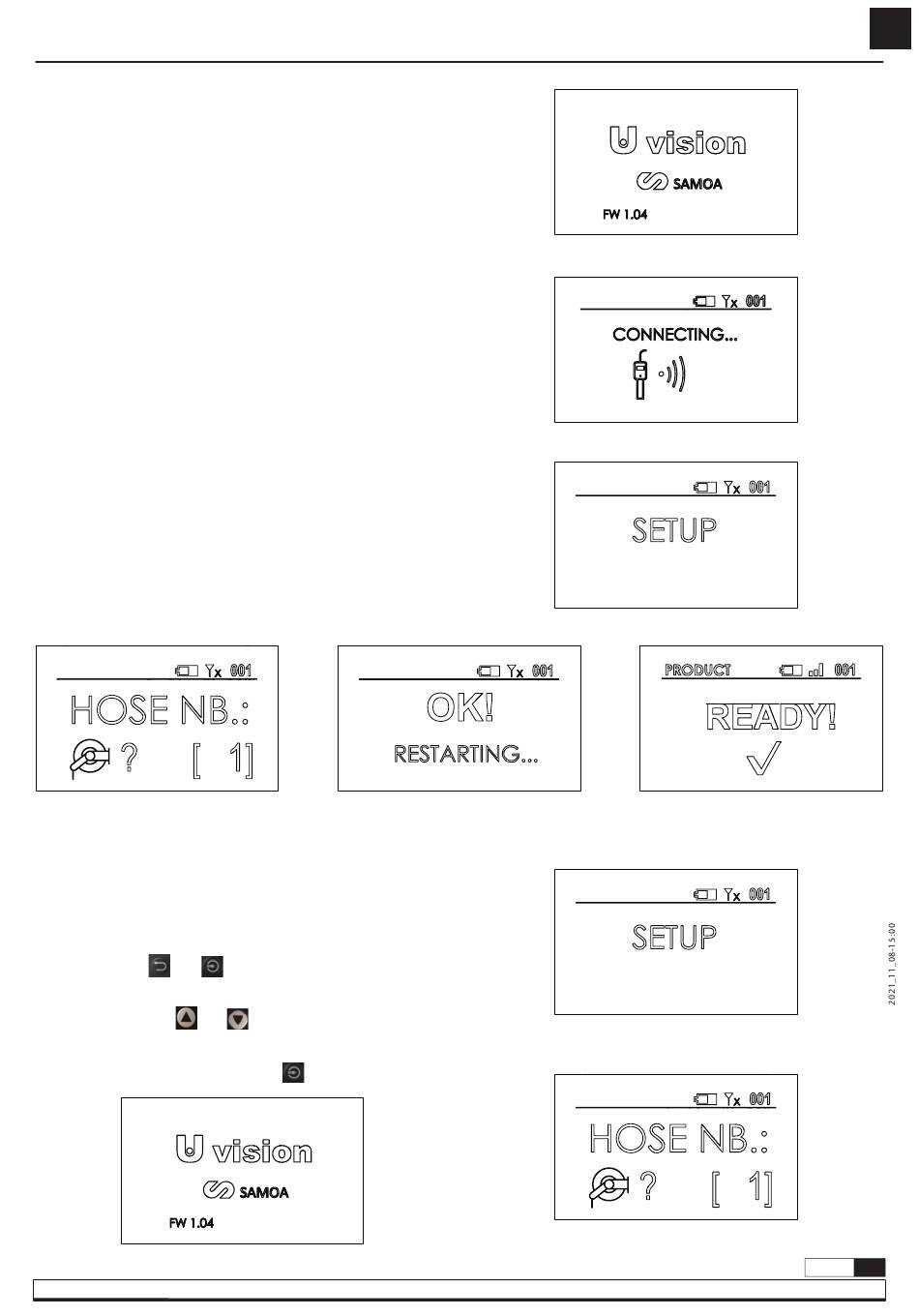

Pressing the power button shows the start screen (Fig. 1) during a short
time. In the bottom left screen it is shown the UVision firmware.
Then the unit will try to link showing the connecting screen (Fig. 2). This
screen will disappear after a brief moment
If the unit has already been configured, but if it has not been paired then
the message will stay on screen waiting for configuration.
NOTE: make sure that the UMeter+, UValve or UCount unit is powered
on before pairing the UVision.
Follow the below instructions to pair the UVision:
Starting from the connecting screen (figure 2) press and hold the power
button until "setup" is shown on the screen (figure 3). Release the button.
Next the configuration screen is shown automatically (figure 4). The unit
remains waiting for the hose reel number that you want to associate.
The hose reel number starts to increase automatically. When the desired
hose reel number is shown, press and release the power button to set it.
In case that the desired hose reel number is missed, press and hold the
power button until the counter restarts.
Once that the hose reel number is set, the screen shows that the
configuration is performed and the unit restarts (Fig. 5). After restarting the
screen shows that the UVision is configured and ready to operate (Fig. 6).
Fig. 4
4.5.7 LOCAL PARAMETERS SETUP ON UVISION+
This unit can be paired with a UMeter+, UValve or UCount unit.
Pressing any button, the screen shows the start screen (Fig. 1) during a
short time. In the bottom left screen it is shown the UVision firmware.
Press and hold the and
screen (figure 3). Release the buttons.
You will have to use the and
number that you want to associate.
Once you have reached the number, press
