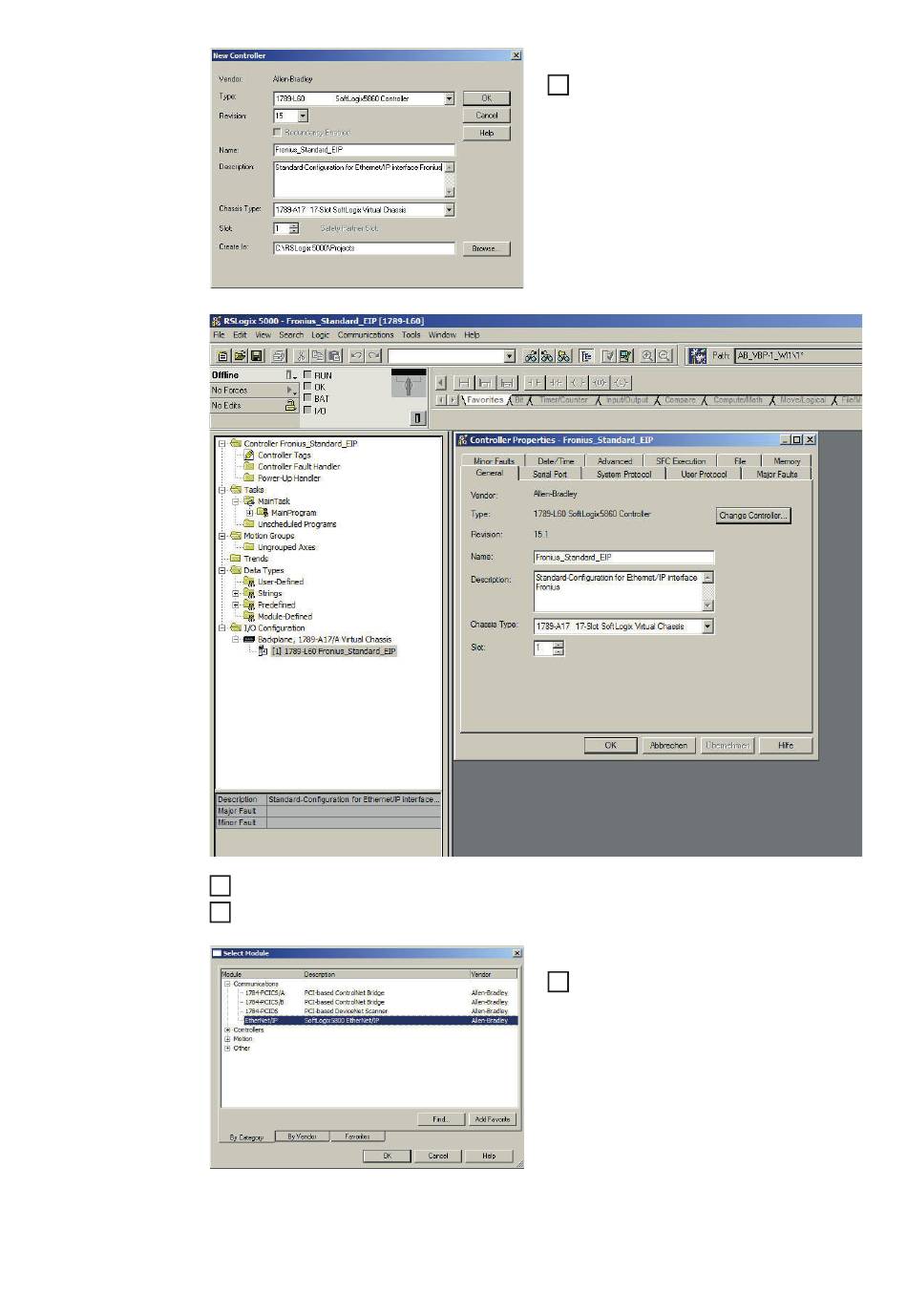

Right-click on Backplane, 1789-A17/A Virtual Chassis in the I/O configuration folder
Select New Module
New Controller is displayed
Fill in the data and click OK
3
The controller properties and the following
data structure are displayed:
-
Controller
-
Tasks
-
Motion Groups
-
Data Types
-
I/O configuration
Select Module is displayed
Select EtherNet/IP SoftLogix5800
6
EtherNet/IP and click OK
