4 Mechanical installation
Standard devices in the power range 15 ... 30 kW
Thermally separated mounting (push−through technique)

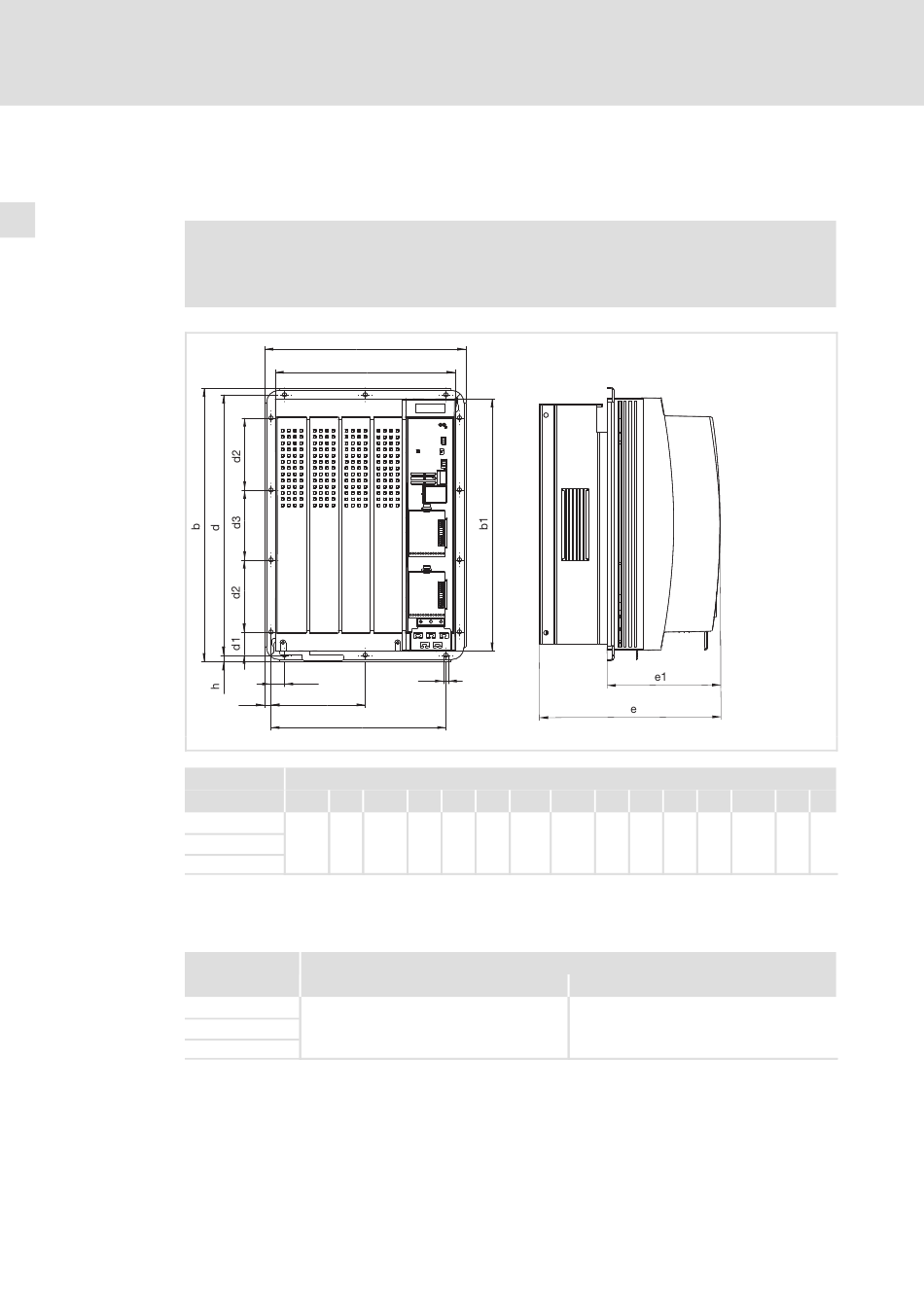

4.2.2 Thermally separated mounting (push−through technique)
For this mounting variant you require the controller type E82DV...
)
Note!
Before assembling the controller, please read the documentation for the
components connected on the supply side (mains choke, filter).
h
8200 vector
E82DV153K4B
E82DV223K4B
E82DV303K4B
1)
If the function module is attached: observe mounting clearance and cable bending radius. The terminals of function
modules in PT design protrude above the housing by 8 mm.
Cutout in the control cabinet
8200 vector
E82DV153K4B
E82DV223K4B
E82DV303K4B
122
a
a1
g
c1
c2
c3
a a1 b b1 c1
279.5 250 379.5 350 19
Width
236
l
Dimensions [mm]
c2 c3 d d1 d2
131 243 361.5 32 100
Dimensions [mm]
8200vec304
1) 1)
d3 e e1 g h
97 250 159.5 6 9
Height
336
EDK82EV903 DE/EN/FR 5.1
