BML-M0 -I -A
Magnetic Tape – Incremental Magnetically Coded Position Measuring System
3

Construction and function

3.1

Magnetic tape design

BML-M02/3-...: +0.2 mm
1)
BML-M07-...: ±0.2 mm

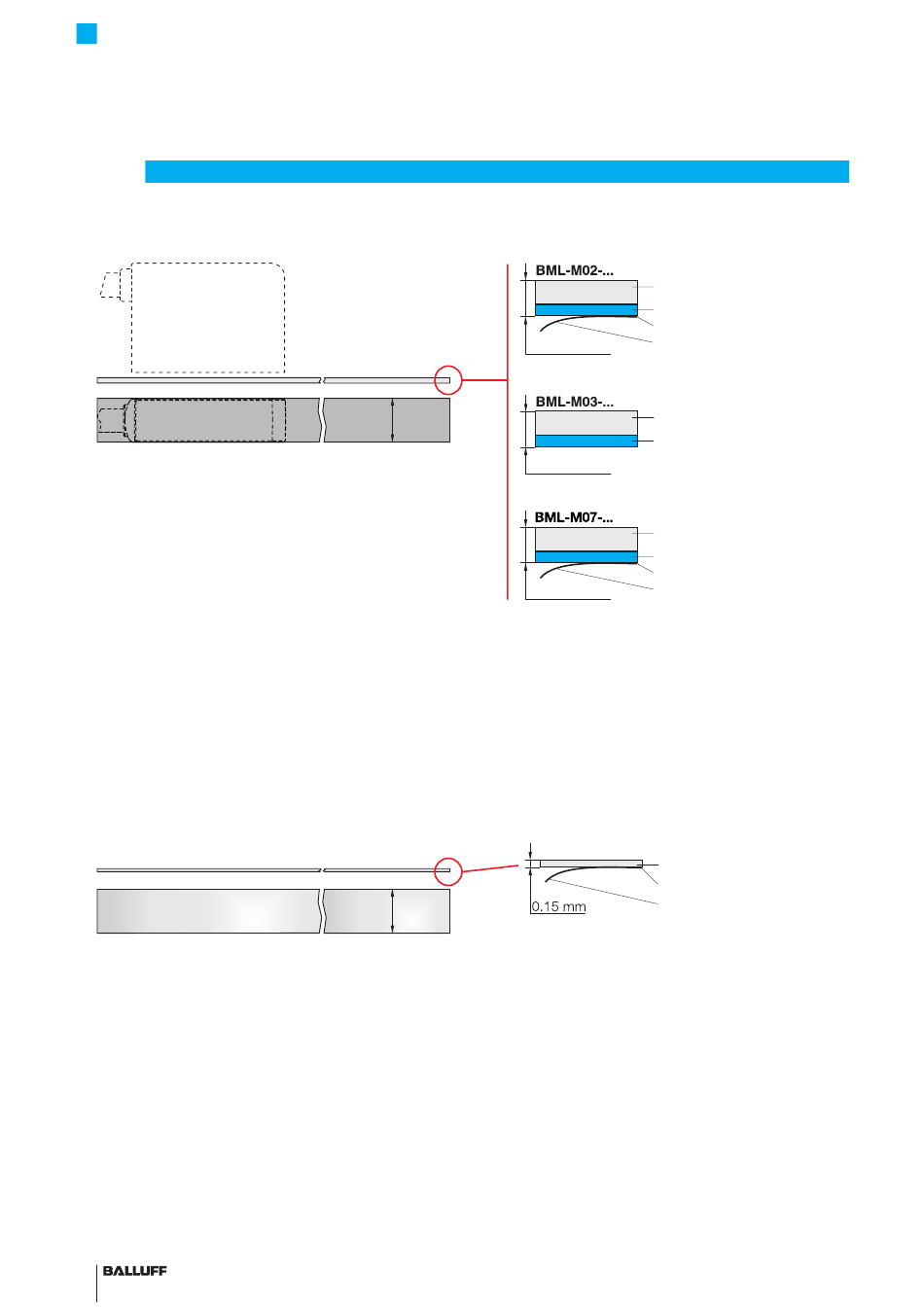

Fig. 3-1: Magnetic tape design
Max. length: The maximum delivery length of the
magnetic tape is 48 m.
Magnetic tape: The magnetic tape contains a track with
alternating magnetic north and south poles. Some variants
have a second track with reference points.
Carrier film: The carrier film holds and stabilizes the tape.
3.2

Cover strip design

Fig. 3-2: Cover strip design
The cover strip is used to protect the magnetic tape
mechanically.
The cover strip is included in the scope of delivery for the
BML-M0_-I_ _-A3-... or can be ordered separately as a
roll (accessories).
6 english
_
-...
1)
10
10+0.2 mm
Magnetic tape
Carrier film (thick)
Adhesive layer
Protective film
1.55±0.1 mm
Magnetic tape
Carrier film (thick)
1.35±0.1 mm
Magnetic tape
Carrier film (thick)
Adhesive layer
Protective film
1.43±0.2 mm
Cover strip
Adhesive layer
Protective film
