Table of contents

1. Contents of delivery ....................................................................................................... 11

2. Intended use .................................................................................................................. 11
3. How the filters work ....................................................................................................... 12
4. Installation conditions ..................................................................................................... 12
5. Installation ..................................................................................................................... 12
6. Commissioning ............................................................................................................... 13
7. Operation ...................................................................................................................... 13
8. Maintenance .................................................................................................................. 13
9. Warranty ....................................................................................................................... 13
10. Maintenance manual .................................................................................................... 14
11. Operator's responsibilities ............................................................................................ 15
12. Fault rectification .......................................................................................................... 15
13. Technical data .............................................................................................................. 16
10
2A
6
5
1
2
3
4
9
10
8
7
12
11

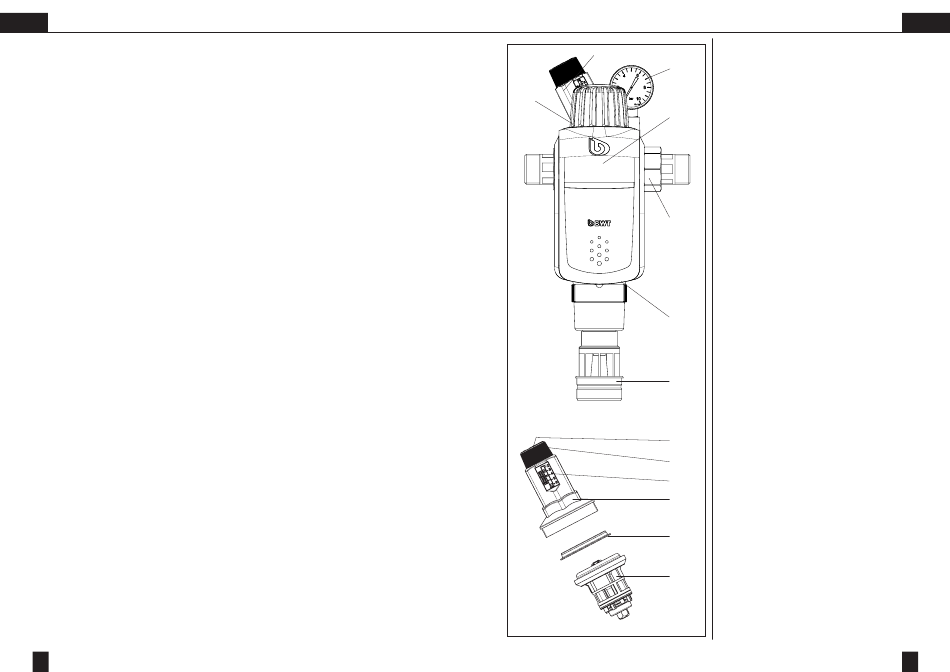

1. Contents of delivery
BWT R1 RSF backwash filter comprising:
1. Cover hood (brass head)
2. Connection module with connection screws and
seals
3. Transparent inspection cylinder with filter element
4. DT-connection for rinsing water
5. Rotary control knob for backwashing
BWT R1 HWS (hot water system) domestic water
station comprising:
1. Cover hood (brass head)
2A. Connection module HWS with pressure
reducer, backflow preventer, connection screws
and seals (with control screw or connection
option for inlet pressure gauge)
3. Transparent inspection cylinder with filter
element
4. DT-connection for rinsing water
5. Rotary control knob for backwashing
6. Outlet pressure gauge
7. Spring cap
8. Display showing outlet pressure setting value
9. Clamping screw
10. Rotary knob for pressure reducer
11. Insertion of pressure reducer
12. Slide ring
2. Intended use
The filters are designed to filter drinking water and
process water. They protect the water pipes and any
connected aquiferous system components against
malfunctions and corrosion caused by foreign par-
ticles such as rust, swarf, sand, hemp, etc.
The filters cannot be used with chemically-treated
circulating water, process water or cooling water for
flow cooling.
If the water contains coarse particles of dirt, a coar-
se dirt separator must be connected upstream.
The filters are not suitable for oils, fats, solvents,
soaps and other lubricating substances. Nor are
they suitable for separating water-soluble substan-
ces.
Important: system installations and essential modifi-
cations should only be carried out by a water utility
company or an installation company registered on a
water utility company's installers' list, in accordance
with AVB Wasser V, § 12.2 (German Water Supply
Act).
