3. INSTALLATION

3.1 Rear connection fastening

•
The connection plate can be welded to the pillar or fastened to the masonry wall using M8 screws (example in Fig.10).
WARNING: If the wall is not sufficiently resistant or if it is made of hollow bricks, we recommend using chemical bolts for
refer to the instructions provided with the purchased bolts).
M8 screw (

3.2 Operator installation on rear connection

•
Fasten the operator to the connection using the pin and the dowel supplied (see Fig.10).
!
Warning
Handle the operator with care during assembly and disassembly from the relevant seats, to avoid accidents to
those who handle it or to any persons in the vicinity.

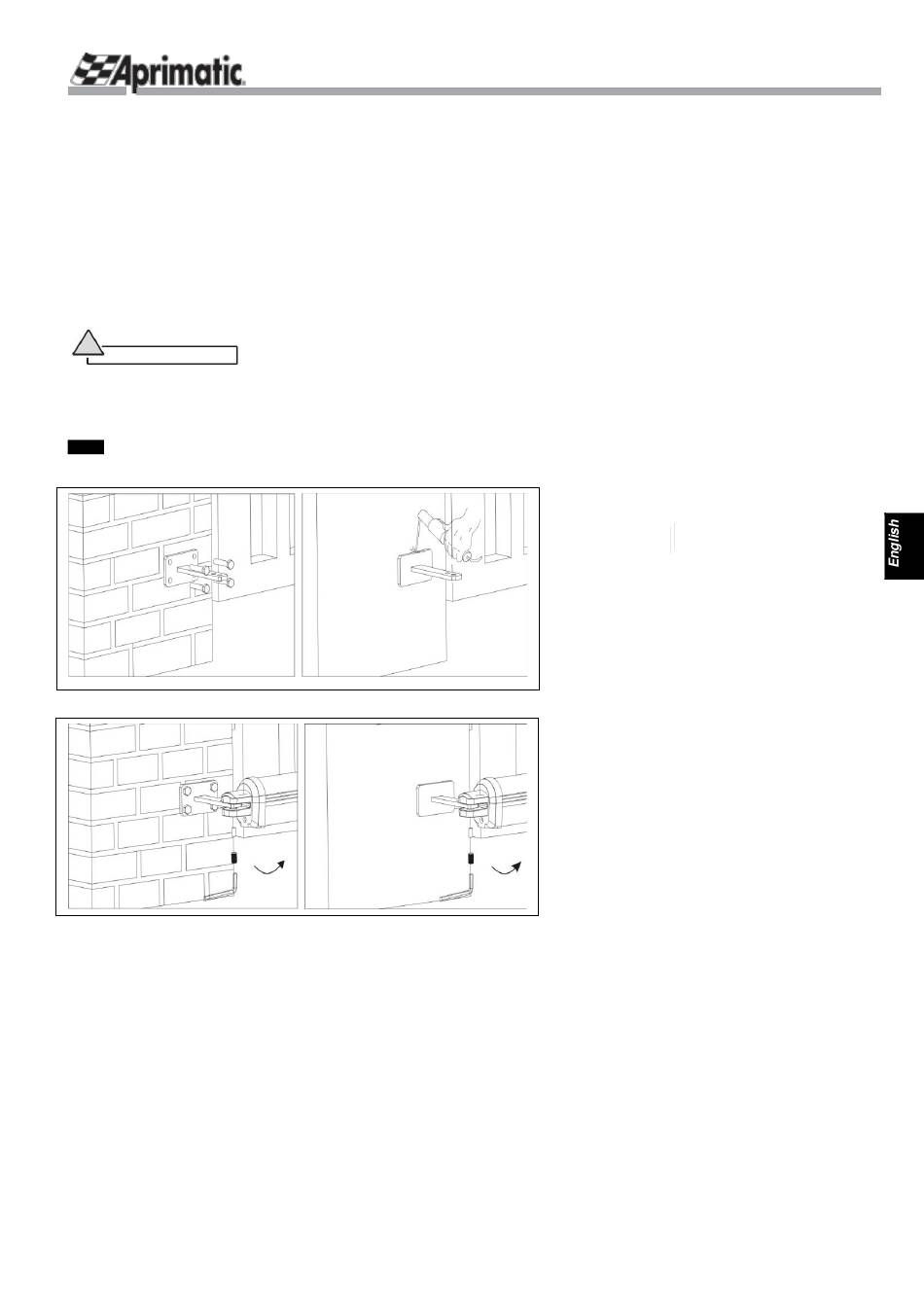

Fig.10
R251
-19-
SWING GATES
