3. Tighten the screws (hexagon socket WS5) crosswise.
Tightening torque: 10 ±1 Nm
4. Keep tightening the screws until all of them have
reached the tightening torque.

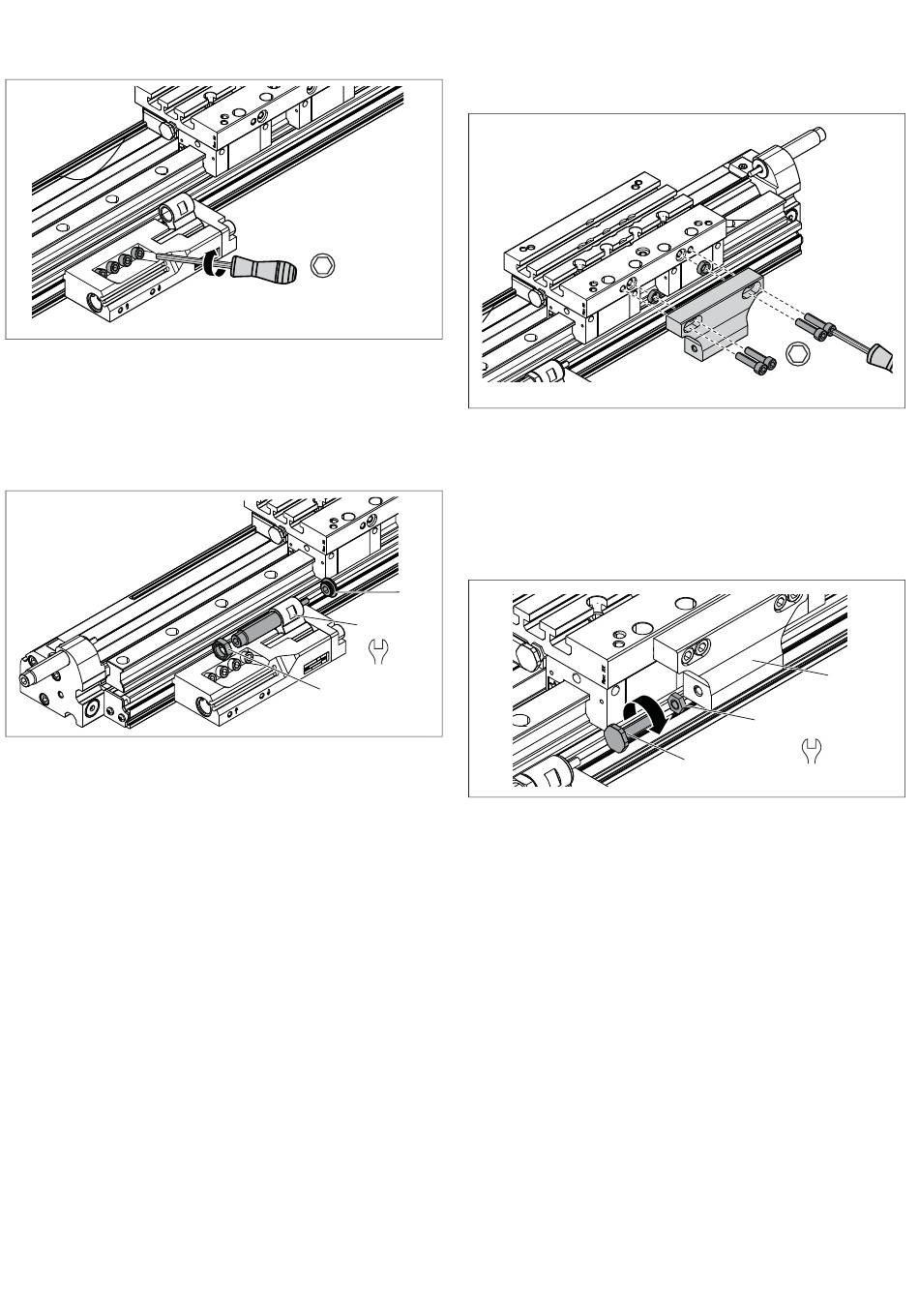

Fitting the shock absorber
1. Tighten the stop washer (10) using an Allen key
(wrench size WS6). Secure the intermediate stop
detent (wrench size WS16).
Tightening torque: 10 ±1 Nm
2. Tighten the shock absorber manually up to the stop
washer.
3. Screw the locking nut (9) onto the shock absorber.
Secure the intermediate stop detent (wrench size
WS16).
Tightening torque: 6 Nm
4x
SW 5
M = 10 ± 1 Nm
D
10
SW 16
9
Mounting the stop bracket
1. Fasten the stop bracket with four screws
(hexagon socket WS5) and two centering rings
as shown in the figure.
2. Tighten the screws crosswise.
Tightening torque: 10 ±1 Nm
Mounting the fine adjustment
1. Screw the nuts (12) to the fine adjustment (11)
(wrench size WS10).
2. Screw the fine adjustment to the stop bracket (13)
(for adjustment, see "Adjusting the fine adjustment").
4x
SW 5
M = 10 ± 1 Nm
D
13
12 SW10
11
