AVENTICS
| RTC-CG/RTC-HD/CKP | R412025608–BAL–001–AA | English

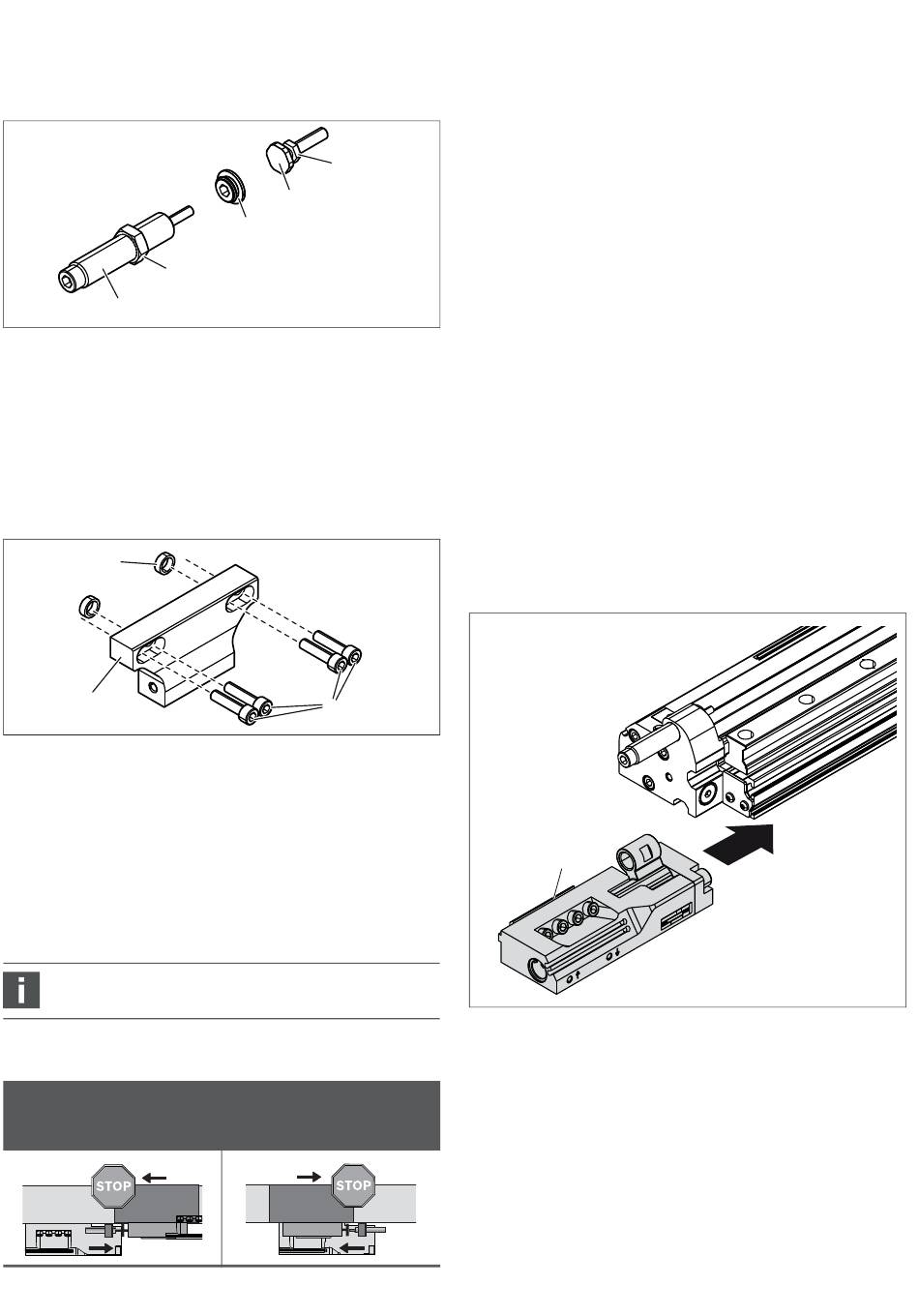

The shock absorber must be selected according
to the application.
9
8
8 Shock absorber
9 Lock nut
Parts kit for the stop bracket
The stop bracket is fastened to the slide.
It is available in different sizes adapted to the piston size
of the cylinder (see online product catalog).
15
13
13 Stop bracket
14 Screws
5
Effective Direction
of Intermediate Stop
The orientation of the shock absorber and fine
adjustment determine the effective direction.
The effective direction is always opposite
to the direction of travel.
The following example applies for horizontal installation:
Direction of travel (1)
to the left/effective
direction (2) to the right
1
2
12
11
10
10 Stop washer
11 Fine adjustment
12 Nut
14
15 Centering rings
Direction of travel (1)
to the right/effective
direction (2) to the left
1
2
The following applies for vertical installation:
W
Direction of travel up/effective direction down
W
Direction of travel down/effective direction up
The intermediate stop only functions in one slide travel
direction.
To change the effective direction, perform the following
steps:
W
Rotate the shock absorber by 180°
W
Mount the fine adjustment to the side opposite the
stop
6
Mounting
Preparation
1.
Make sure the system is not under pressure.
2.
Make sure that the system part for which the pressure
is switched off cannot be switched on.
3.
WARNING! Completely vent the rodless cylinder
on both sides prior to the installation.
4.
If necessary, remove components from the slide.
Fastening the intermediate stop
on the cylinder
5
1.
Slide the intermediate stop with sliding block(5) into
the cylinder groove.
2.
Move the intermediate stop to the desired position.
10
