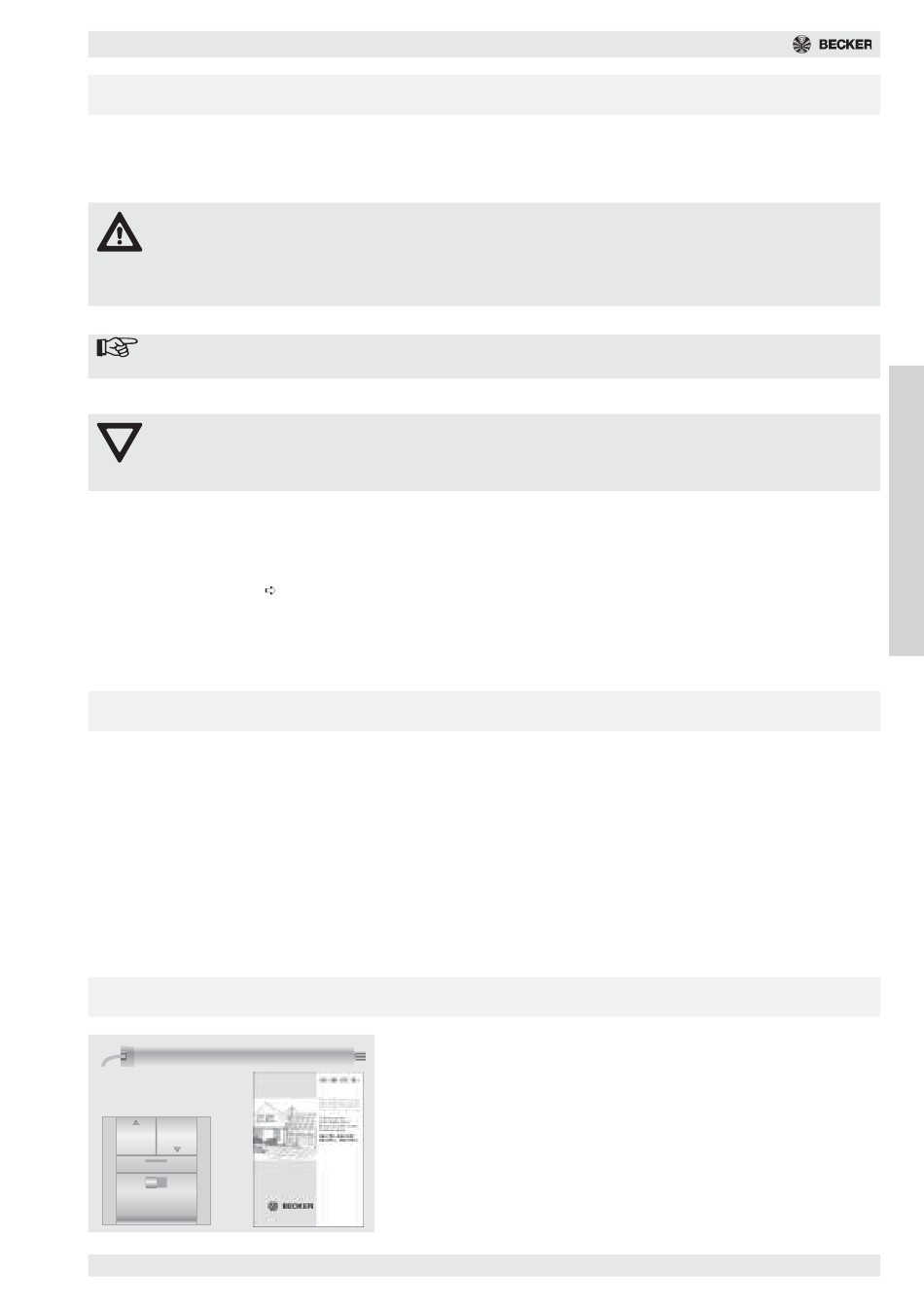

Operating Instructions R8/17RF - R40/17RF and R8/17RF+ - R20/17RF+
These BECKER roller shutter drives are intended exclusively for operating roller shutters. For reasons of product liability, other
usage will only be permitted with BECKER's prior approval.
The electrician must physically inspect the masonry to ensure stability of the roller shutter casing (torque of the drive plus
weight of the roller shutter).
Caution
These drives can only be operated with conventional switching elements (switches, timers, etc.).
Operation occurs exclusively with the TouchControl by the provided radio frequency transmitter.
Electrical connections must be performed by a qualified electrician. The power supply must be disconnected
prior to installation, please give this information to the responsible electrician.
Use of lifting safety catches
Note
This kind of mounting can only be applied with RF+ drives.
When the motor is installed, it automatically detects lifting catches in the form of axle shaft catches, which are mounted instead
of springs between the barrel and the roller shutter armour.
Attention
Only use lifting catches with sufficiently rigid roller shutter slats manufactured in aluminium, steel or wood.
The armour must not protrude above the guide rails in the closed position, as otherwise there is the danger
that the joint between the two top slats will be too heavily loaded and will be damaged.
The roller shutter armour must be unwound at least 1.5 turns before reaching the lower end position. This is generally the case,
if the window height is 5 times greater than the actual shaft diameter.
Example:
60's 8-edge shaft with Zurfluh-Feller lifting catch:
Actual shaft diameter: 9 cm
Rxx/17RF(+) tubular drives are designed exclusively for operating roller shutters. The (RF+) shutter drive may also be used
with mechanical anti-lifting devices (e.g. Zurfluh-Feller, Simu, GAH Alberts or Deprat) as well as security shutters on springs.
These are detected automatically. Other types of fixing (webbing, permanent screwing of the first rod to the barrel) are not
permitted.
If the controls and drives are used for other purposes than those specified above, or if modifications are made to the equipment,
which affect the safety of the system, then the manufacturer or supplier will not accept liability for possible injuries or damages
occurred to persons or to property, nor for any consequential damages.
For operation of the system or repair, the instructions in the operating manual must be observed. In the event of improper
handling, the manufacturer or supplier will not accept liability for possible injuries or damages occurred to persons or to
property, nor for any consequential damages.

Application

min. window height > 45 cm.

Intended Use

Parts and Options

The scope of delivery of the roller shutter drive includes:
• Rxx/17RF(+) roller shutter drive
• Installation and operating instructions
• Alpine white TouchControl transmitter
or
• Cream TouchControl transmitter
Optional:
• Core pins
• Drive adaptor and ring for installation in the barrel
