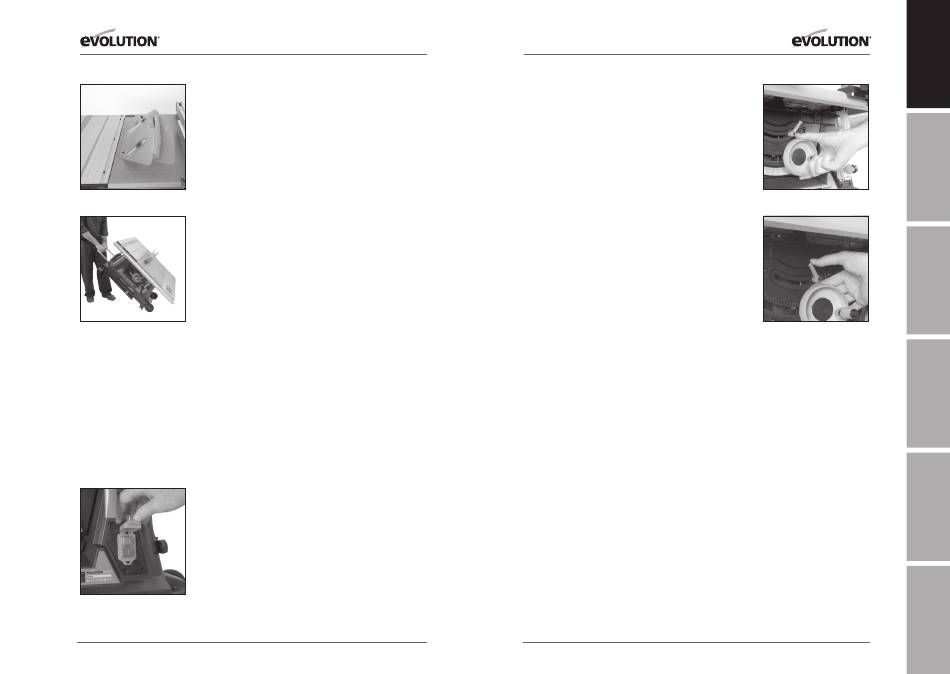

ASSEMBLY & OPERATION
Check the operation of the blade guard. Ensure that it is
working efficiently and covers the blade entirely at the sides
as well as the crown.
Lower the blade a little and recheck that the blade
guard operation.
When satisfied that the blade guard works throughout the
blades height adjustment range, check that the guard works
equally well with the blade set to a bevel angle. (Fig. 9)
Check that when the blade is fully lowered, the blade guard
and side covers are in contact with the table top.
FIG. 9
6. Transporting your Table Saw
WARNING:
This machine is heavy. Enlist competent help
whenever you have to transport this machine.
1. Ensure that the machine is disconnected from the power
supply and that the power cord is securely stored on the machine.
2. Lower the blade completely into the machine so that the
bottom of the blade guard lies flat on the machine table.
1. Remove and store safely any accessories e.g. mitre gauge, push
stick, rip fence etc that are not secured to the machine.
2. Release the legs and fold them and the cantilever braces
FIG. 10
up into the base, securing them with the locking hooks.
Competent help is useful when attempting this and when
lowering the saw to the ground.
3. Pull out the transportation handle, located at the opposite
side of the saw to the transportation wheels.
4. Lift the handle and allow the machines integral
transportation wheels to touch the ground. (Fig.10)
5. Wheel the machine to its new location.
6. Re-commission the machine and reattach the accessories.
OPERATIONS
CONTROLS
1. ON/OFF Safety Switch
WARNING:
Before operating the ON/OFF switch make sure that
the blade guard is correctly installed and operating properly.
To start the machine, press the tab on LH side of the red safety
button and lift it and the switch cover plate upwards to reveal the
on and off buttons. Push the 'ON' button to start the machine and
the 'OFF' button to stop the machine. (Fig.11)
WARNING:
Never start the machine until all safety checks
FIG. 11
and procedures have been carried out.
16
www.evolutionpowertools.com
www.evolutionpowertools.com
ASSEMBLY & OPERATION

2. Raising/Lowering the blade

WARNING
: Only make adjustments to the machine when the
machine is switched OFF and the blade is stationary.
Note: This machine is equipped with a dual function folding
handle hand-wheel. In its 'normal' (outer) position the hand-
wheel is used to raise or lower the blade. When the hand-wheel
is pushed in against its bias spring it engages with the curved
toothed rack incorporated in the machines main body. This
allows the hand-wheel to be used to adjust the tilt/bevel angle
of the blade.
To raise or lower the blade:
Ensure that the hand-wheel is in its 'normal' position.
Turn clockwise to lower the blade. (Fig. 12)
Turn counter clockwise to raise the blade.
3. Tilting the Blade
The blade can be tilted up to 45
0
to the left.
Loosen the tilt locking screw (Fig. 13) by turning the tilt
locking lever.
Push the hand-wheel in against its bias spring until it
engages the tilt rack.
Use the hand-wheel to set the required angle. An angle
gauge to aid setting can be found behind the hand-wheel
Tighten the tilt locking screw when the required angle is
achieved.
Allow the hand-wheel to return to its 'normal' position.
Note: The tilt locking lever is sprung loaded and adjustable.
This enables the lever to be repositioned on the locking screw.
Pull out the lever and move to the desired position.
Release the lever and allow the spring to re-seat the lever.
Repositioning may be necessary to avoid fouling the machines
hand-wheel when the blade is tilted.
17
EN
DE
FIG. 12
ES
FIG. 13
FR
IT
