MAINTENANCE
Note: Use only a genuine Evolution Riving Knife, as this is a
dedicated component for this machine. Non genuine parts could
be dangerous. If in any doubt, please contact the Helpline.

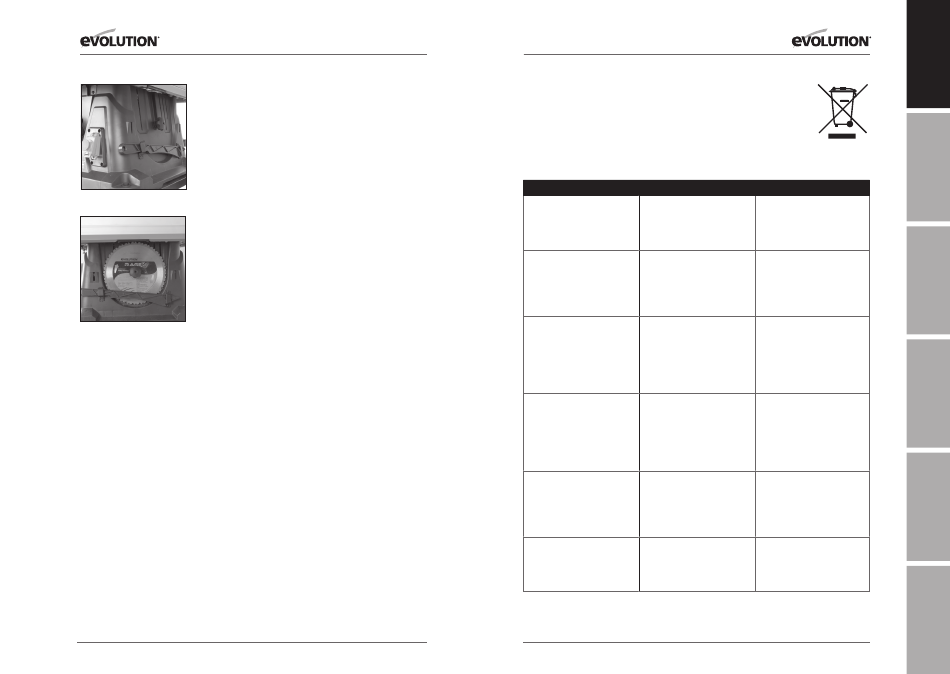

Push Stick
A plastic push stick is provided with the machine and has its
own dedicated storage brackets to the RH side of the machines
main body. (Fig. 42) When not in use store the push stick on
the machine.
Note: If the push stick becomes damaged it should be replaced. If the
FIG. 42
operator makes their own push stick, we recommend that it follows
the same pattern as that supplied. Replacement push sticks are
available from Evolution Power Tools.
Blade Storage
A blade storage facility is available at the RH side of the
machine. (Fig. 43) Undo the centre hand nut and place any
spare blades onto the ø25.4mm metal flange. Secure the blades
with the centre hand nut.
FIG. 43
28
www.evolutionpowertools.com
www.evolutionpowertools.com
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice.
TROUBLE SHOOTING GUIDE
CONDITION
POSSIBLE CAUSE
Machine will not start.
Plug removed from outlet
socket or outlet socket
not switched 'on' .
Sliding Carriage will
Sliding Carriage Locking
not move.
Latch still fully or
partially engaged.
Left Hand Table Extension
One or both (usually
will not deploy.
the rear) of the under-table
locking knobs not
l oosened.
Blade will not rise or fall.
Dual Purpose Rise and
Fall Handle partially engaged
with curved toothed rack.
Blade will not tilt.
Tilt Locking Screw
not loosened.
Over -tightened rear fixing
Blade Guard does not
adjust automatically.
screw and wingnut.
29
EN
DE
ACTION
Replace plug and/or switch
'on' the outlet socket.
Ensure that the Carriage
Locking Latch is completely
ES
disengaged by sliding it
fully to the right.
Ensure that both locking
knobs are sufficiently
loosened. Deploy the table
extension and retighten both
under-table locking knobs.
FR
Ensure that the Handle is
in its outer position. Pull the
Handle out from the machine
slightly to confirm it is deployed
in the outer position.
Loosen the Tilt Locking Screw.
Tilt the blade to the desired
IT
angle and then retighten the
locking screw
Loosen wingnut slightly until
Blade Guard operation is
smooth and satisfactory.
