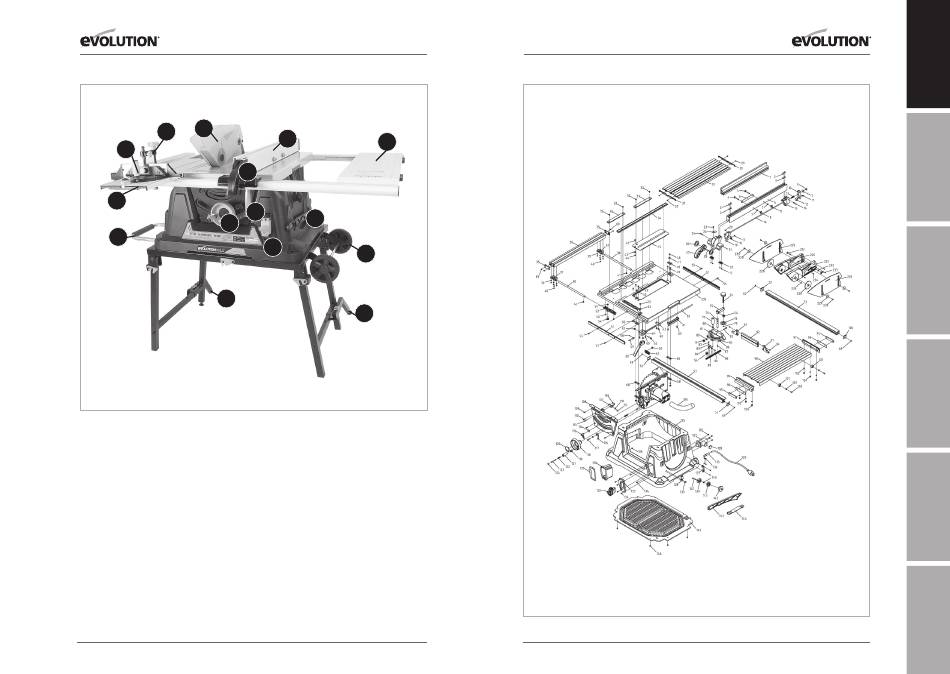

MACHINE OVERVIEW OF EVOLUTION 255mm (10˝) RAGE TABLE SAW
4
9
3
6
2
12
10
7
14
Know your parts
1. On/Off Switch
2. Sliding Carriage
3. Mitre Gauge
4. Blade Guard
5. Rip Fence
6. Rip Fence Locking Handle
7. Transportation Handle
8. Transportation Wheels
9. Hold Down Clamp
10. Dual Function Adjustment Handle
11. RH Table Extension
12. RH Table Locking Lever
13. Push Stick
14. Rear Cantilever Braces
10
www.evolutionpowertools.com
5
11
13
1
8
14
www.evolutionpowertools.com

PARTS DIAGRAM

Parts Diagrams can also be downloaded from www.evolutionpowertools.com
