ASSEMBLY & OPERATION
Note: Each of the fast index screws has been factory set for
angular accuracy. All the index screws can be adjusted if
necessary.

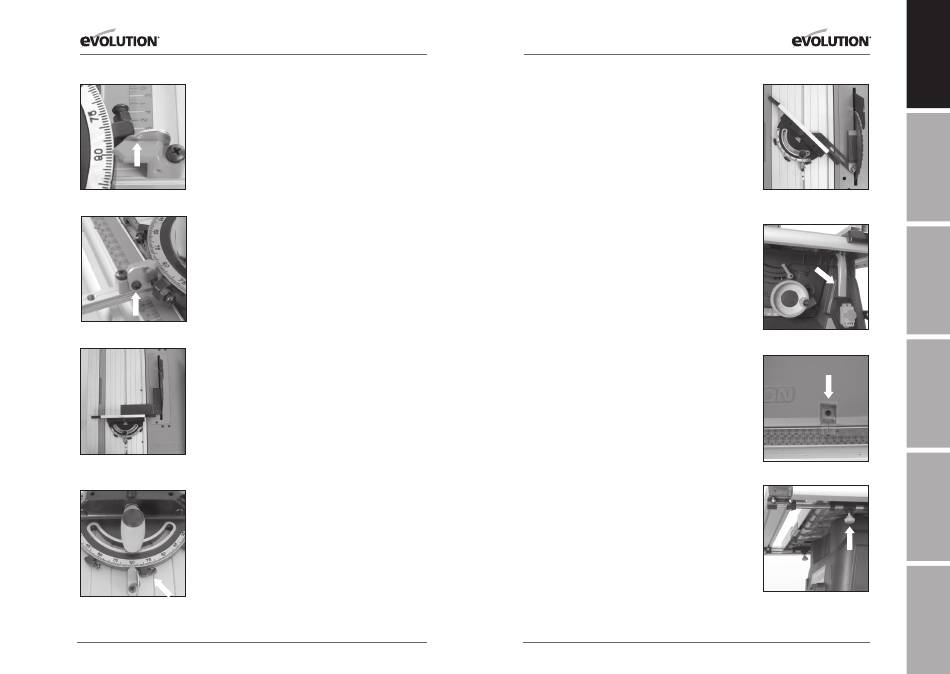

The 'stop plate' should rotate easily. It is important that the
punched swage on the plate (Fig. 21) which prevents it from
being over-rotated and potentially fouling the 'T' slot be
checked and adjusted.
To check and adjust the 'stop plate':
Rotate the 'stop plate' forward.
Visually check that the punched swage is resting upon the
FIG. 21
plastic index pointer preventing over-rotation.
If necessary adjust the 'stop plate' mounting screw so that
plate moves easily and the swage always rests upon but
cannot slide past the plastic index pointer. (Fig. 22)
Index Screw Checking and Adjustment
To check the accuracy of the angular settings the operator will
require an Engineers Square and a 45
WARNING:
Only carry out these procedures with the machine
disconnected from the mains supply.
FIG. 22
To Check 90
Setting (Fig. 23)
0
Raise the blade to its full height.
Place the engineers square on the machine table with one
leg resting accurately against the saw blades body.
Check that the Mitre Gauge is set at 90
Slide the Mitre Gauge into its 'T' slot and slide it up to the
other leg of the engineers square.
The Mitre Gauges Face Plate should index precisely with the
engineers square.
If adjustment is required:
FIG. 23
Loosen the index screws locking nut. (Fig. 24)
(Blade guard removed for clarity)
Turn the index screw clockwise or counter-clockwise until
precise alignment with the engineers square is achieved.
Re-tighten the locking nut.
FIG. 24
20
www.evolutionpowertools.com
0
Square. (Not supplied)
0
.
www.evolutionpowertools.com
ASSEMBLY & OPERATION
To Check 45
Settings
0
Raise the blade to its full height.
Place the 45
square on the machine table with one face
0
resting accurately against the saw blades body. (Fig. 25)
Check that the Mitre Gauge is set at one of the 45
0
Slide the Mitre Gauge into its 'T' slot and slide it up to the
edge of the 45
square.
0
The Mitre Gauge Face Plate should index precisely with the
edge of the 45
square.
0
If adjustment is required follow the instructions as for the
setting of the 90
setting.
0
6. Multi-Function Table Top
This Table Saw is equipped with a versatile table top capable
of various adjustments which are designed to aid operator
efficiency and safety.
Table extensions
The table can be extended to the RH and to the LH side, to
provide extra workpiece support when necessary. Both sides of
the table can be extended at the same time, or just one side at a
time as required operationally.
To extend the table to the RH side:
Pull up the table extension locking lever found just above the
machines ON/OFF switch. (Fig. 26)
Deploy the table extension to give the required workpiece
support.
Push the locking lever down to lock the table in the required
position.
Re-attach and/or adjust the Rip Fence as required.
When cutting is completed return the table to its original
setting.
Note: The Fence Rail will 'travel' with the RH table extension
when it is deployed. A window with datum index line is built
into the front edge of the table to aid setting. (Fig. 27)
To extend the table to the LH side:
Loosen the two locking knobs (one to the front and one
to the rear of the machine) underneath the LH side of the
machines table. (Fig. 28)
Deploy the table extension.
Tighten the locking knobs.
When cutting is completed return the table to its original
setting.
21
settings.
FIG. 25
(Blade guard removed for clarity)
FIG. 26
FIG. 27
FIG. 28
