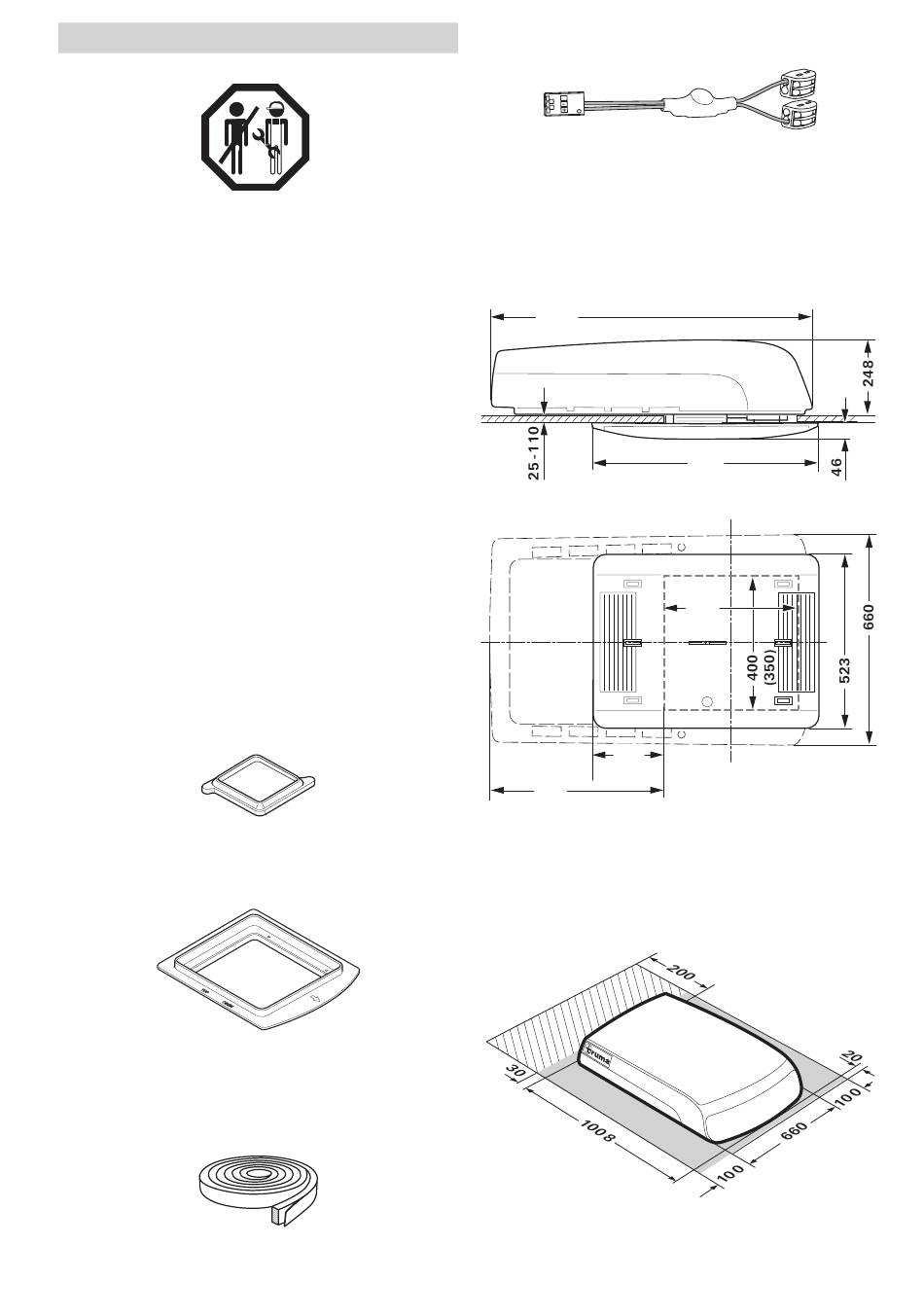

Installation instructions

Figure 1
Only competent and trained staff (experts) are permitted
to install and repair the Truma product and to carry out the
function test, at the same time observing the installation
and operating instructions and the currently recognised
technical regulations. Experts are persons who, based on
their specialist instruction and training, their knowledge and
experience with Truma products and the relevant standards,
can carry out the necessary work properly and identify
potential hazards.

Scope of delivery

External unit:
– 1 Aventa comfort
– 2 brackets
– 4 screws M6 x 70 coated with screw sealant
– 6 screws M6 x 12 coated with screw sealant
– 1 base ring
– 2 roof thickness adapters (each 10 mm)
– 1 remote control with mounting
– 2 screws 2.9 x 16 for mounting
– 2 AAA batteries
– 1 set of operating and installation instructions
– 1 installation template
– 3 Wago clamps
– 1 control panel cable
Air distributor (must be ordered separately)
– 1 air distributor, fully assembled

Accessories for installation (optional)

Roof thickness adapter 10 mm, 1 piece (part no. 40091-16900)
Figure 2
Sealing frame (part no. 40091-19500)
Recommended for optimum sealing when retrofitting in
vehicles with 400 x 400 mm cut-out.
Figure 3
Covering tape
cream
(part no. 40091-31200)
grey
(part no. 40091-31300)
For compensating for a gap of up to 5 mm between air
distributor and roof.
l ~ 2,36 m
Figure 4
12 V adapter for air distributor lighting,
1 piece (part no. 40091-33000).
Figure 5

Intended use

This appliance has been designed for installation in motor
homes and caravans and is intended for private use.

Installation dimensions (in mm)

1008
Figure 6
195
(215)
530
Figure 7

Clearance around the air conditioning system

The clearance around the external unit must be 20 mm at
the front and 100 mm at the side. At least 30 mm of clearance
must be left at the rear. Truma recommends clearance of
200 mm so that the exhaust air can blow out freely.
Figure 8
670
400
(380)
EN
9
