The clearance around the air distributor must allow the air to
blow out without obstructions. The side clearance must be at
least 40 mm. The pivoting range of flaps and doors must be
taken into consideration.

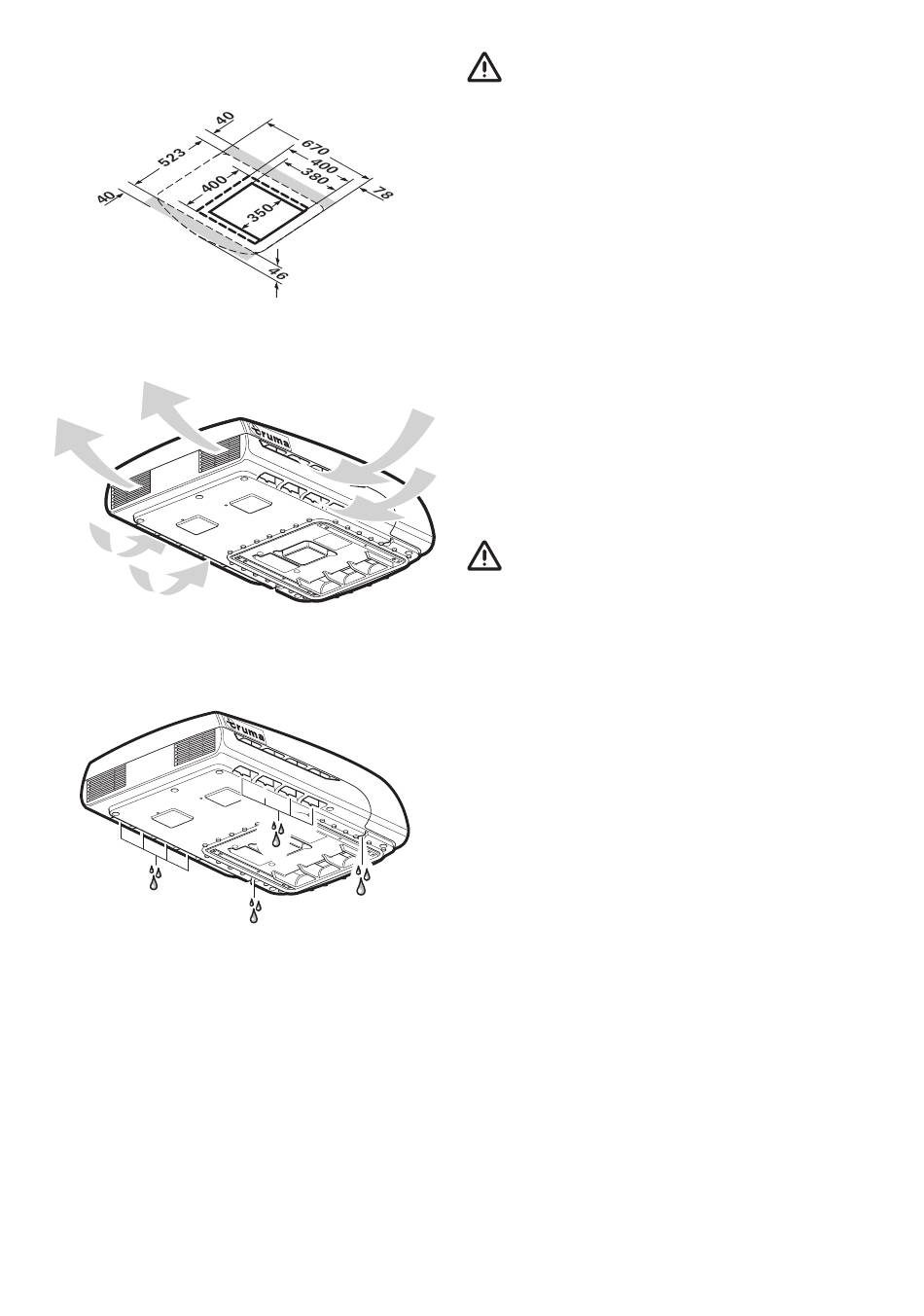

Figure 9

Air inlets / outlets

Figure 10

Condensation traps

The condensation is led away via the roof of the vehicle.
Figure 11
Subject to technical changes.
EN
10

Selecting a location

Once the roof-mounted air conditioning system has
been installed, any nearby exhaust cowl must extend
at least 10 cm above the air conditioning system. The exhaust
cowl must be extended if necessary (pay attention to the
heater manufacturer's specifications).
The roof of the vehicle (roof thicknesses of 25 to 110 mm)
must be level and smooth.
Three installation options are available:
– The cut-out must be a new cut-out (350 x 380 mm).
– Cut-out of an existing roof hatch (400 x 400 mm) without a
sealing frame (accessory).
– Cut-out of an existing roof hatch (400 x 400 mm) with a
sealing frame (accessory). The installation instructions are
included with the sealing frame.
Attention must always be paid to the following points:
– The device should be installed as close as possible to the
centre of the vehicle.
– Check that no obstructions are present that will hinder
installation.
– There may be electrical cables running between the interior
and the exterior of the roof. Disconnect all voltage sources
before starting the work (all poles).
– The roof load must not be exceeded (see vehicle manufac-
turer's specifications).
– Check the interior installation site for obstructions.
– A wooden reinforcing frame (min. 25 mm) must be installed
around the roof cut-out between the upper and lower sur-
faces of the roof. The insulation may have to be removed.
When the skylight with safety ventilation is replaced by
the air conditioning system, it must be ensured that the
safety ventilation is restored in another suitable location.
Control panel cable
To simplify subsequent installation of BUS appliances, feed
the control panel cable that is supplied in the accessory kit
together with the mains cable through the false ceiling.
Fix the free end of the control panel cable to a suitable place,
such as in a wardrobe, as a connection point.
