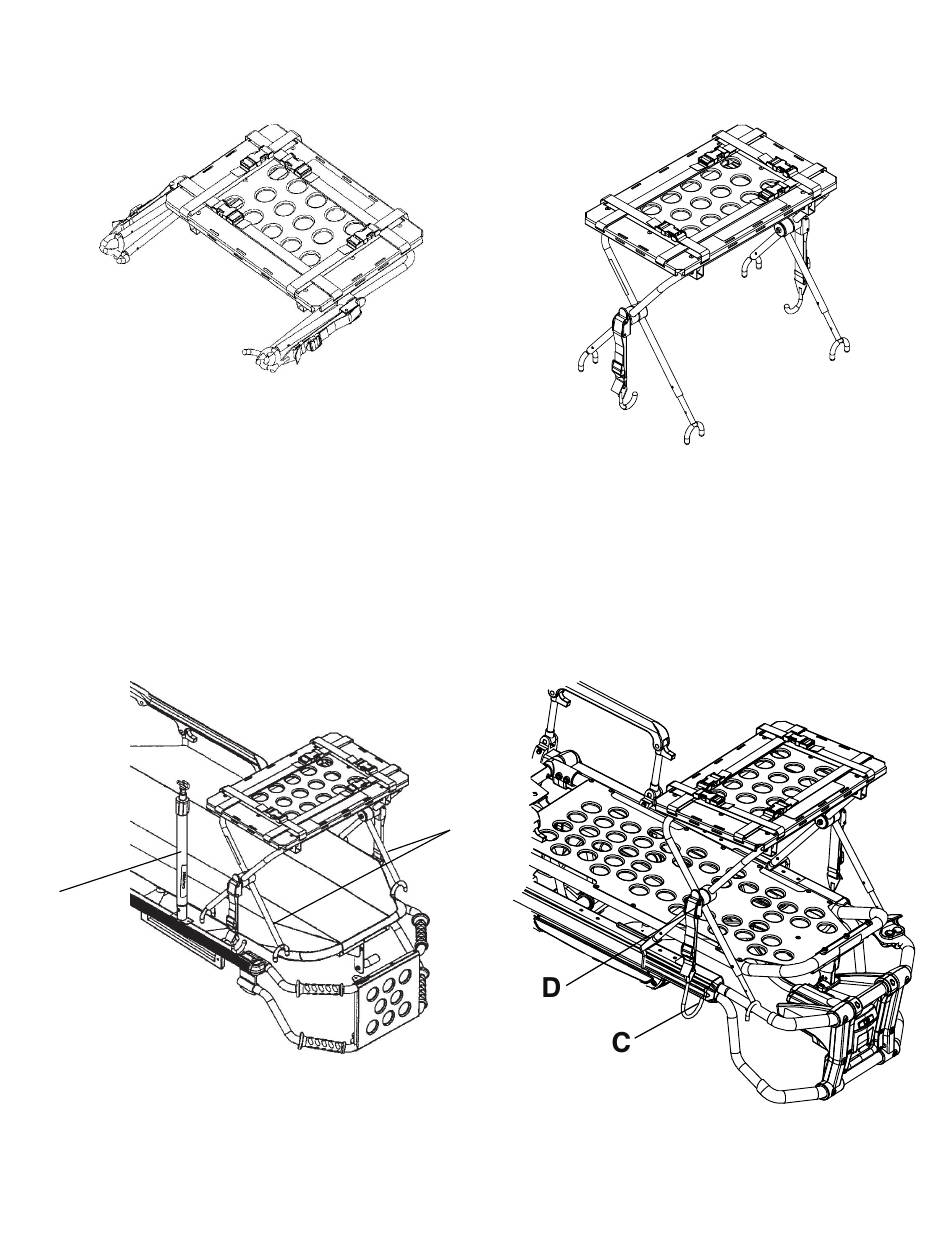

To attach the defibrillator platform:
1. Place the defibrillator platform in the stored position (Figure 16).
2. Open and expand the defibrillator platform legs (Figure 17).
F F i i g g u u r r e e 1 1 6 6 – – S S t t o o r r e e d d p p o o s s i i t t i i o o n n
F F i i g g u u r r e e 1 1 7 7 – – O O p p e e n n d d e e f f i i b b r r i i l l l l a a t t o o r r p p l l a a t t f f o o r r m m l l e e g g s s
3. If the product is equipped with an IV pole, raise the IV pole (A) to the up position (Figure 18).
4. Place the defibrillator platform on the product frame.
5. Position the inside legs (B) of the defibrillator platform toward the head end of the product (Figure 18).
6. Place the latch hook (C) under the litter frame or foot end fastener and push the tab (D) up until it locks into place on one
side with an audible click (Figure 19). Repeat on the other side.
B
A
F F i i g g u u r r e e 1 1 8 8 – – R R a a i i s s e e I I V V p p o o l l e e a a n n d d p p o o s s i i t t i i o o n n d d e e f f i i b b r r i i l l l l a a t t o o r r
t t r r a a y y ( ( M M o o d d e e l l 6 6 5 5 0 0 6 6 s s h h o o w w n n ) )
F F i i g g u u r r e e 1 1 9 9 – – L L a a t t c c h h h h o o o o k k p p l l a a c c e e m m e e n n t t ( ( M M o o d d e e l l 6 6 5 5 0 0 6 6
s s h h o o w w n n ) )
7. Make sure that the defibrillator platform is secured to the product.
6082-209-005 Rev AA.2 27 EN
