FRONTLINE 960 Serie: LQ
9
SCHEMATISCH DIAGRAM
ONDERHOUDS- EN ONDERDELENHANDLEIDING
NL
9.1

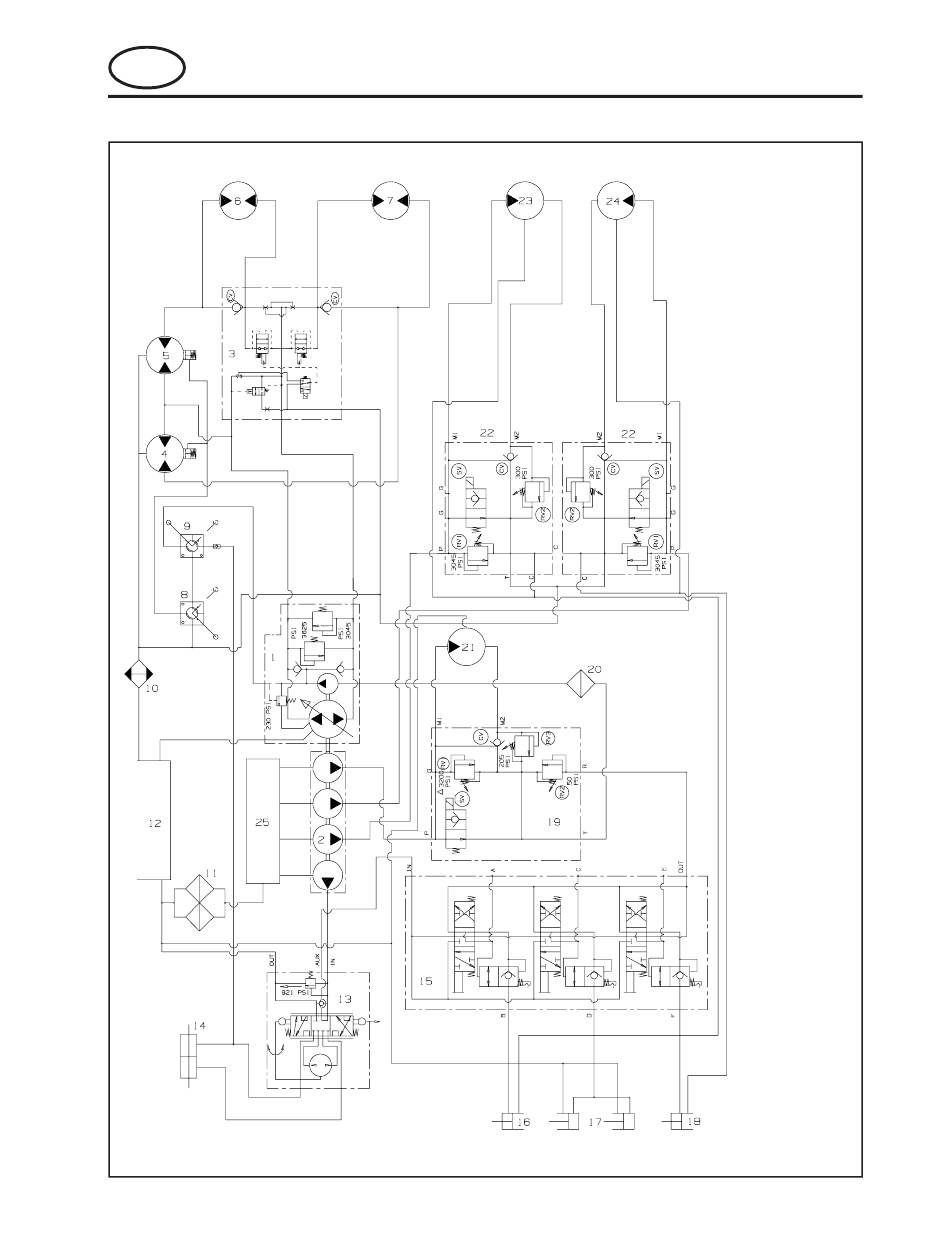

HYDRAULISCH CIRCUIT
1. Transportpomp
2. 4-compartimentenpomp
3. Transmissieklep
4. Motor r.voorwiel
5. Motor l.voorwiel
6. Motor l.achterwiel
7. Motor r.achterwiel
8. Remklep
9. Remhulpklep
10. Oliekoeler
11. Filterkop
12. Reservoir/Tank
13. Stuurklep
14. Stuurplunjer
15. Hefklep
16. R. hefcilinder
17. M. hefcilinders
18. L. hefcilinder
19. Klep voormaaidek
20. Vulfilter
21. Motor voormaaidek
22. Kleppen zijdekken
23. Motor l. maaieenheid
24. Motor r. maaieenheid
25. Inlaatspruitstuk
NL-21
