9 SCHEMATICS
GB

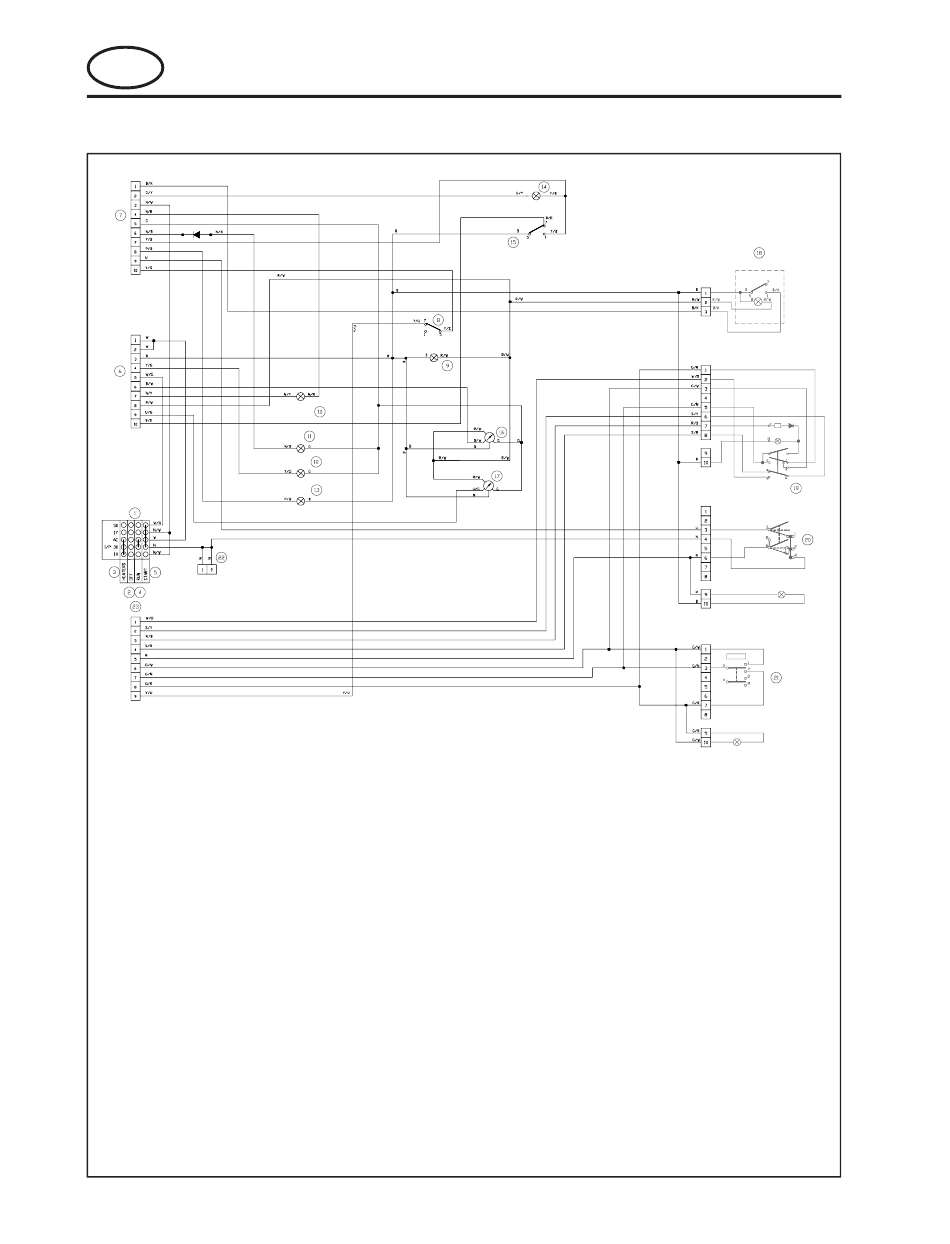

9.2 ELECTRICAL CIRCUIT INSTRUMENT

KEY TO WIRING DIAGRAM

1 Key Switch
2 OFFPosition
3 HEATER Position
4 RUN Position
5 START Position
6 Split to Main Harness No.2
7 Split to Main Harness No.1
8 2WD Switch
9 2WD Lamp
10 Glow Indicator Lamp
11 Battery Lamp
12 Oil Temperature Lamp
13 Oil Pressure Lamp
14 Cutting Deck Switch Lamp
15 Cutting Deck Switch
16 Fuel Guage
17 Temperature Guage
18 Beacon Switch (Optional)
19 Hazard Swicth
20 Lights
21 Direction Indicators
GB-22
All manuals and user guides at all-guides.com
22
23
CABLE COLOUR CODE
R
G
O
S
B
W
K
P
Y
U
N
LG
E.G. R/W = Red/White
FRONTLINE 960 Series: LQ
MAINTENANCE AND PARTS MANUAL
Split to Main Harness No.3
Split to Main Harness No.4
Red
Green
Orange
Grey
Black
White
Pink
Violet
Yellow
Blue
Brown
Light Green
