Table Des Matières; Specifications - Horizon Hobby Apprentice S 2 1.2m Manuel D'utilisation

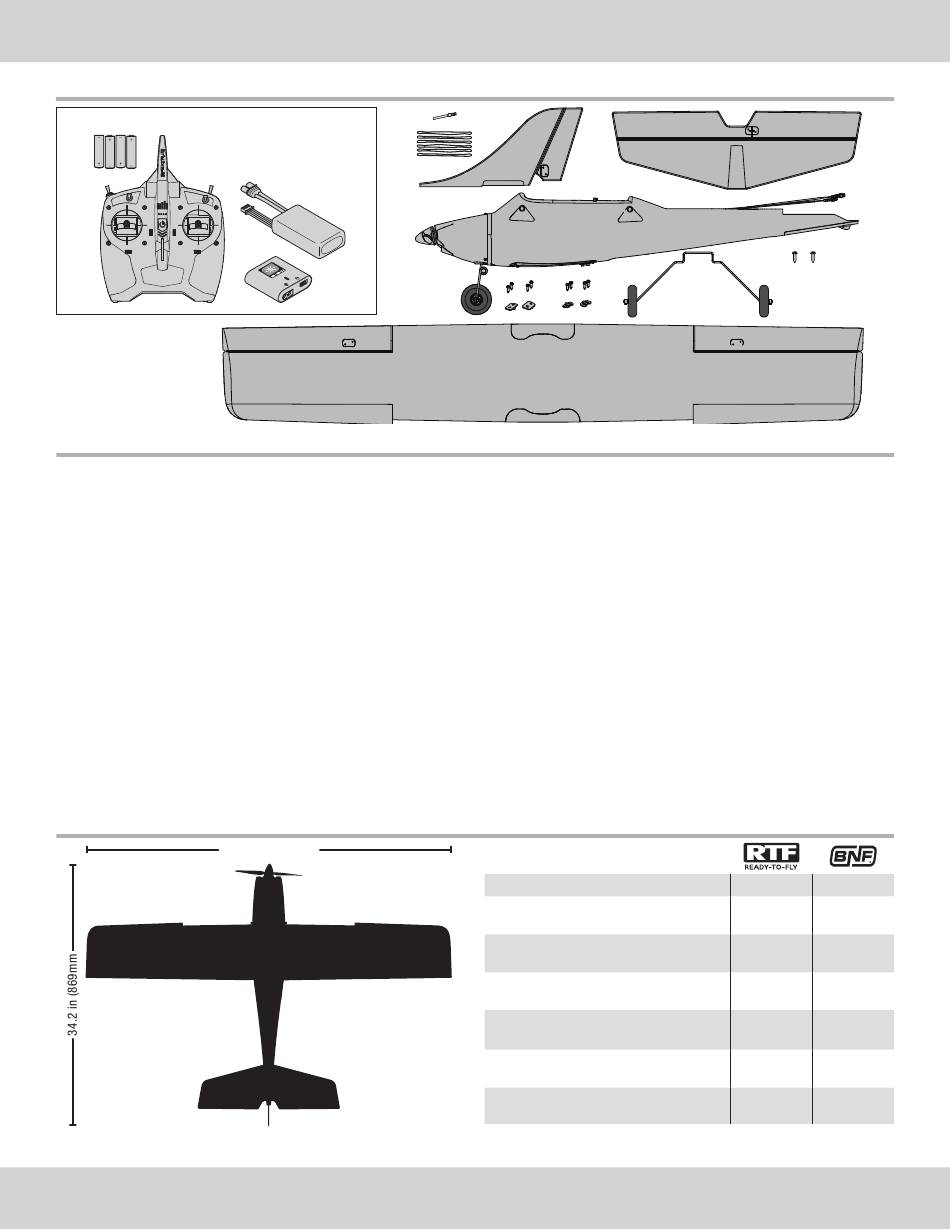

Box Contents
RTF
Table of Contents
Specifications ................................................................................................. 3
Charging Warnings.......................................................................................... 4
Charge the Flight Battery ................................................................................ 4
Installing the Transmitter Batteries (RTF) ......................................................... 5
Turning the Transmitter ON and OFF ................................................................ 5
Transmitter Layout .......................................................................................... 5
Sensor Assisted Flight Envelope (SAFE) Technology ......................................... 6
Hi/Low Rate Switch (Dual Rates) ..................................................................... 7
Binding ........................................................................................................... 8
Assembly ....................................................................................................... 8
Control Horn and Servo Arm Settings .............................................................. 9
Control Surface Centering And Clevis Installation On A Control Horn .............. 10
Installing the Flight Battery and Arming Electronic Speed Control (ESC) ......... 10
LVC (Low Voltage Cutoff) ............................................................................... 11
Center of Gravity (CG) Verification ................................................................. 11
Control Direction Test ................................................................................... 12
Flight Control ................................................................................................ 13
Trimming the Aircraft .................................................................................... 14
Choose a Flying Field .................................................................................... 14
Range Test ................................................................................................... 15
Preflight Checklist ......................................................................................... 15

Specifications

48.0 in (1220mm)
341.80 sq in
(22.05 sq dm)
26.1oz (740g) with recommended battery
22.4oz (639g) without battery
Flying Tips .................................................................................................... 15
Takeoff ......................................................................................................... 16
Flying ........................................................................................................... 17
Landing ........................................................................................................ 17
Post Flight..................................................................................................... 18
Service and Repairs ...................................................................................... 18
Service of Power Components ...................................................................... 19
Optional Floats (Water Takeoff and Landings) ................................................ 19
Optional Transmitter Setup ............................................................................ 20
Trouble Shooting Guide for SAFE Technology ................................................. 20
Trouble Shooting Guide ................................................................................. 21
AMA National Model Aircraft Safety Code ...................................................... 22
Limited Warranty .......................................................................................... 22
Contact Information ...................................................................................... 23
FCC Information ............................................................................................ 23
IC Information ............................................................................................... 23
Compliance Information for the European Union ............................................ 24
Replacement Parts ........................................................................................ 91
Recommended Parts ..................................................................................... 91
Optional Parts ............................................................................................... 91
Motor: 2832-1300Kv 14-pole (SPMXAM1900)
ESC: 30-Amp Telemetry Capable ESC
(EFLA1030FB)
Servos: Ailerons (SPMSA381), Elevator and
Rudder/nose wheel (SPMSA382)
Receiver: AR631 6CH AS3X/SAFE Receiver
(SPMAR631)
Battery: 1300mAh 3S 11.1V Smart 30C LiPo;IC3
(SPMX13003S30M)
Battery Charger: Smart S120 USB-C Charger,
1x20W (SPMXC1020)
Transmitter: Spektrum DXS Transmitter
™
3
EN
Installed Installed
Installed Installed
Installed Installed
Installed Installed
Required to
Included
Complete
Required to
Included
Complete
Required to
Included
Complete
Apprentice S 2 1.2m
®
