Installation

REFRIGERATION LINE SET INSTALLATION

The following requirements assure proper oil return.
The refrigeration line set installer must be certified/
licensed in refrigerant handling and servicing.
!
The ice machine head section contains refrigerant
charge. The ice machine head section contains
refrigeration valves that must remain closed until
proper installation of the line sets is completed.
!
Electrical power to the ice machine head section
and CVD® condensing unit must be disconnected
before proceeding.

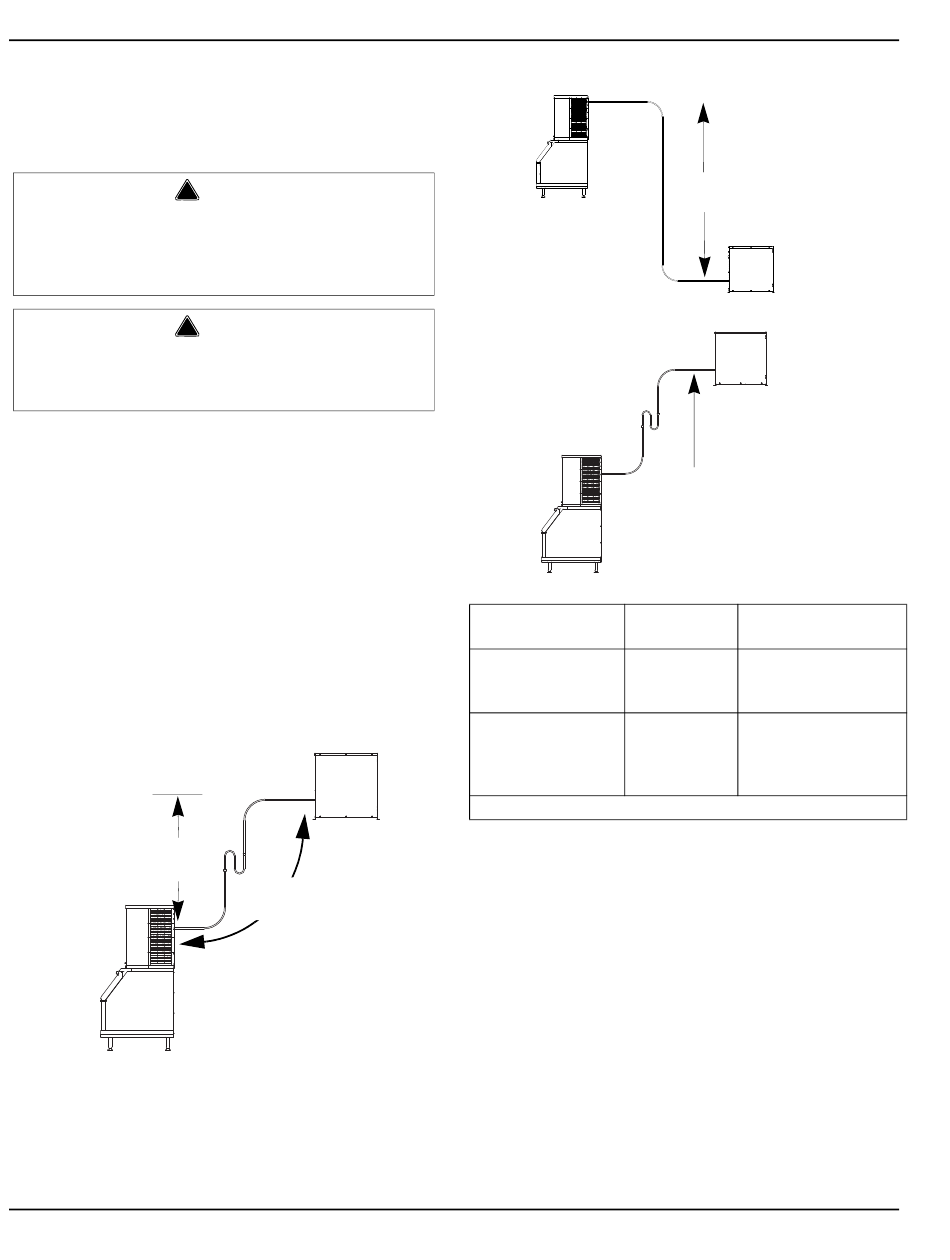

Step 1 Lineset Requirements
Maximum lineset length is 100' (30 m).
Maximum rise is 35' (10 m).
Maximum drop is 15' (4.5 m).
A suction line oil trap is required when rise is more
than 20' (6 m).
Maximum lineset exposed on rooftop is 25% of total
line set length.
Only one trap is allowed in the lineset.
Shorten the lineset as required, do not coil lineset.
A qualified person must perform all roof penetrations
35' (10 M)
MAX.
DISTANCE
12
Warning
Warning
100' (30 M)
MAX LINESET
LENGTH
.
Manitowoc S-Trap Kit
S-Trap Kit
Model
S0600C IB600C
S0800C IB800C
S1000C
IB1000C S1200C
S1470C S1870C
S2170C
S3000C*
*S3000C - requires two S-Trap kits, one for each suction line.
Step 2 Secure Condenser
Through holes are provided to secure the condenser to
a curb, rack, or wooden timber.
Step 3 Route Refrigeration Tubing
Properly route refrigeration tubing between the ice
machine head section and the CVD® condensing unit.
The line set can be routed for entry through the top or
rear of the ice machine head section.
Top routing requires the cover to be trimmed.
Rear routing may require the use of 90° elbows.
Section 2
15' (4.5 M)
MAX.
DISTANCE
MORE THAN 20' (6 M) RISE
S-TRAP KIT REQUIRED
Tubing Size
Number
5/8 inch
K00172
(15.9 mm)
3/4 inch
K00166
(19.1 mm)
Part Number 000006505 12/10
