5.6.2

Connection examples for the peripherals

Current outputs (including HART communication)

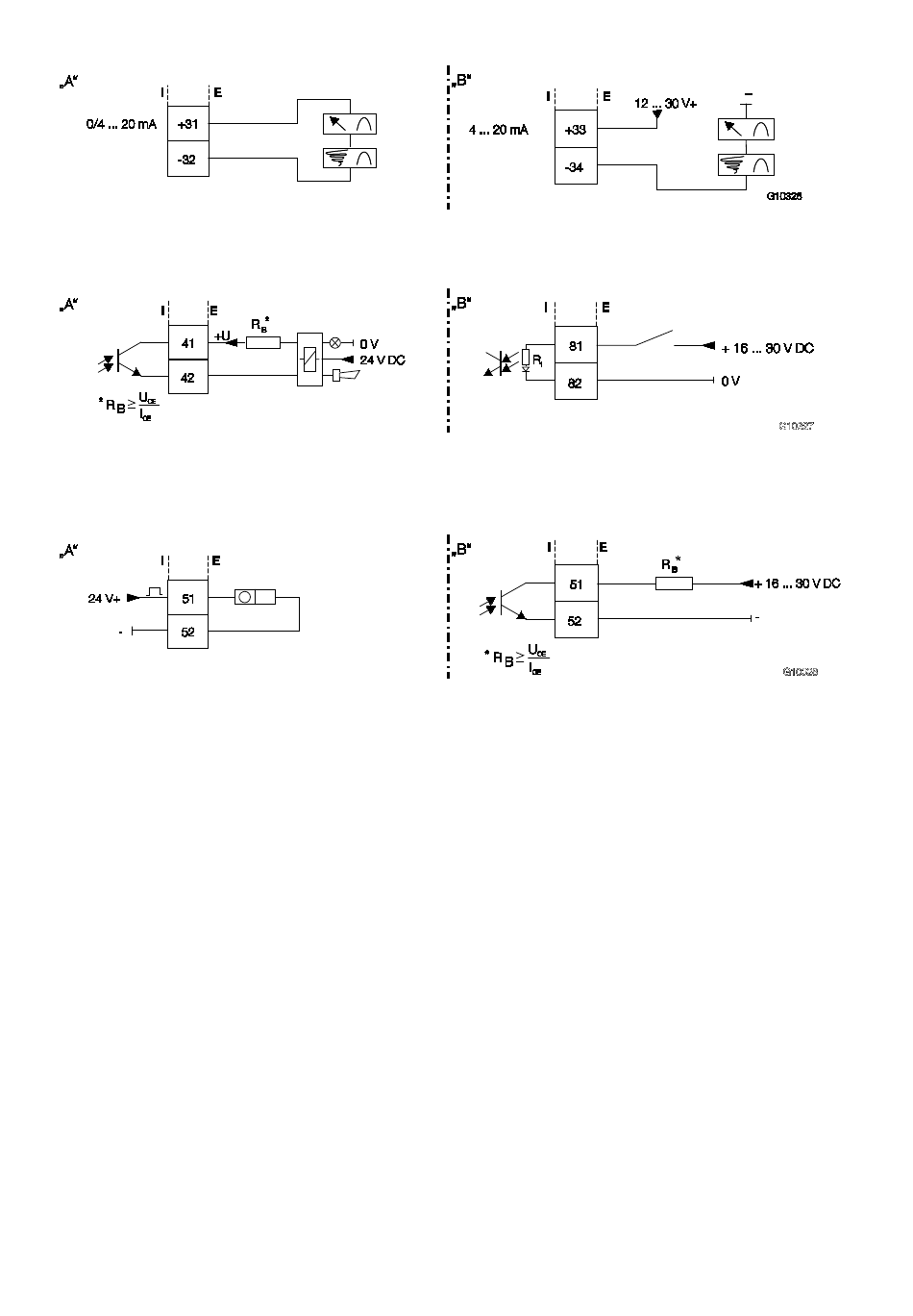

Fig. 21: Active / passive current outputs
"A" Active | "B" Passive | I Internal | E External
Digital switching output and digital switching input
Fig. 22
"A" Output for system monitoring, min. / max. alarm for empty meter tube or forward / reverse signal |
"B" Input for external totalizer reset or external output zero return | I Internal | E External
Pulse output
Fig. 23: Active / passive pulse output
"A" Active | "B" Passive (optocoupler) | I Internal | E External
24 - EN CI/FCB300/FCH300-X1 Rev. F | CoriolisMaster FCB330, FCB350, FCH330, FCH350
