Installation options

The output pressure of 30 mbar (yellow type plate) on
the gas pressure regulation system must correspond
with the operating pressure of the installed equipment.
Please be sure to note the position of the tank fittings before
installation! Truma has 2 variants (90° and 105°) for instal-
lation with 30 mbar.
90°
Figure 4
The MonoControl CS must be installed in such a way that
the triggering element (Figure 5 – A) is always in a vertical
position.
Figure 5
A crash sensor that is not installed vertically cannot be
properly restored to its required original position. This
can lead to false activation.
16
105°
A

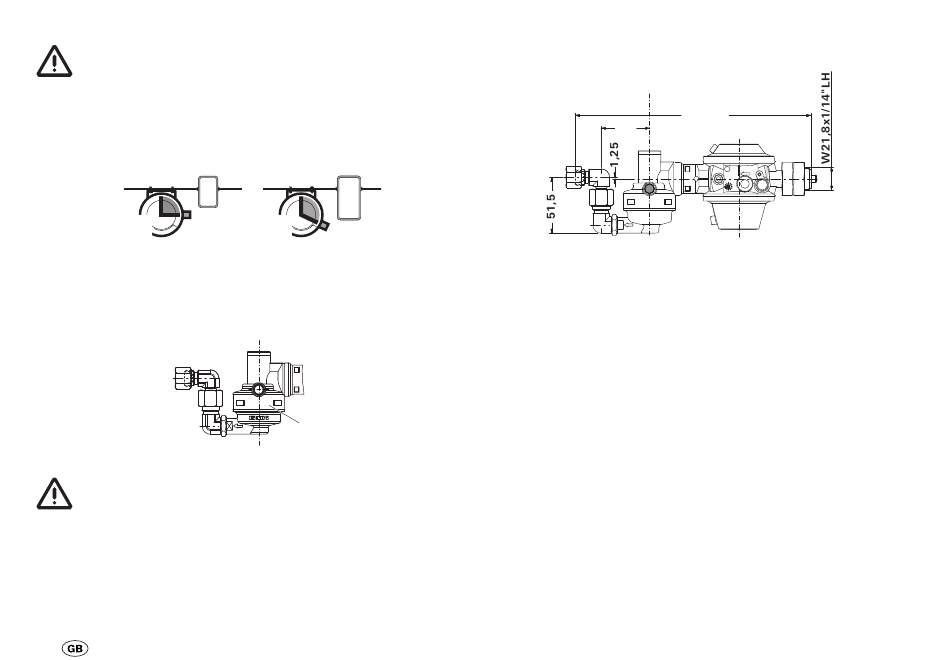

Installation dimensions

A
44
Figure 6 – Dimensions in mm. Not shown to scale
~ 208
