When it is being used outdoors, the MonoControl CS
must be protected from the elements and dripping
water with a protection hood.
Choose a suitable position for the MonoControl CS, in particular:
– Type plate legible
– Reset button recognisable and easy to access
– Avoid damage during cylinder replacement
– Make it difficult for gas in the liquid phase to penetrate the
regulation system
– Allow enough room to retrofit the DuoComfort
– Route the high‑pressure hose without tension.
– Fasten to a stable wall / ceiling with 2 screws.
Ensure that it is firmly attached.
– Connect the Ø 8 mm or 10 mm gas supply line to the regu‑
lator outlet in accordance with the respective installation in‑
structions for olive screw connections (e.g. EN ISO 8434‑1).
When tightening, carefully use a second spanner on the provid‑
ed spanner surfaces to keep the entire assembly from turning.
– Using an elbow union (a) if necessary (see "Accessories"), at‑
tach the high pressure hose (only with a hose rupture protec‑
tion device) to the inlet of the gas pressure regulation system.

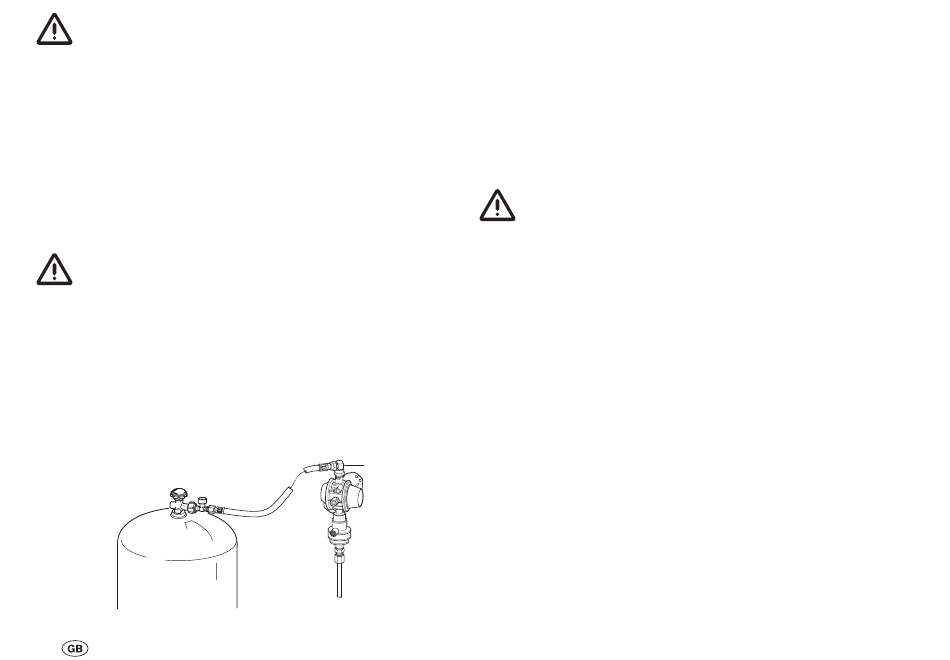

Figure 5
18
– Check the hose connection at the inlet of the MonoControl CS
for leaks (e.g. using a leak‑finder spray in accordance with
EN 14291).
– When installation is complete, have the entire gas system
inspected by a specialist technician to check for leaks and
correct installation.
– If a gas testing certificate has already been issued, it must
be supplemented / updated accordingly.
This test does not replace the regularly scheduled gas
check!
– All functions must then be tested in accordance with the
operating instructions.
– The operating instructions must be given to the operator.
Sticker
– The provided sticker must be affixed in the cylinder box.
a
