– Depending on the version, the MonoControl CS must be fit‑
ted to a stable wall in a vertical position or to the top of the
gas cylinder box in a horizontal position. The triggering el-
ement (Figure 3 – A) must always be in a vertical position.
– Attention must be paid to the installation position.

Protection against dirt / oil

A Truma gas filter must be installed in front of the gas press‑
ure regulation system inlet in order to reliably protect it
against dirt / oil. A set of operating and installation instruc‑
tions is supplied with the gas filter.

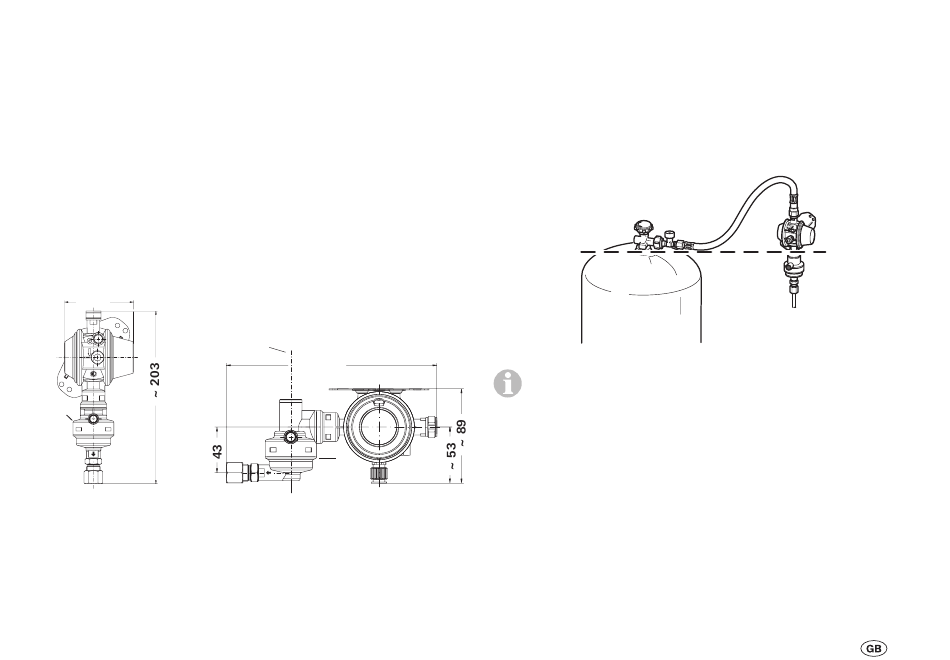

Installation dimensions

~ 80
A
Figure 3 Dimensions in mm. Not shown to scale
A
~ 198

MonoControl CS installation and connection

The MonoControl CS must be installed in such a way that
the high‑pressure hose connection is in the highest possible
location, which must be at least higher than the cylinder valve
level (broken line).
The high‑pressure hose must slope downwards all the way to
the cylinder valve.
Figure 4
Installation above the cylinder valve makes it more diffi‑
cult for gas in the liquid phase to penetrate the low press‑
ure section, particularly while driving.
The MonoControl CS is connected to the high‑pressure line
via the M20 x 1.5 (G.13) male thread on the inlet side and is
connected to the gas pipe via an 8 mm or 10 mm olive screw
connection (H.9) on the outlet side.
The enclosed Z 10 / RVS 8 adapter (for retail only) must be
used with 30 mbar systems with 8 mm gas pipes.
The MonoControl CS is intended for installation in the gas cyl‑
inder box of the caravan or motor home.
17
