Installation Instructions
1e
45mm
2
(1-3/4")
2
2
Example Only
(Interface bracket
varies dependent
on projector model)
1
2
4
(A)
5

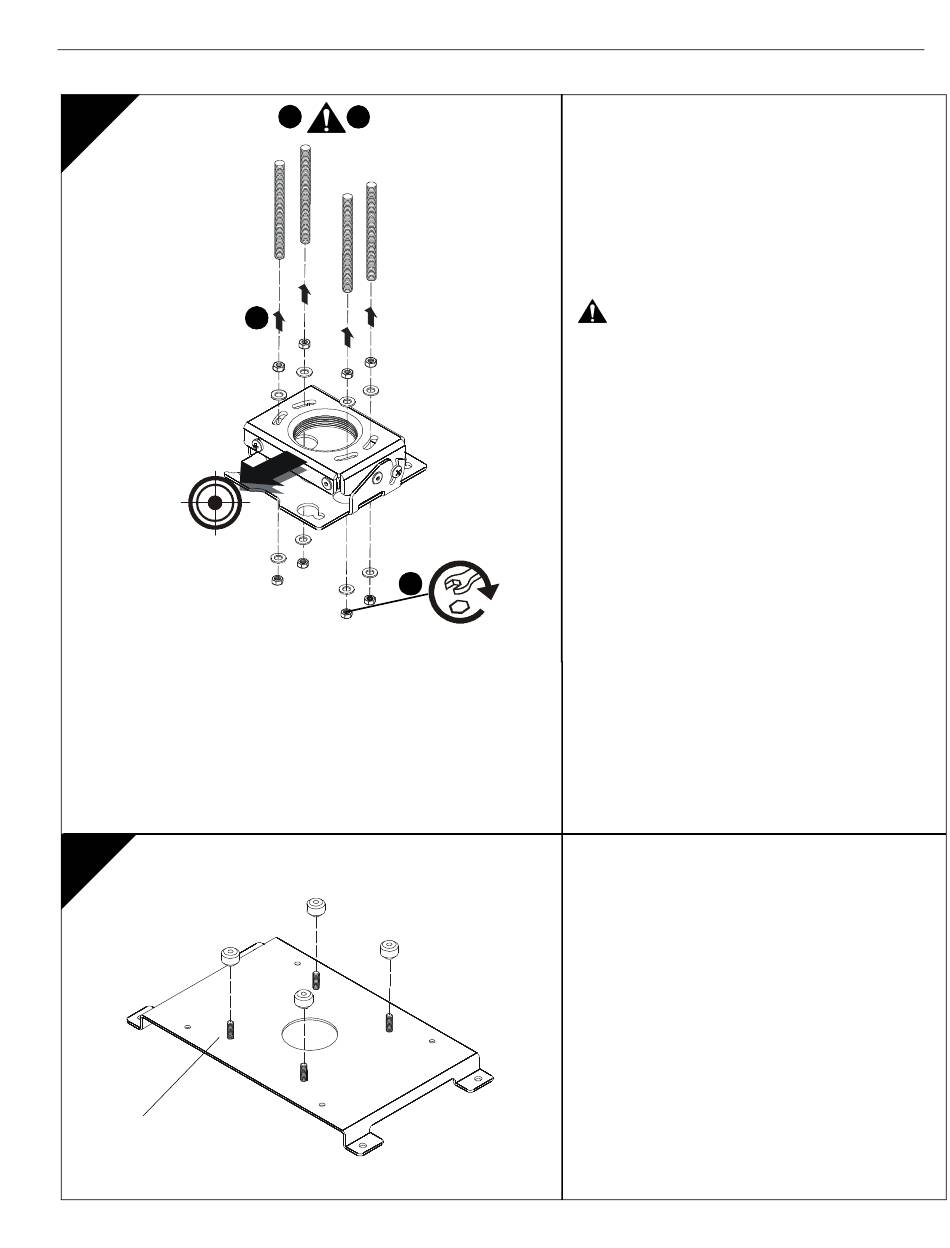

Threaded Rod Installation
NOTE:
CPA adapter must be removed prior to
installing RSME to threaded rods. See Section
1a for details.
The RSE must be suspended from four #10-24
diameter (minimum) threaded rods (not included) which
are secured to unistrut, angle or channel assembly
overhead structural members (trusses or I-beams) by
#10-24 channel nuts (not included).
WARNING:
RESULT IN SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! Structural members
Ø 2.5mm
MUST be capable of supporting five times the
combined weight of all equipment being mounted.
1.
Carefully determine required mount position.
(Ø 3/32")
IMPORTANT ! : This will require knowing the lens
to screen distance. See projector specifications
for determining this distance.
NOTE:
Threaded rod and installation hardware not
included.
2.
Secure one end of the threaded rod to the structural
member.
X 4
3.
Install four #10-24 jam nuts on each threaded rod.
4.
Install the RSE on the threaded rod.
NOTE:
Hole in the RSE allows socket wrench access
without unit disassembly.
5.
Secure the RSE to the threaded rod using four #10
channel nuts.
PROJECTOR INSTALLATION
IMPORTANT ! : Model RSE uses optional Chief
"SSB" Series interface brackets. (See Parts
drawing.)
Install Interface Bracket
1.
Partially thread thumb nuts onto Phillips screws until
screw end is visible in top of thumb screw.
IMPORTANT ! : DO NOT fully tighten thumb
screws at this time.
IMPROPER INSTALLATION CAN
RSE
9
